Littelfuse 8SHT 151 E Microprocessor Neutral Grounding Resistor Monitor for Electrical System Safety
Littelfuse 8SHT 151 E Microprocessor Neutral Grounding Resistor Monitor for Electrical System Safety
Littelfuse 8SHT 151 E Microprocessor Neutral Grounding Resistor Monitor for Electrical System Safety
Littelfuse 8SHT 151 E Microprocessor Neutral Grounding Resistor Monitor for Electrical System Safety
Littelfuse 8SHT 151 E Microprocessor Neutral Grounding Resistor Monitor for Electrical System Safety
Littelfuse 8SHT 151 E Microprocessor Neutral Grounding Resistor Monitor for Electrical System Safety
Specifications
Description :
Current Transformers RoHS
Mfr. Part # :
8SHT-151-E
Model Number :
8SHT-151-E
Description

The SE-330HV is a microprocessor-based neutral-grounding-resistor (NGR) monitor designed to detect NGR failures and ground faults in resistance-grounded systems. It offers advantages over traditional grounded systems by reducing ground-fault flash hazards and minimizing point-of-fault damage. The SE-330HV is suitable for modern resistance-grounded systems, including alarm-only and tripping systems, and is compatible with specific sensing resistors and current transformers for comprehensive monitoring.

Product Attributes

  • Brand: Littelfuse Startco
  • Model: SE-330HV
  • Origin: Printed in Canada
  • Copyright: 2017

Technical Specifications

SectionDetails
GeneralModern Resistance-Grounded Systems, SE-330HV NGR Monitoring
OperationSettings (GF Trip Time, GF Trip Level, VN Trip Level, Configuration Settings, Resistor-Fault Trip Time, Resistor-Fault Trip Level, Geo-Magnetic Filter), Calibration, Trip Indication and Reset, Remote Operation, Relay K1 LED, Unit Healthy Output, Diagnostic LED, Analog Output

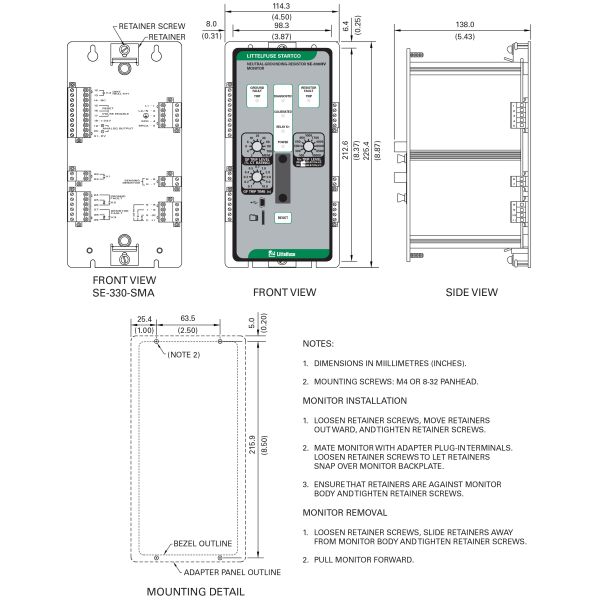

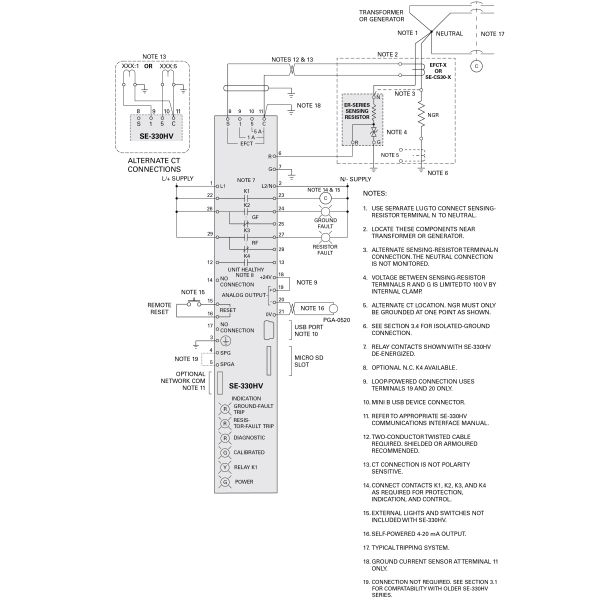

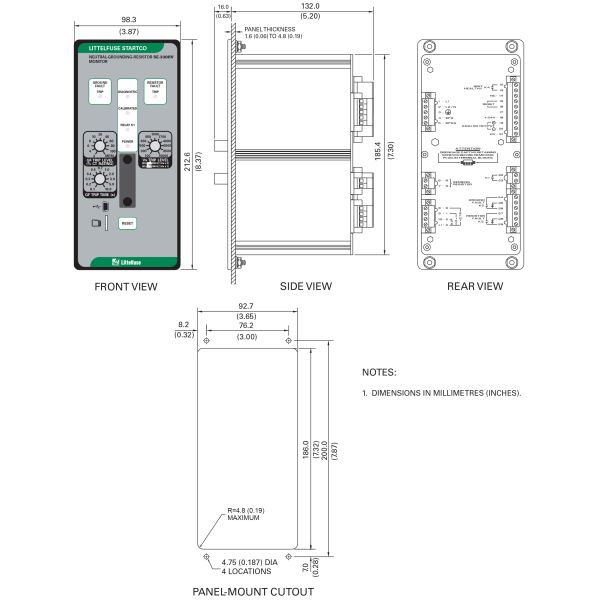

InstallationSE-330HV, Sensing Resistor, Ground-Fault CT, Isolated Ground Connection
Data InterfacesSD Card (Datalogging, Firmware Upgrade), USB Interface, Network Communications
TroubleshootingProvided
WarrantyProvided
Test ProceduresResistor-Fault Tests (Calibration and Open Test, Voltage Test), Sensing-Resistor Test, Analog-Output Test, Ground-Fault Performance Test
AppendixSE-330HV Revision History
