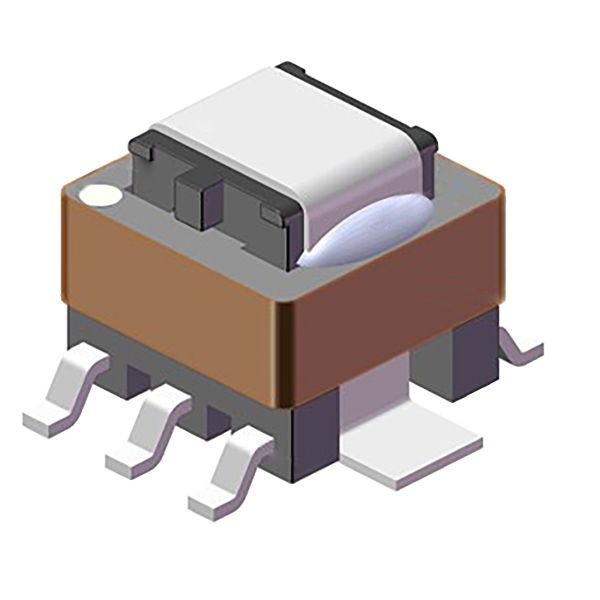

Signal SCS Series High Frequency SMD Current Sensing Transformers

Product Overview

The Signal SCS Series offers a new line of high-frequency Surface Mount Device (SMD) current sensing transformers. These components are designed for non-invasive detection of current flow in application conductors, providing accurate current sensing in power supply circuits, safety circuits, and control circuits. They are a cost-effective, low-loss solution for measuring currents in high-frequency voltage regulators and switch-mode power supplies. Applications include feedback control, load drop/shutdown protection, safety/control circuits, and DC-to-DC converters/chargers.

Product Attributes

• Brand: Signal Transformer
• Series: SCS
• Technology: Surface Mount Technology (SMT)
• Core Material: EE Core
• Compliance: RoHS Compliant
• Customization: Custom versions available upon request

Technical Specifications

General Features:

• Very low DC resistance
• Different turns ratios available
• Designed for automatic pick and place

Operating Parameters:

• Frequency Range: 50 kHz to 1 MHz
• Sensed Current Primary Rating: Up to 10 Amps
• Temperature Rise: Primary current of 10 A causes less than 40C temperature rise above 25C ambient. Higher current causes increased temperature rise.
• Operating Temperature Range: -40 C to +125 C
• Storage Conditions: If preserved for more than 1 year below 35 C and 35-65% humidity, solderability may deteriorate.

Tape and Reel Specifications:

• Reel Quantity: 1000 pcs
• Tape Trailer Length: 160~220 mm
• Tape Leader Length: 388~428 mm
• Tape & Reel Standard: Compliant with EIA -481
• Storage Period Note: Less than 12 months recommended, follow storage conditions (10-30C, 35-65% RH or less).

Mechanical Specifications (SCS Series):

Applications:

• Switching power supplies
• Feedback control
• Overload sensing
• Motor control
• Load drop/shut down detection
