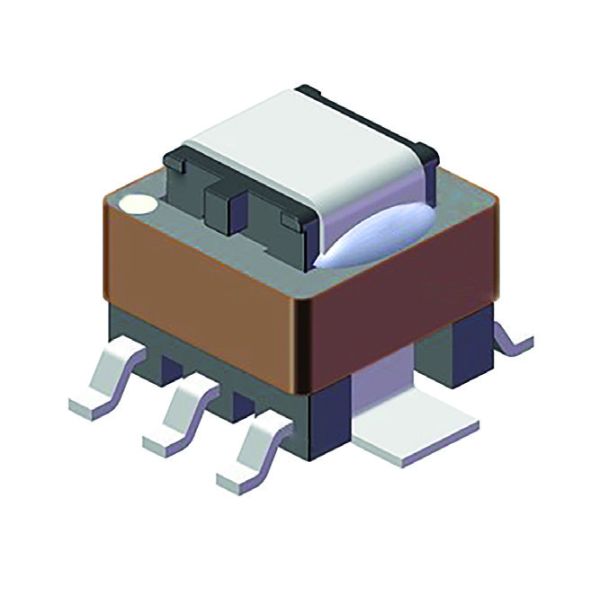

SMD Current Transformer Bel Fuse SCS-30180 for Accurate Current Sensing in Switch Mode Power Supplies
SMD Current Transformer Bel Fuse SCS-30180 for Accurate Current Sensing in Switch Mode Power Supplies
SMD Current Transformer Bel Fuse SCS-30180 for Accurate Current Sensing in Switch Mode Power Supplies
SMD Current Transformer Bel Fuse SCS-30180 for Accurate Current Sensing in Switch Mode Power Supplies
SMD Current Transformer Bel Fuse SCS-30180 for Accurate Current Sensing in Switch Mode Power Supplies
SMD Current Transformer Bel Fuse SCS-30180 for Accurate Current Sensing in Switch Mode Power Supplies
Specifications
Rated input Current :
10A
Frequency Range :
50kHz~1MHz
DCR Primary Side (Max) :
700mΩ
Description :
10A 50kHz~1MHz SMD-8P,8.4x8mm Current Transformers RoHS
Mfr. Part # :
SCS-30180
Model Number :
SCS-30180
Package :
SMD-8P,8.4x8mm
Description

Product Overview

The Bel Fuse SCS Series High Frequency SMD Current Sensing Transformers are a new line of surface mount components designed for accurately detecting current flow in application conductors. They offer a non-invasive method for sensing current in power supply circuits, safety circuits, and control circuits. These transformers are ideal for applications such as feedback control, load drop/shutdown protection, safety/control circuits, and DC to DC converters/chargers. They provide a cost-effective, low-loss solution for measuring currents in high-frequency voltage regulators and switch-mode power supplies.

Product Attributes

  • Brand: Bel Fuse (Signal Transformer)
  • Technology: Surface Mount Technology (SMT)
  • Core Material: EE Core
  • Compliance: RoHS Compliant
  • Customization: Custom versions available upon request

Technical Specifications

Specification Details
Series SCS
Type Surface Mount Devices
Core Size 5.0
Frequency Range 50 kHz to 1 MHz
Sensed Current Primary Rating Up to 10 Amps
Temperature Rise Less than 40C above 25C ambient at 10A primary current. Higher current causes increased temperature rise.
Operating Temperature Range -40 C to +125 C
Storage Conditions Below 35 C and 35-65% humidity for more than 1 year may deteriorate solderability.
General Features Very low DC resistance, Different turns ratios, Designed for automatic pick and place
Electrical Specifications (measured at 25C unless otherwise stated)
Part Number Turns Ratio (Sec : Pri) Secondary Inductance @ 100 kHz, 0.1V (uH) Min Max. Sec DCR () Pri Ref Max (m) Hi-Pot Pri-Sec (VAC) Primary Current (A) Max.
SCS-2080 20:1 80 0.40 0.70 500 10
SCS-30180 30:1 180 0.87 0.70 500 10
SCS-40320 40:1 320 1.14 0.70 500 10
SCS-50500 50:1 500 1.85 0.70 500 10
SCS-60730 60:1 730 2.30 0.70 500 10
SCS-70980 70:1 980 4.75 0.70 500 10
SCS-1002K 100:1 2000 5.50 0.70 500 10
SCS-1253K 125:1 3000 11.5 0.70 500 10
Temperature Rise vs Current Graph provided shows temperature rise in C against DC Current in Amps.
Mechanical Dimensions (SCS Series) A Max B Max C Max D 0.3 E 0.1 F 0.2 G 0.2
8.38 8.0 5.5 185 0.6 0.25 0.7
Schematic Pad Layout Diagram provided shows pinout and pad layout.
Tape and Reel Specifications Carrier tape width: 12.0mm, 16.0mm. Reel diameter: 330mm. Each reel: 1000 pcs. Tape trailer: 160~220 mm. Tape leader: 388~428 mm. Compliant with EIA-481.

Applications

  • Switching power supplies
  • Feedback control
  • Overload sensing
  • Motor control
  • Load drop/shut down detection
