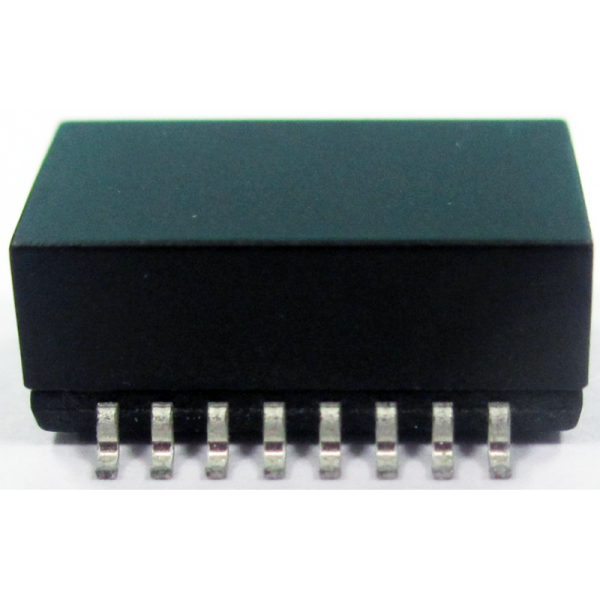

ABRACON ALAN 134 T Ethernet transformer providing signal conditioning and compatibility with PHY ICs
ABRACON ALAN 134 T Ethernet transformer providing signal conditioning and compatibility with PHY ICs
ABRACON ALAN 134 T Ethernet transformer providing signal conditioning and compatibility with PHY ICs
ABRACON ALAN 134 T Ethernet transformer providing signal conditioning and compatibility with PHY ICs
ABRACON ALAN 134 T Ethernet transformer providing signal conditioning and compatibility with PHY ICs
ABRACON ALAN 134 T Ethernet transformer providing signal conditioning and compatibility with PHY ICs
Specifications
Inductance :
350uH
Operating Temperature :
-40℃~+85℃
Turns Ratio :
1CT:1CT
Description :
1CT:1CT SMD-16P,12.7x6.9mm Pulse Transformers RoHS
Mfr. Part # :
ALAN-134-T
Model Number :
ALAN-134-T
Package :
SMD-16P,12.7x6.9mm
Description

Product Overview

The ALAN-134 is a single-port LAN transformer designed for 10/100 Base-T Ethernet applications, featuring Auto MDI/MDIX capability and an extended temperature range (-40C to +85C). It is engineered to provide signal conditioning, EMI suppression, and signal isolation, making it compatible with leading PHY IC manufacturers. This transformer is ideal for use in VoIP, Hubs, Switches, Routers, Servers, and NIC Cards, meeting IEEE802.3 specifications.

Product Attributes

  • Brand: ABRACON
  • Model: ALAN-134
  • Certifications: ISO9001:2008 Certified, RoHS Compliant
  • Temperature Rating: ROHS peak reflow temperature rating 240C

Technical Specifications

Specification Minimum Typical Maximum Units Notes
Dimensions 12.70 x 9.40 x 5.40 mm
Operating Temperature -40 +85 C
Storage Temperature -40 +85 C
Turn Ratio 1CT:1CT 2%
Inductance (OCL) 350 H 100KHz/0.1V@8mA
Leakage Inductance (LL) 0.5 H 100KHz/0.1V
Cw/w 30 pF 100KHz/0.1V
DC Resistance 1.2
Insertion Loss -1.0 dB 0.3-100MHz
Return Loss -18 dB 2-30MHz
Cross Talk -55 dB 0.3MHz
Differential to Common Mode Rejection -30 dB 1-100MHz
Common Mode Rejection -37 dB 1-60MHz
Common Mode Rejection -25 dB 60-200MHz
Hi-Pot 1500 Vrms
Packing Option I 700 pcs / reel Weight: 0.7 grams / pcs
Packing Option II 36 pcs / tube Weight: 0.7 grams / pcs

2411272317_ABRACON-ALAN-134-T_C6858987.pdf
