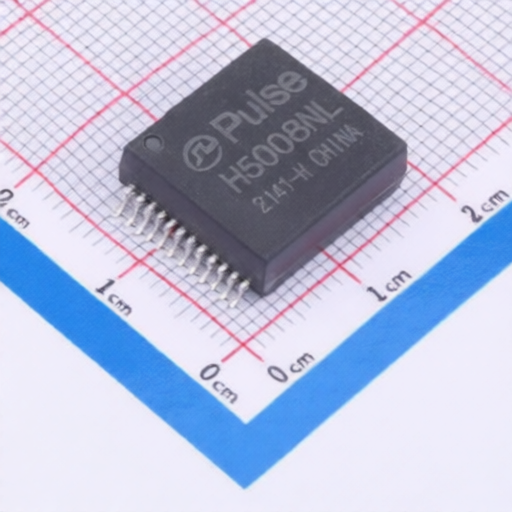

8 Position Connector Featuring Gold Plated Bronze Contacts and Solder Termination PULSE H5008NL for Electrical
8 Position Connector Featuring Gold Plated Bronze Contacts and Solder Termination PULSE H5008NL for Electrical
Specifications
Inductance :
350uH
Turns Ratio :
1CT:1CT
Operating Temperature :
0℃~+70℃
Description :
1CT:1CT SMD-24P,18.9x13.7mm Pulse Transformers RoHS
Mfr. Part # :
H5008NL
Model Number :
H5008NL
Package :
SMD-24P,18.9x13.7mm
Description

Product Overview

The H5008NL is a component designed for integration into various systems, offering specific electrical and physical characteristics. Its intended use and advantages are derived from its technical specifications and attributes, making it suitable for applications requiring its defined performance parameters.

Product Attributes

  • Brand: Bel
  • Series: H5008NL

Technical Specifications

Specification Value
Product Type Connector
Number of Positions 8
Termination Style Solder
Contact Material Bronze
Contact Plating Gold
Current Rating 1.5 A
Voltage Rating 125 VAC
Operating Temperature -40C to 85C
Insulation Resistance 1000 M min.
Dielectric Withstanding Voltage 500 VAC RMS
Dimensions (L x W x H) 23.11 mm x 15.24 mm x 7.62 mm

2410010032_PULSE-H5008NL_C6798294.pdf
