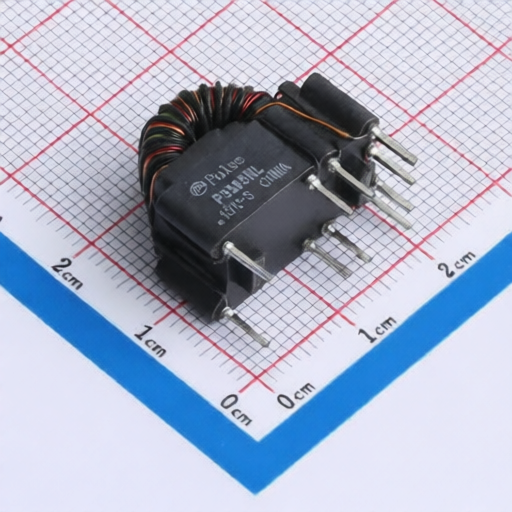

Industrial Grade Transformer PULSE P0585NL Featuring Reinforced Insulation and Safety Certifications
Industrial Grade Transformer PULSE P0585NL Featuring Reinforced Insulation and Safety Certifications
Specifications
Isolation Voltage(Vrms) :
3kV
Inductance :
450uH
Turns Ratio :
1:1:1:1:1
Operating Temperature :
-40℃~+125℃
Description :
450uH LAN Transformer 1:1:1:1:1 Through Hole,20.6x12.2mm
Mfr. Part # :
P0585NL
Model Number :
P0585NL
Package :
Through Hole,20.6x12.2mm
Description

Product Overview

The Pulse Electronics High Isolation Gate Drive Transformers are designed for rugged industrial applications. These transformers offer high isolation, with options up to 4250Vrms gate to drive isolation, and are compliant with various international safety standards including IEC 60950, IEC 61558, IEC 61010, and IEC 60601 reinforced insulation compliant designs. They are suitable for applications requiring reliable gate drive with enhanced safety and isolation.

Product Attributes

  • Brand: Pulse Electronics
  • Certifications: UL recognized, TUV approved to IEC 60950
  • Insulation: Reinforced insulation compliant designs
  • NL Versions: TUV certified, 600Vrms isolation rating between drive and gate windings. Use triple insulated Teflon wire on the drive winding and magnetic wire on the gate windings.
  • ANL Versions: Compliant with IEC 61558, IEC 61010 & IEC 60601. Use triple insulated wire on both drive and gate windings. 1000Vrms isolation rating between all windings except those terminate to pins 5 & 6.
  • Origin: Country of Origin (Not specified in detail for specific models)

Technical Specifications

Part Number Turns Ratio ET (V * µsec MAX) Primary Inductance (1-10) (µH MIN) Leakage Inductance Gate to Drive (µH MAX) DCR Drive (1-10) (mΩ ±20%) DCR Gates (mΩ ±20%) Hi-Pot Drive-Gate (Vrms) Hi-Pot Gate-Gate (Vrms) Operating Temperature
P0584NL 1:1:1 92 450 0.5 80 72 3000 1500 -40°C to +125°C
P0585NL 1:1:1:1:1 92 450 1.3 330 180 3000 1500* -40°C to +125°C
P0584ANL 1:1:1 114 686 0.8 710 710 4250 1500 -40°C to +125°C
P0585ANL 1:1:1:1:1 114 686 2.2 710 710 4250 1500* -40°C to +125°C
Model Series Pins Weight Tray Quantity Dimensions (Inches) Dimensions (mm)
P0584NL/P0584ANL 6 5 grams 80/tray .130 (3.30) x .750 MAX (19.05) x .810 MAX (20.57) x .480 MAX (12.19) .130 (3.30) x .750 MAX (19.05) x .810 MAX (20.57) x .480 MAX (12.19)
P0585NL/P0585ANL 10 5 grams 80/tray .130 (3.30) x .750 MAX (19.05) x .810 MAX (20.57) x .480 MAX (12.19) .130 (3.30) x .750 MAX (19.05) x .810 MAX (20.57) x .480 MAX (12.19)

Notes on Specifications:

  • The max ET is calculated to limit the core loss and temperature rise at 100KHz based on a bipolar flux swing of 180mT Peak. The applied ET may need to be derated for higher frequencies based on the temperature rise which results from the core and copper losses.
  • Temperature rise calculation formulas provided for total copper loss, total core loss, and temperature rise.
  • 500Vrms Hi-Pot between pins 5 & 6 for NL versions.
  • * 500Vrms Hi-Pot between pins 5 & 6 for P0585NL and P0585ANL.

2410301753_PULSE-P0585NL_C7323632.pdf
