SMD LAN transformer module ABRACON ALAN110001-4J41DT designed for 10 100 1000 Base T Ethernet connections
SMD LAN transformer module ABRACON ALAN110001-4J41DT designed for 10 100 1000 Base T Ethernet connections
Specifications
Inductance :
350uH
Operating Temperature :
-40℃~+85℃
Turns Ratio :
1CT:1CT
Description :
1CT:1CT SMD-24P,15.5x14mm Pulse Transformers RoHS
Mfr. Part # :
ALAN110001-4J41DT
Model Number :
ALAN110001-4J41DT
Package :
SMD-24P,15.5x14mm
Description

Product Overview

The ALAN110001 is a single-port SMD LAN transformer module designed for 10/100/1000 Base-T Ethernet applications. It supports Power Over Ethernet (PoE) up to 30 Watts and offers a current capability of up to 350 mA per pair. This module features high-performance magnetics for effective EMI suppression and common mode noise rejection. It is compatible with major Ethernet ICs and suitable for a wide range of networking and communication devices, including hubs, servers, switches, routers, access points, IP cameras, industrial computers, and broadcast video equipment.

Product Attributes

  • Brand: ABRACON
  • Product Type: POE 10/100/1000 BASE-T Single Port SMD LAN Transformer Module
  • Certifications: RoHS/RoHS II Compliant, ISO9001-2015 Certified
  • Moisture Sensitivity Level (MSL): 1
  • PoE Standard Compliance: IEEE 802.3af

Technical Specifications

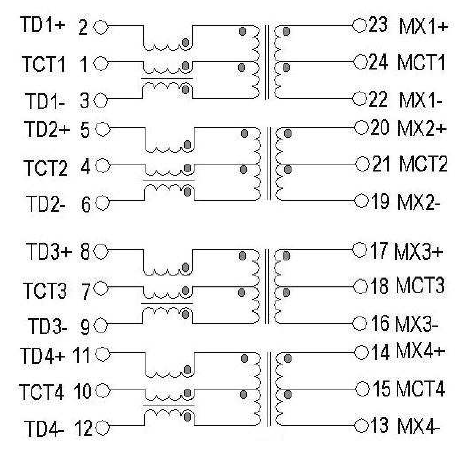

Part Number Package Size Operating Temp. Dimensions (mm) Weight (g) Insertion Loss (dB Max) 1-100 MHz Return Loss (dB Min) 1-30 MHz Crosstalk (dB Min) 100 MHz CMRR (dB Min) 100 MHz DCMR (dB Min) 100 MHz Inductance (uH Min) Leakage Inductance (uH Max) Interwinding Capacitance (pF Max) DC Resistance ( Max) Hi Pot (Vrms) 6 sec. Standard Current (mA Max) Voltage (V) Power Delivered per Port (W Max)
ALAN110001-3J11 3: 24-Pin Option 1 J: -40 C to +105 C 18.3 x 16.5 x 6.4 2.1 1.0 18 10 35 30 350 0.5 35 1.0 1500 350 @ 57 V 57 30
ALAN110001-3J41 3: 24-Pin Option 1 J: -40 C to +105 C 18.3 x 16.5 x 6.4 2.1 1.0 18 10 35 30 350 0.5 35 1.0 1500 350 @ 57 V 57 30
ALAN110001-3J61 3: 24-Pin Option 1 J: -40 C to +105 C 18.3 x 16.5 x 6.4 2.1 1.0 18 10 35 30 350 0.5 35 1.2 1500 350 @ 57 V 57 30
ALAN110001-4J11 4: 24-Pin Option 2 J: -40 C to +105 C 19.5 x 13.9 x 5.7 1.75 1.0 18 10 35 30 350 0.5 35 1.0 1500 350 @ 57 V 57 30
ALAN110001-4J41 4: 24-Pin Option 2 J: -40 C to +105 C 19.5 x 13.9 x 5.7 1.75 1.0 18 10 35 30 350 0.5 35 1.0 1500 350 @ 57 V 57 30
ALAN110001-4J61 4: 24-Pin Option 2 J: -40 C to +105 C 19.5 x 13.9 x 5.7 1.75 1.0 18 10 35 30 350 0.5 35 1.2 1500 350 @ 57 V 57 30

Packaging

Package size option 3: 24-Pin Option 1

  • Tape and Reel: 400 pcs/reel
  • Pieces per Carton: 3,200
  • T&R per Carton: 8
  • Weight per Carton: 11.5 kg
  • Weight per Piece: 2.1 g
  • Dimension of the carton: 365 x 365 x 350 mm

Package size option 4: 24-Pin Option 2

  • Tape and Reel: 550 pcs/reel
  • Pieces per Carton: 4,400 pcs/box
  • T&R per Carton: 8
  • Weight per Carton: 12.7 kg
  • Weight per Piece: 1.75 g
  • Dimension of the carton: 365 x 365 x 350 mm
