Ethernet LAN Transformer ABRACON ALAN 102 T 10 100 Base T with Signal Conditioning and Isolation
Ethernet LAN Transformer ABRACON ALAN 102 T 10 100 Base T with Signal Conditioning and Isolation
Ethernet LAN Transformer ABRACON ALAN 102 T 10 100 Base T with Signal Conditioning and Isolation
Ethernet LAN Transformer ABRACON ALAN 102 T 10 100 Base T with Signal Conditioning and Isolation
Ethernet LAN Transformer ABRACON ALAN 102 T 10 100 Base T with Signal Conditioning and Isolation
Ethernet LAN Transformer ABRACON ALAN 102 T 10 100 Base T with Signal Conditioning and Isolation
Specifications
Inductance :
350uH
Operating Temperature :
-40℃~+85℃
Turns Ratio :
1CT:1CT
Description :
1CT:1CT Pulse Transformers RoHS
Mfr. Part # :
ALAN-102-T
Model Number :
ALAN-102-T
Description

Product Overview

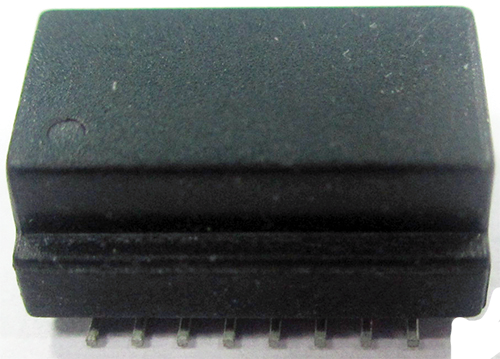

The ABRACON ALAN-102 is a 10/100 Base-T Single Port LAN Transformer designed for Ethernet-LAN applications, including VoIP and Power Over Ethernet (PoE). It features symmetrical Tx & RX channels for Auto MDI/MDIX capability, providing signal conditioning, EMI suppression, and signal isolation. This transformer is designed for extended temperature operation (-40C to +85C) and meets IEEE802.3 specifications, including IEEE802.3at compliant performance for PoE. It is compatible with leading PHY IC manufacturers such as Broadcom, Marvell, Micrel, and Microsemi, making it suitable for use in Hubs, Switches, Routers, Servers, and NIC Cards.

Product Attributes

  • Brand: ABRACON
  • Model: ALAN-102
  • Certifications: ABRACON IS CERTIFIED, ABRACON IS ISO9001:2008 CERTIFIED
  • Compliance: RoHS/RoHS II Compliant, IEEE802.3 specification, Power Over Ethernet(PoE)IEEE802.3at compliant
  • Temperature Rating: ROHS peak reflow temperature rating 245C

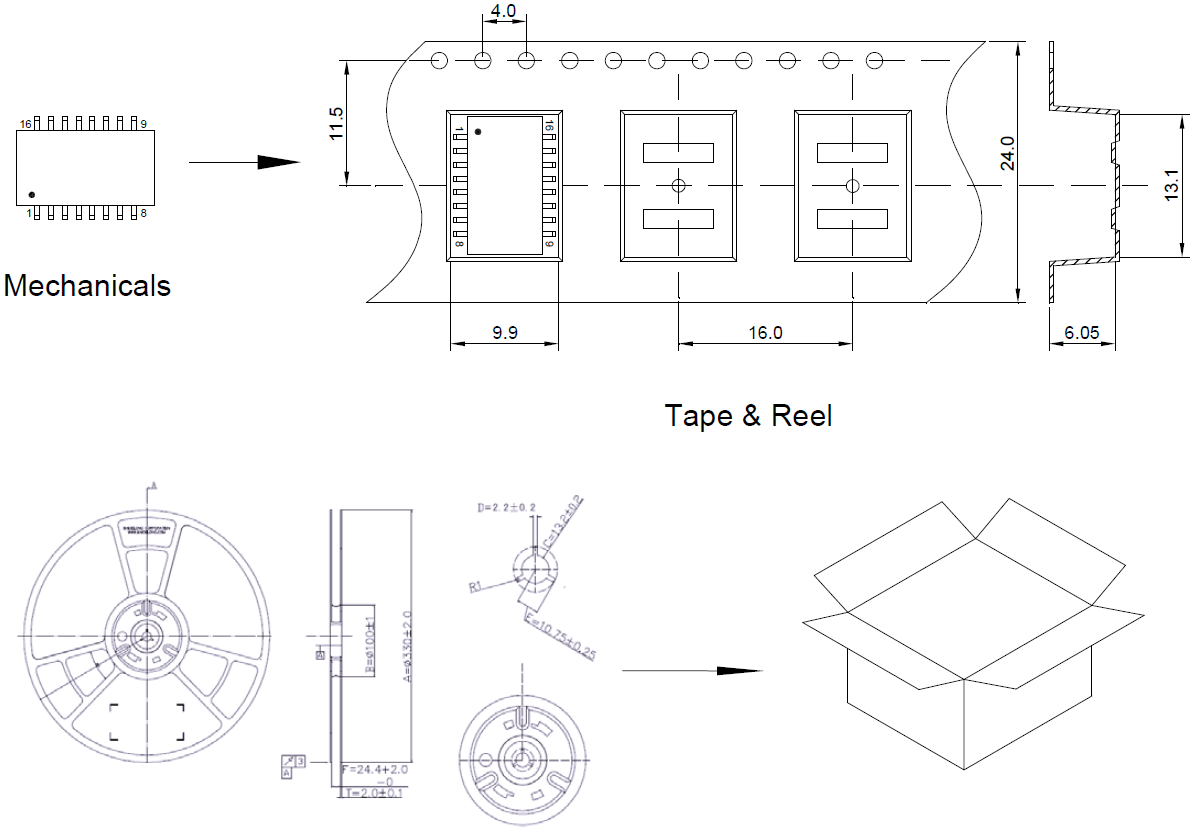

  • Packaging Option I: 700 pcs / reel (Weight: 0.7 grams / pcs)
  • Packaging Option II: 36 pcs / tube (Weight: 0.7 grams / pcs)

Technical Specifications

Parameter Minimum Typical Maximum Units Notes
Dimensions 12.70 x 9.40 x 5.70 mm (Unless otherwise specified, tolerances are 0.01/0.25)
Operating Temperature -40 +85 C
Storage Temperature -40 +85 C
Turn Ratio 1CT:1CT ( 2%)
Inductance (OCL) 350 H 100KHz/0.1V@8mA
Leakage Inductance (LL) 0.4 H 100KHz/0.1V
Cw/w 25 pF 100KHz/0.1V
DC Resistance 1.5
Insertion Loss -1.1 dB 0.3-100MHz
Return Loss -20 dB 30MHz
Cross Talk -45 dB 30MHz
Differential to Common Mode Rejection -42 dB 30MHz
Common Mode Rejection -30 dB 1-100MHz
PoE Current Capacity 350 mA
Hi-Pot 1500 Vrms
