Specifications
Inductance :
350uH
Operating Temperature :
-40℃~+85℃
Turns Ratio :
1CT:1CT
Description :
1CT:1CT Pulse Transformers RoHS
Mfr. Part # :
ALAN-102
Model Number :
ALAN-102
Description

Product Overview

The ALAN-102 is a 10/100 Base-T single-port LAN transformer with PoE capabilities, designed for extended temperature operation (-40C to +85C). It provides signal conditioning, EMI suppression, and signal isolation, making it suitable for applications such as hubs, switches, routers, servers, and NIC cards. This transformer is compliant with IEEE 802.3 specifications and Power Over Ethernet (PoE) IEEE 802.3at standards. It features symmetrical Tx & RX channels for Auto MDI/MDIX capability and is designed for compatibility with leading PHY IC manufacturers including Broadcom, Marvell, Micrel, and Microsemi.

Product Attributes

  • Brand: ABRACON
  • Model: ALAN-102
  • Certifications: ABRACON IS CERTIFIED, ABRACON IS ISO9001:2008 CERTIFIED
  • Compliance: RoHS/RoHS II Compliant, IEEE802.3, IEEE802.3at
  • Temperature Rating: Extended Temperature (-40C - +85C), RoHS peak reflow temperature rating 245C

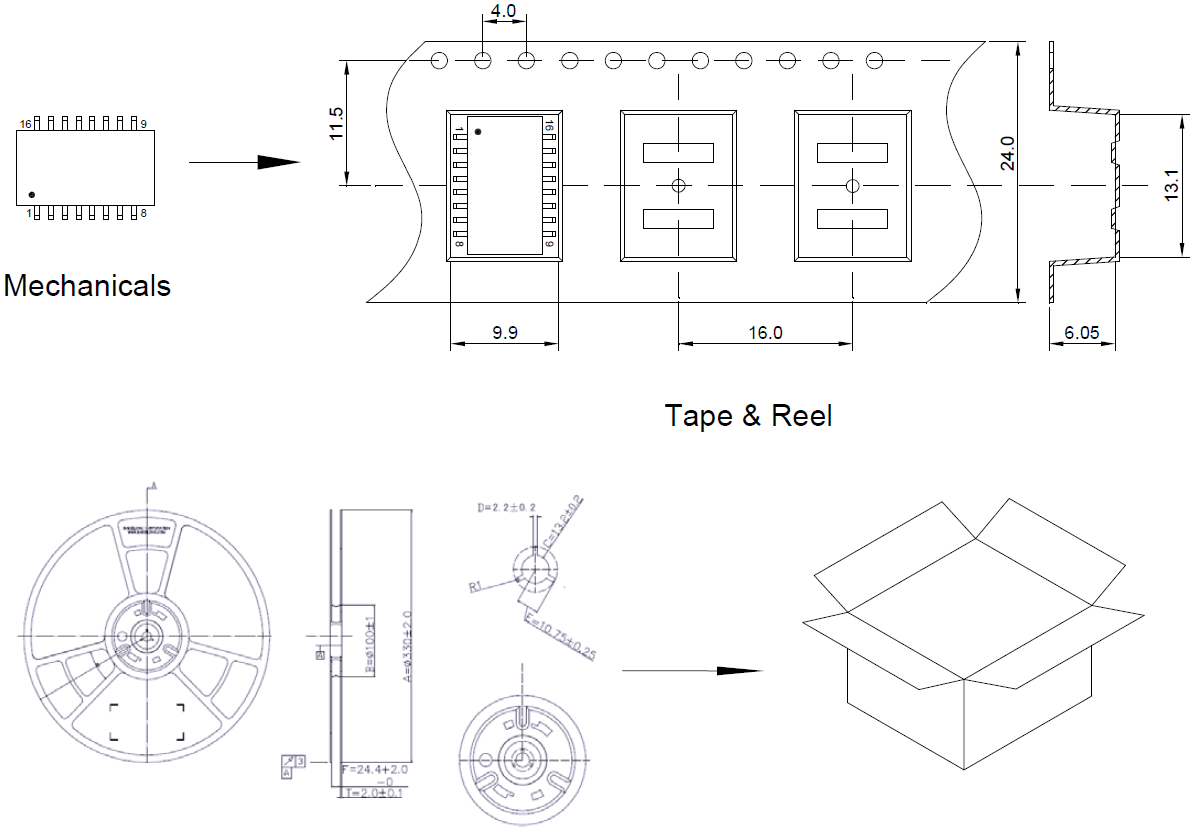

  • Packaging Option I: 700 pcs / reel
  • Packaging Option II: 36 pcs / tube

Technical Specifications

Parameter Minimum Typical Maximum Units Notes
Dimensions 12.70 x 9.40 x 5.70 mm mm
Operating Temperature -40 +85 C
Storage Temperature -40 +85 C
Turn Ratio 1CT:1CT ( 2%)
Inductance (OCL) 350 H 100KHz/0.1V@8mA
Leakage Inductance (LL) 0.4 H 100KHz/0.1V
Cw/w 25 pF 100KHz/0.1V
DC Resistance 1.5
Insertion Loss -1.1 dB 0.3-100MHz
Return Loss -20 dB 30MHz
Cross Talk -45 dB 30MHz
Differential to Common Mode Rejection -42 dB 30MHz
Common Mode Rejection -30 dB 1-100MHz
PoE Current Capacity 350 mA
Hi-Pot 1500 Vrms
Weight (per pcs) 0.7 grams
