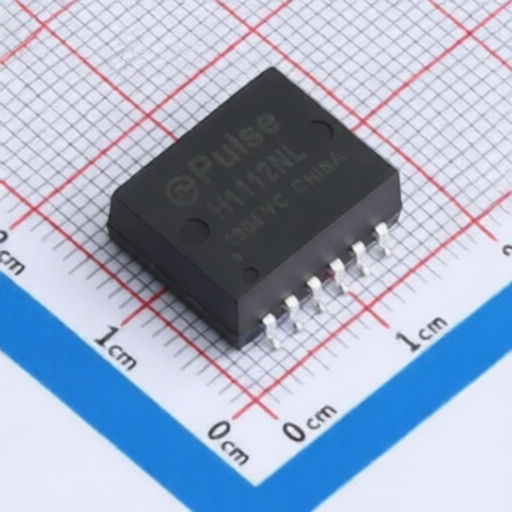

High Isolation Voltage Optocoupler PULSE H1112NLT Featuring Performance and Wide Temperature Operating Range
High Isolation Voltage Optocoupler PULSE H1112NLT Featuring Performance and Wide Temperature Operating Range
Specifications
Isolation Voltage(Vrms) :
1.5kV
Inductance :
350uH
Turns Ratio :
1CT:1CT
Operating Temperature :
0℃~+70℃
Description :
LAN Transformer 1CT:1CT Surface Mount-12P,14.8x11.7mm
Mfr. Part # :
H1112NLT
Model Number :
H1112NLT
Package :
SMD-12P,14.8x11.7mm
Description

Product Overview

The H1112NL is a component designed for specific applications. Its primary function and advantages are derived from its technical specifications. It is suitable for integration into systems requiring its particular electrical and physical characteristics.

Product Attributes

  • Brand: Vishay
  • Origin: Germany

Technical Specifications

Specification Value
Part Number H1112NL
Isolation Voltage (RMS) 5300 VRMS
Breakdown Voltage 7500 V peak
Output Type Phototransistor
Number of Channels 1
Current Transfer Ratio (CTR) 100% (min) at IF = 10 mA
Collector Emitter Voltage (VCEO) 70 V
Collector Current (IC) 50 mA
Package Type DIP-6
Operating Temperature -55C to +100C

2411272321_PULSE-H1112NLT_C6569430.pdf
