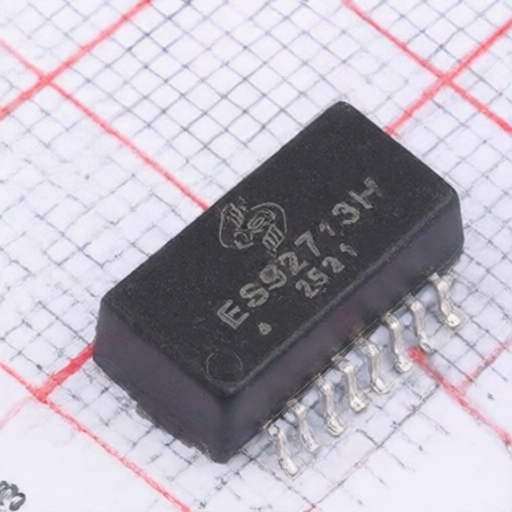

10 100Base T Ethernet Surface Mount Transformer XR ES92713H with Isolation and IEEE 802 3 Compliance
10 100Base T Ethernet Surface Mount Transformer XR ES92713H with Isolation and IEEE 802 3 Compliance
Specifications
Isolation Voltage(Vrms) :
1.5kV
Turns Ratio :
1:1
rate :
10/100 Base-T
Inductance :
350uH
Operating Temperature :
0℃~+70℃
Description :
350uH 10/100 Base-T LAN Transformer 1:1 Surface Mount
Mfr. Part # :
ES92713H
Model Number :
ES92713H
Package :
SMD
Description

Product Overview

The ES92713H Lan Transformer is designed for 10/100Base-T Ethernet applications, featuring surface mount type and an open header cable interface. It meets IEEE 802.3, ANSI X3.263, and RoHS standards, providing isolation and low common mode emissions. This transformer is suitable for a wide operating temperature range and is compliant with specific reflow soldering conditions.

Product Attributes

  • Brand: DONGGUAN XIANGRU ELECTRONICS CO.,LTD
  • Origin: Dongguan, China
  • Certifications: IEEE 802.3, ANSI X3.263, RoHS Compliant

Technical Specifications

Part NoOCL (uH min) @100KHz/0.1Vrms,8mATurns Ratio (3%)DCR () MaxCww (Pri:Sec) pF TypIsolation Voltage (AC Vrms 3S)Insertion loss (dB max) 1-100MHzReturn Loss (dB Min) MHzCMRR (dB min)MHzCrosstalk (dB min)MHz
ES92713H350uH1:10.9/1.2351500V-1.2-18 (1-30), -16 (40-60), -14 (60-100)-40 (1-60), -30 (60-100)-35 (1-100)

Features

  • Meets IEEE 802.3 and ANSI X3.263 standards. RoHS Compliant.
  • 10/100Base-T, Surface Mount Type, Open Header.
  • Operating temperature range: 0 to +70.
  • Storage temperature range: -40 to +85.
  • For isolation and low common mode emissions.
  • Reflow soldering temperature: peak temperature 250 (10s).
  • Reflow soldering frequency: Recommended not to exceed 3 times.

2506121200_XR-ES92713H_C49118380.pdf
