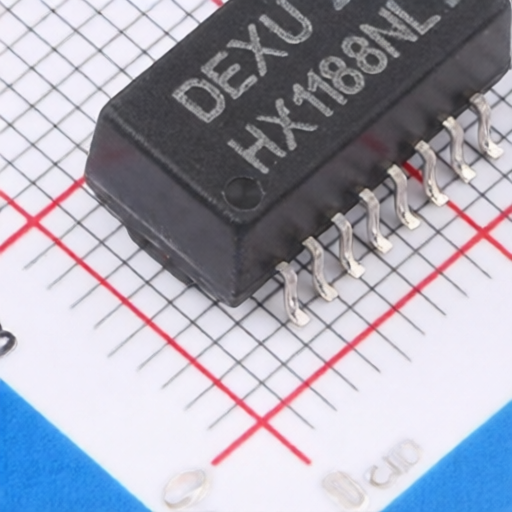

Isolated Network Transformer DEXU Electronics HX1188NLT Single Port for Consumer Electronics and 3C
Isolated Network Transformer DEXU Electronics HX1188NLT Single Port for Consumer Electronics and 3C
Specifications
Isolation Voltage(Vrms) :
1.5kV
Operating Temperature :
-40℃~+85℃
rate :
10/100 Base-T
Description :
1.5kV 10/100 Base-T SMD Pulse Transformers RoHS
Mfr. Part # :
HX1188NLT
Model Number :
HX1188NLT
Package :
SMD
Description

Product Overview

The HX1188NLT is a 10/100 Base-T single-port isolated network transformer designed for various electronic communication equipment. It is widely used in network communication, consumer electronics, 3C appliances, security monitoring, industrial automation, automotive communication, medical, aviation, and military fields. This product boasts a small SMD package, international standard pins, high reliability, and is available in large quantities.

Product Attributes

  • Brand: (Dexu)
  • Origin: (Guangzhou)
  • Certifications: Meets IEEE 802.3ab and ANSI X3.263 specifications
  • Package: Small volume SMD
  • Pinout: International standard
  • Availability: Large batch stock

Technical Specifications

ModelTurn Ratio (TX:RX)Insertion Loss (dB typ)Return Loss (dB typ) @ 100kHz - 100MHzDifferential Mode Rejection Ratio (dB typ) @ 30 MHz, 60 MHz, 100 MHzCrosstalk (dB typ) @ 30 MHz, 60 MHz, 100 MHzIsolation Voltage (Vrms)
30 MHz60 MHz100 MHz30 MHz60 MHz100 MHz30 MHz60 MHz100 MHz
HX1188NLT1:1-1.1dB-18-12-10-43-40-35-45-40-351500

Operating Temperature Range: 0-70 (Product Parameters), -40-85 (General)


2506061750_DEXU-Electronics-HX1188NLT_C49109483.pdf
