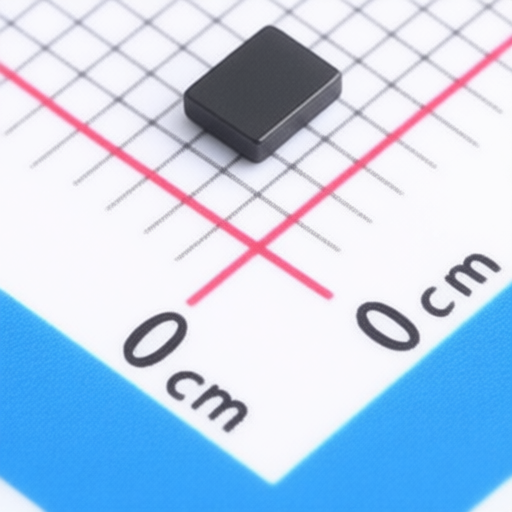

CENKER CKST252008-1uH M Compact SMD Inductor with Ultra Low Buzzer Sound and High Current Capability
CENKER CKST252008-1uH M Compact SMD Inductor with Ultra Low Buzzer Sound and High Current Capability
Specifications
Current Rating :
3.2A
Inductance :
1uH
Tolerance :
±20%
Current - Saturation (Isat) :
4.5A
DC Resistance(DCR) :
45mΩ
Description :
3.2A 1uH ±20% 4.5A 45mΩ SMD,2.5x2mm Fixed Inductors RoHS
Mfr. Part # :
CKST252008-1uH/M
Model Number :
CKST252008-1uH/M
Package :
SMD,2.5x2mm
Description

Product Overview

Shenzhen Cenker Enterprise Ltd. (Cenker) is a high-tech enterprise specializing in the research, development, manufacturing, and sales of various chip electronic components. Cenker's product focus includes energy storage, EMC, buck-boost converters, and RF inductors, with main product offerings such as NR, SMD inductors, common mode inductors, and transformers. The company boasts a significant manufacturing capacity with a 100-acre industrial park in Nanning, Guangxi Province, featuring over 100,000 square feet of factory floor and 774 sets of automated production equipment, enabling a monthly manufacturing capacity exceeding 1 billion pieces.

Product Attributes

  • Brand: CENKER
  • Origin: Shenzhen, China
  • Certifications: ISO Management System Certification, TF16949 System Certification

Technical Specifications

Series: CKST (SMD Molding Power Inductor)

Features:

  • Magnetic shield structure with a closed magnetic circuit, offering strong anti-electromagnetic interference and ultra-low buzzer sound for high-density installation.
  • Small volume with large current capacity, maintaining excellent temperature rise current and saturation current characteristics in high-frequency and high-temperature environments.
  • Low loss alloy powder die-casting for low resistance, firm structure, and high product precision.

Applications: PAD, Notebook, Server, audio, netcom, security, mobile phone, smart home, Energy products, etc.

Dimensions (Unit: mm):

TYPE () A B C (Max) D E
CKST20120652.00.21.20.20.650.60.3
CKST2012082.00.21.20.20.80.60.3
CKST2012102.00.21.20.21.00.60.3
CKST2016082.00.21.60.20.80.60.3
CKST2016102.00.21.60.21.00.60.3
CKST2520082.50.22.00.20.80.80.3
CKST2520102.50.22.00.21.00.80.3
CKST2520122.50.22.00.21.20.80.3
CKST3225123.20.22.50.21.20.80.3
CKST3532203.50.23.20.22.00.70.2
CKSTT04104.00.34.00.31.01.10.3
CKST04012P4.40.354.20.251.20.80.32.00.3
CKST04024.60.254.10.350.761.50.32
CKST05025.70.255.10.352.01.30.32.30.3
CKST05035.70.255.10.353.01.30.32.30.3
CKSTT06106.60.26.60.21.60.3
CKSTF06156.40.26.60.21.52.10.3
CKST06036.60.21.60.33.03.00.2
CKST06056.60.21.60.35.03.00.2
CKSTF08177.80.27.80.21.72.60.3
CKST100310.10.33.03.00.5
CKST100410.10.34.03.00.5
CKST100510.10.35.03.00.5
CKST120512.60.35.03.00.5/3.50.5
CKST120612.60.36.03.00.5/3.50.5
CKST170711.940.37.02.50.5

Part Numbering System: CKST 0603 10uH M

Specification Table (Example: CKST2012065):

PART NUMBER () INDUCTANCE () (H) DCR(m)@25 () SATURATION CURRENT Isat(A) () HEAT RATING CURRENT Irms(A) ()
Typical Maximum Typical Maximum Typical Maximum
CKST2012065-0.47uH/M0.4720%47.054.04.03.74.03.6
CKST2012065-1uH/M120%92.0105.03.02.52.22.0
CKST2012065-2.2uH/M2.220%236.0260.02.52.01.31.1

Remarks:

  • All test data is referenced to 25 ambient.
  • Test Condition: 1MHz, 1Vrms.
  • Isat: Max. Value, DC current at which the inductance drops less than 30% from its value without current; Typ. Value, DC current at which the inductance drops 30% from its value without current.
  • Irms: For Max. Value, T < 40; for Typ. Value, T is approximate 40.
  • Operate between temperature range -40 to +125 (Including self-temperature rise).
  • Absolute maximum voltage: DC 25V.

Packaging Specification:

TYPE () Reel Dimension () (mm) Quantity (Pcs/Reel) ((/))
A B C
CKST201206517858133000
CKST20120817858133000
CKST20121017858133000
CKST20160817858133000
CKST20161017858132000
CKST25200817858133000
CKST25201017858133000
CKST25201217858133000
CKST32251217858133000
CKST353220330100133000
CKSTT0410330100133000
CKST04012P330100133000
CKST0402330100133000
CKST0502330100132000
CKST0503330100131500
CKSTT0610330100132000
CKSTF0615330100132000
CKST0603330100131500
CKST0605330100131000
CKSTF0817330100132000
CKST1003330100131000
CKST1004330100131000
CKST100533010013800
CKST120533010013400
CKST120633010013400
CKST170733010013300

Note: Additional product series (CKSTC, CKSTF, CKCS, CKCSA, CKCH, CKCD, CKCBA, CKCR, CKCF, CKPF, CKO, CKOB, CKPK, CKPP, CKOCR, CKOC, CKDFQ, CKSFQ, CKSF, CKDFU, CKDP, CKCW, CKCW-C, CKFI, CKCI) are mentioned in the document with their respective features, applications, part numbering systems, shapes, dimensions, electrical characteristics, and packaging specifications. However, due to the extensive nature and repetition of data formats, only the CKST series is detailed here as an example.
