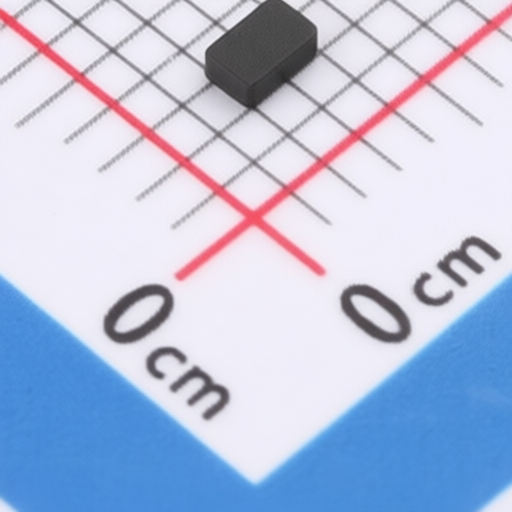

Durable CND-tek MHT201208SG-R47M H SMD Power Inductor Featuring Polyurethane Enameled Copper Wire
Durable CND-tek MHT201208SG-R47M H SMD Power Inductor Featuring Polyurethane Enameled Copper Wire
Specifications
Description :
SMD,2x1.2mm Fixed Inductors RoHS
Mfr. Part # :
MHT201208SG-R47M H
Model Number :
MHT201208SG-R47M H
Package :
SMD,2x1.2mm
Description

SMD Power Inductor

Product Overview

This SMD Power Inductor is designed for various electronic applications. It features a robust mechanical structure with soft magnetic core and polyurethane enameled copper wire. The product is available in multiple inductance values, offering reliable performance with specified saturation and heat rating currents. It operates within a wide temperature range and is suitable for applications requiring stable inductance and current handling capabilities.

Product Attributes

  • Brand: CD-TEK
  • Manufacturer: Shenzhen magnetic Lianda Electronics Co., LTD
  • Core Material: Soft magnetic
  • Wire Material: Polyurethane enameled copper wire
  • Electrodes Plating: Ni + Sn
  • Packaging: 3000 PCS PER REEL, 9 REELS PER CARTON (27000PCS PER CARTON)

Technical Specifications

Part Number Inductance (uH) DC Resistance (m) Typ. DC Resistance (m) Max. Saturation Current (A) Typ. Saturation Current (A) Isat(max.) Heat Rating Current (A) Typ. Heat Rating Current (A) Irms(max.) Dimensions (mm) A Dimensions (mm) B Dimensions (mm) C Dimensions (mm) G Dimensions (mm) N Dimensions (mm) T Dimensions (mm) P2 Dimensions (mm) E Dimensions (mm) P0 Dimensions (mm) F Dimensions (mm) W
MHT201208SG-R24M 0.24 20% 20 26 5.50 6.00 4.50 4.80 8.00 0.3 1.3 0.1 2.3 0.1 1.00 0.1 4.00 0.1 2.00 0.1 1.50 0.1 1.75 0.1 4.00 0.1 3.5 0.1 0.20 0.05
MHT201208SG-R47M 0.47 20% 37 42 4.50 4.80 3.60 3.80 8.00 0.3 1.3 0.1 2.3 0.1 1.00 0.1 4.00 0.1 2.00 0.1 1.50 0.1 1.75 0.1 4.00 0.1 3.5 0.1 0.20 0.05
MHT201208SG-1R0M 1.0 20% 60 79.2 2.80 3.20 2.50 2.80 8.00 0.3 1.3 0.1 2.3 0.1 1.00 0.1 4.00 0.1 2.00 0.1 1.50 0.1 1.75 0.1 4.00 0.1 3.5 0.1 0.20 0.05
MHT201208SG-1R5M 1.5 20% 103 130 2.40 2.50 2.20 2.50 8.00 0.3 1.3 0.1 2.3 0.1 1.00 0.1 4.00 0.1 2.00 0.1 1.50 0.1 1.75 0.1 4.00 0.1 3.5 0.1 0.20 0.05
MHT201208SG-2R2M 2.2 20% 180 220 2.20 2.50 1.90 2.20 8.00 0.3 1.3 0.1 2.3 0.1 1.00 0.1 4.00 0.1 2.00 0.1 1.50 0.1 1.75 0.1 4.00 0.1 3.5 0.1 0.20 0.05

General Specifications:

  • Absolute Maximum Voltage: DC 20V
  • Operating Temperature Range: -40 ~ +125 (Including self-heating)
  • Storage Temperature Range: -40 ~ +125
  • Electrical Specifications @25C: Inductance, DC Resistance, Saturation Current, Heat Rating Current
  • Clearance f: Between terminal and the surface of plate must be 0.12mm max when coil is placed on a flat plate.

Contact Information:
Address: Floor 5, Buding T1, HaiGu Technology Buding, Shi Yan Subdistrict, Bao'an, Shenzhen City.
Tel: 0755-27652992 / 29016433
E-mail: sales1@cd-tek.com
Website: www.cd-tek.com


2510090953_CND-tek-MHT201208SG-R47M-H_C49435075.pdf
