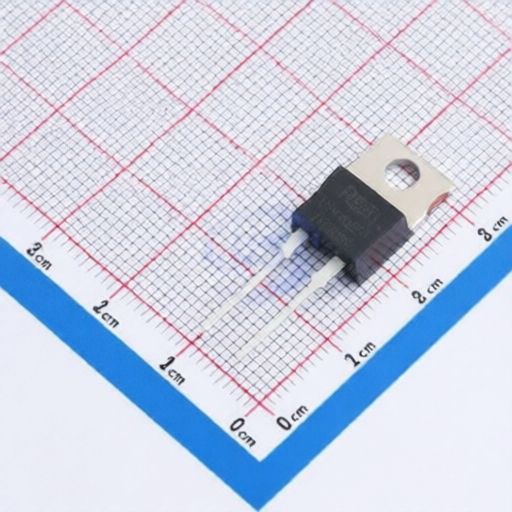

The TPAN1331 series is a high-power molded power resistor, also known as a TO-331 package high-power resistor. It features a planar non-inductive design and is suitable for applications requiring current detection, energy absorption and dissipation, RC absorption, high-speed switching, and high-frequency circuits. It is also used in voltage regulation, constant power loads, and low-energy pulse loads. Key advantages include excellent long-term stability, low temperature coefficient, high heat dissipation, low thermal resistance, and low current noise. The product is manufactured with independently controlled core materials, equipment, and processes, ensuring stable quality and timely delivery.
| Series | Model Example | Resistance Range | Tolerance | Power Rating | Max Working Voltage | Temperature Coefficient | Working Temperature Range | Thermal Resistance | Dielectric Strength | Insulation Resistance | Inductance | Unit Weight | Molding Type | Resistance Technology | Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TPAN1331 | TPAN1331F21R10K | 1.6 ~ 21K | 1.6%, 2%, 5% | 61W | 611V | 210ppm/ | -55 ~ +260 | 1.2/W | 3111VAC | 21M | 1.2H | 1.30.6g | Molded Plastic Seal | Thick Film | TO-331 |
Unit: mm
| Test Item | Test Method | Standard | Parameter Index |
|---|---|---|---|
| High Temperature Storage | AEC-Q200 TEST 24 | MIL-STD-202 Method 108 | R1.6% |
| High Temperature and Humidity Load Life | AEC-Q200 TEST 29 | IEC 61721-2 5.28 | R2% |
| Solvent Resistance | AEC-Q200 TEST 20 | IEC 61721-2 5.9 | R1.6% |
| Mechanical Shock | UL-94 | IEC 61721-2 5.24 | R1.6% |
| Vibration | AEC-Q200 TEST 4 | MIL-STD-202 Method 204 | R1.6% |
| Solderability | AEC-Q200 TEST 8 | MIL-STD-202 Method 208 | Min. solderable area 95% |
| Thermal Shock | AEC-Q200 TEST 9 | MIL-STD-202 Method 107 | R1.6% |
| Resistance to Soldering Heat | AEC-Q200 TEST 23 | MIL-STD-202 Method 210 | R1.6% |
| Terminal Strength | AEC-Q200 TEST 25 | MIL-STD-202 Method 211 | R1.6% |
| Short-time Overload | AEC-Q200 TEST 26 | MIL-STD-202 Method 301 | R1.6% |
| Dielectric Strength | AEC-Q200 TEST 27 | MIL-STD-202 Method 301 | No breakdown or arcing, R1.3% |
| Low Temperature Load | R2% | ||
| Temperature Coefficient | Within V2 grade conditions |
Lead-free wave soldering curve is provided.
Power derating based on flange temperature is illustrated.
Resistor surface temperature rise versus applied power is shown.
Graphs illustrating performance under pulsed conditions.
Recommendations for mounting with heatsinks, including thermal paste/pads, screw selection, torque, and cooling methods for full power applications.
Details on tube packaging, banding, and outer carton dimensions.
Explanation of rated power (61W) at 36 flange temperature, measurement points, and the importance of thermal management for reliability and lifespan.
Guidance on selecting appropriate heatsinks based on operating conditions and thermal resistance calculations.
| Model | Resistance | Tolerance | Temp. Coeff. | Power | Max Voltage | Package |
|---|---|---|---|---|---|---|
| TPAN1331D1R10K | 10 | 1.6% | 210ppm/ | 61W | 611V | TO-331 |
| TPAN1331F21R10K | 10 | 2% | 210ppm/ | 61W | 611V | TO-331 |
| TPAN1331J21R10K | 10 | 5% | 210ppm/ | 61W | 611V | TO-331 |
| TPAN1331D1R6 | 1.6 | 1.6% | 210ppm/ | 61W | 611V | TO-331 |
| TPAN1331F1R6 | 1.6 | 2% | 210ppm/ | 61W | 611V | TO-331 |
| TPAN1331J1R6 | 1.6 | 5% | 210ppm/ | 61W | 611V | TO-331 |
| TPAN1331D2R0 | 2 | 1.6% | 210ppm/ | 61W | 611V | TO-331 |
| TPAN1331F2R0 | 2 | 2% | 210ppm/ | 61W | 611V | TO-331 |
| TPAN1331J2R0 | 2 | 5% | 210ppm/ | 61W | 611V | TO-331 |
| TPAN1331D2K1 | 2.1K | 1.6% | 210ppm/ | 61W | 611V | TO-331 |
| TPAN1331F2K1 | 2.1K | 2% | 210ppm/ | 61W | 611V | TO-331 |
| TPAN1331J2K1 | 2.1K | 5% | 210ppm/ | 61W | 611V | TO-331 |
| TPAN1331D21K | 21K | 1.6% | 210ppm/ | 61W | 611V | TO-331 |
| TPAN1331F21K | 21K | 2% | 210ppm/ | 61W | 611V | TO-331 |
| TPAN1331J21K | 21K | 5% | 210ppm/ | 61W | 611V | TO-331 |
| Version | Date | Author | Content |
|---|---|---|---|
| V1 | 2023.12.12 | LWW | New product release |
| V2 | 2024.07.15 | LWW | Updated product pulse curves |
