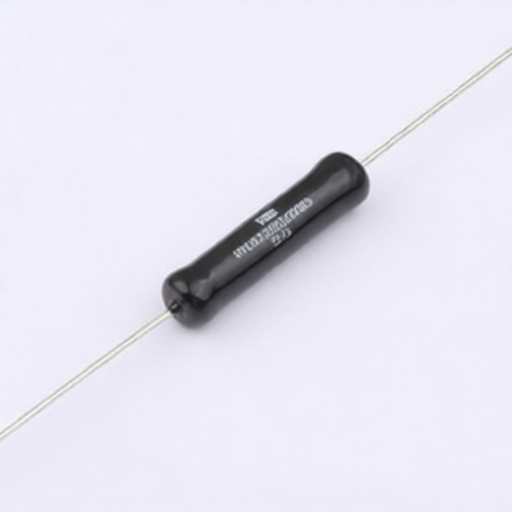

High Voltage RESI HVLR2505J1G00K9 Resistor with 1K to 1G Resistance and 0.1 to 10 Percent Tolerance
High Voltage RESI HVLR2505J1G00K9 Resistor with 1K to 1G Resistance and 0.1 to 10 Percent Tolerance
Specifications
Type :
Thick Film Resistor
Resistance :
1000MΩ
Voltage-Supply(Max) :
5.5kV
Power(Watts) :
1.2W
Temperature Coefficient :
±100ppm/℃
Tolerance :
±5%
Operating Temperature :
-55℃~+175℃
Description :
Thick Film Resistor 1000MΩ 1.2W ±100ppm/℃ ±5% Through Hole,D6.5xL25.4mm Through Hole Resistors RoHS
Mfr. Part # :
HVLR2505J1G00K9
Model Number :
HVLR2505J1G00K9
Package :
Through Hole,D6.5xL25.4mm
Description

HVLR

  • 100%

  • : ()
  • :
  • : ()
  • : ()

(+125 ppm/ g
HVLR150515051K~1G0.1%~10.0%0.7W100 (-25+125,+25 ref2500V-55~+1751.701
HVLR190519051K~1G0.1%~10.0%1.0W100 (-25+125,+25 ref3500V-55~+1751.931
HVLR250525051K~1G0.1%~10.0%1.2W100 (-25+125,+25 ref5500V-55~+1752.451
HVLR240824081K~1G0.1%~10.0%2.0W100 (-25+125,+25 ref5500V-55~+1755.162
HVLR390839081K~1G0.1%~10.0%3.0W100 (-25+125,+25 ref10000V-55~+1757.572
HVLR520852081K~1G0.1%~10.0%5.0W100 (-25+125,+25 ref15000V-55~+1759.582
HVLR760976091K~1G0.1%~10.0%7.5W100 (-25+125,+25 ref22500V-55~+17518.602
HVLR102910291K~1G0.1%~10.0%10.0W100 (-25+125,+25 ref32000V-55~+17523.632
HVLR117911791K~1G0.1%~10.0%11.0W100 (-25+125,+25 ref35000V-55~+17526.242
HVLR127912791K~1G0.1%~10.0%12.0W100 (-25+125,+25 ref40000V-55~+17528.562
HVLR137913791K~1G0.1%~10.0%13.0W100 (-25+125,+25 ref45000V-55~+17531.642
HVLR152915291K~1G0.1%~10.0%15.0W100 (-25+125,+25 ref48000V-55~+17534.342

2409141430_RESI-HVLR2505J1G00K9_C41406273.pdf
