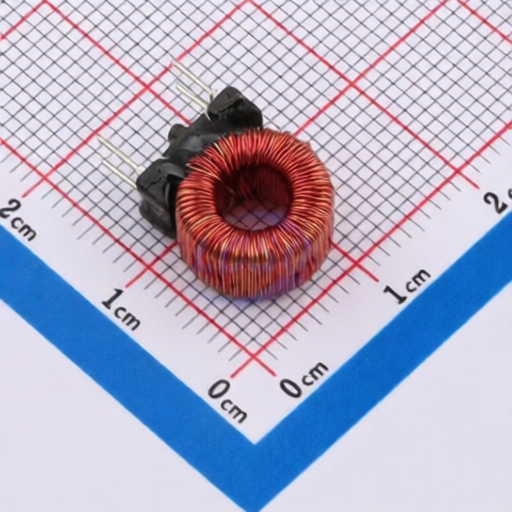

Toroidal Inductors YJYCOIN YDTCB100605-153L Suitable for Line Filtering and Current Load Variations
Toroidal Inductors YJYCOIN YDTCB100605-153L Suitable for Line Filtering and Current Load Variations
Specifications
Inductance @ Frequency :
15mH@10kHz
Number of Lines :
2
DC Resistance(DCR) :
1.2Ω
Voltage Withstand :
600V
Description :
15mH@10kHz Common Mode Choke Through Hole-4P 12.5x7.5mm DCR 1.2Ω
Mfr. Part # :
YDTCB100605-153L
Model Number :
YDTCB100605-153L
Package :
Through Hole-4P,12.5x7.5mm
Description

Toroidal Inductors

These toroidal inductors are designed for line filtering to suppress conductive noise from low to high frequencies in various electronic equipment power supply circuits. They offer high levels of safety and reliability with a cost-effective design, suitable for applications where inductance needs to vary with current load changes. The inductors feature self-electromagnetic shielding and are designed for easy PC board mounting.

Product Attributes

  • Brand:
  • Origin: China
  • Website: http://www.yjycoin.com
  • Certifications: E176101, E218090, E59481

Technical Specifications

TypeDimensions (mm)Inductance ValueStyleRating DC Current (T approx. 40)Test ItemSpecPinTest ConditionTest InstrumentsDCRHI-POTWire SizeTurnsNotes
Toroidal InductorsA Max. 12.5, B Max. 14.5, C Max. 7.5, D 3.00.5, E 0.50.1, F 7.50.5, G 3.00.5201=200uHL-vertical, W-horizontalIrmsL15mH 25%1-2,4-310KHz/1VTH-2898KX OR EQUAL1.2 Max600VAC (Coils ~ Coils, 3mA/3S/50Hz)0.181P70.5TSRef. Split winding

Winding Construction

OrderWire SizeTurnsNotes
S F0.181P70.5TSRef. Split winding
N10.181P70.5TSRef. Split winding
N20.181P70.5TSRef. Split winding

Reliability

No.ItemMaterialVendorUL File
1CORET1065CACME OR EQUAL
2WIRExUEW-NY/180(MW 83-C)DAYANG OR EQUALE176101
3SOLDERSn99.3/Cu0.7METAL
4EPOXYE-500(XX)EATTO OR EQUALE218090
5BASET375J PLASTICSE59481

Packaging

No.PackagingMaterialsReference DimensionMaterialQuantity
1Box(T003)29020015(mm)PET408PCS/Box
2Master Carton315210135(mm)K36K6Box/Carton

2410121217_YJYCOIN-YDTCB100605-153L_C22400308.pdf
