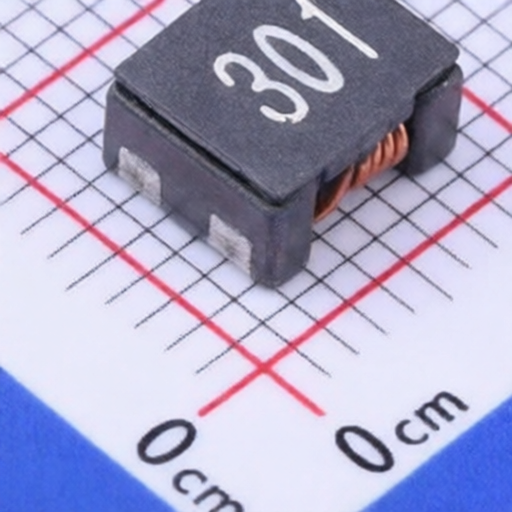

SMD Common Mode Choke MetalLions ACM7060F-301T50 for Power Line Noise Reduction in Electronic Equipment
SMD Common Mode Choke MetalLions ACM7060F-301T50 for Power Line Noise Reduction in Electronic Equipment
Specifications
Insulation Resistance(IR) :
10MΩ
Operating Temperature :
-40℃~+125℃
DC Resistance(DCR) :
10mΩ
Voltage Rating - DC :
125V
Number of Lines :
2
Description :
2Line Common Mode Choke Surface Mount 7x6mm 300Ω@100MHz 5A DCR 10mΩ
Mfr. Part # :
ACM7060F-301T50
Model Number :
ACM7060F-301T50
Package :
SMD,7x6mm
Description

Product Overview

SMD Common Mode Chokes featuring a winding type for small size and low profile, ideal for preventing high-frequency common mode noise. They offer excellent solderability and operate in a temperature range of -40 to +125. These chokes are designed for power line noise countermeasures in electronic equipment such as notebooks and servers, and are suitable for high current circuits in automotive wireless charging and power device designs.

Product Attributes

  • Brand: Metal-Lions (implied by URL)
  • Certifications: RoHS Compliant

Technical Specifications

Part NumberDimensions (mm)Rated Current (A)Common Mode Impedance () at 100MHz (Typ.)DC Resistance (M) Max.Rated Voltage (V) Max.Operating Temperature ()
ACM7060F-701T40A: 7.00.5, B: 6.00.5, C: 3.8Max., D: 3.5Typ., E: 1.50.2, F: 1.50.2, G: 1.750.24.070015125-40~+125
ACM7060F-601T40A: 7.00.5, B: 6.00.5, C: 3.8Max., D: 3.5Typ., E: 1.50.2, F: 1.50.2, G: 1.750.24.060010125-40~+125
ACM7060F-501T50A: 7.00.5, B: 6.00.5, C: 3.8Max., D: 3.5Typ., E: 1.50.2, F: 1.50.2, G: 1.750.25.050010125-40~+125
ACM7060F-301T50A: 7.00.5, B: 6.00.5, C: 3.8Max., D: 3.5Typ., E: 1.50.2, F: 1.50.2, G: 1.750.25.03005.0125-40~+125
ACM7060F-400T150A: 7.00.5, B: 6.00.5, C: 3.8Max., D: 3.5Typ., E: 1.50.2, F: 1.50.2, G: 1.750.215.04009.0125-40~+125
ACM7060F-302T09A: 7.00.5, B: 6.00.5, C: 3.8Max., D: 3.5Typ., E: 1.50.2, F: 1.50.2, G: 1.750.20.9250075125-40~+125
ACM7060F-102T30A: 7.00.5, B: 6.00.5, C: 3.8Max., D: 3.5Typ., E: 1.50.2, F: 1.50.2, G: 1.750.23.0100021125-40~+125
ACM7060F-601T40A: 7.00.5, B: 6.00.5, C: 3.8Max., D: 3.5Typ., E: 1.50.2, F: 1.50.2, G: 1.750.24.060010125-40~+125
ACM7060F-701T40A: 7.00.5, B: 6.00.5, C: 3.8Max., D: 3.5Typ., E: 1.50.2, F: 1.50.2, G: 1.750.24.070015125-40~+125
ACM7060F-101T90A: 7.00.5, B: 6.00.5, C: 3.8Max., D: 3.5Typ., E: 1.50.2, F: 1.50.2, G: 1.750.29.01005.0125-40~+125
ACM7060F-132T25A: 7.00.5, B: 6.00.5, C: 3.8Max., D: 3.5Typ., E: 1.50.2, F: 1.50.2, G: 1.750.22.5130017125-40~+125
ACM7060F-272T10A: 7.00.5, B: 6.00.5, C: 3.8Max., D: 3.5Typ., E: 1.50.2, F: 1.50.2, G: 1.750.21.0270063125-40~+125
ACM7060F-302T09A: 7.00.5, B: 6.00.5, C: 3.8Max., D: 3.5Typ., E: 1.50.2, F: 1.50.2, G: 1.750.20.9300075125-40~+125

2410121820_MetalLions-ACM7060F-301T50_C908564.pdf
