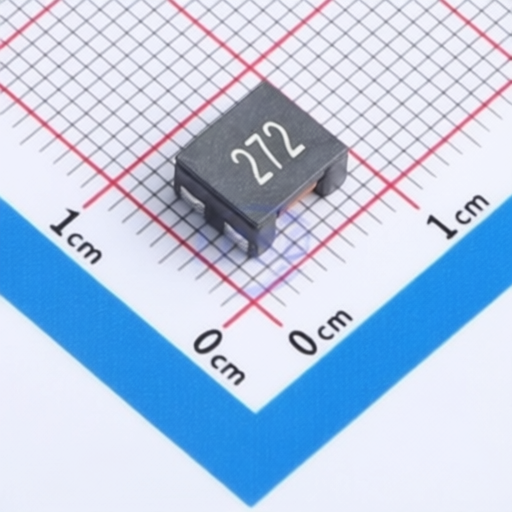

Wire Wound Chip Common Mode Choke Cjiang FXCM7060F-272T for Electromagnetic Interference Filtering
Wire Wound Chip Common Mode Choke Cjiang FXCM7060F-272T for Electromagnetic Interference Filtering
Specifications
Operating Temperature :
-40℃~+125℃
Insulation Resistance(IR) :
10Ω
DC Resistance(DCR) :
63mΩ
Voltage Rating - DC :
125V
Number of Lines :
2
Description :
2Line Common Mode Choke Surface Mount-4P 7x6mm 2.7kΩ@100MHz 1A DCR 63mΩ
Mfr. Part # :
FXCM7060F-272T
Model Number :
FXCM7060F-272T
Package :
SMD-4P,7x6mm
Description

Product Overview

The FXCMXXXXF-Series and FXCMXXXXCF-Series are wire wound chip common mode chokes designed for general electronics equipment. These components act as common mode line filters, helping to suppress electromagnetic interference (EMI). They are developed and intended for use in standard electronic applications, with a caution against their use in high-reliability or safety-critical systems without further consultation.

Product Attributes

  • Brand: CJIANG ()
  • Product Type: Wire Wound Chip Common Mode Choke
  • Series: FXCMXXXXF-Series, FXCMXXXXCF-Series
  • Origin: Shenzhen, China
  • Core Material: Ferrite
  • Case Material: LCP
  • Wire Material: P180 Grd1*2*16.5
  • Adhesive: Epoxy Resin 107H
  • Tin: SHENMAO OR EQ
  • Ink: BON MARQUE OR EQ

Technical Specifications

Series Model Dimensions (L*W*H) (mm) Impedance (@100MHz) () Min/Typ DCR (m) Max Max. Rated Current (A) Max Rated Volt. (Vdc) Operating Temperature (C)
FXCM4520F FXCM4520F-900T 4.70.5 x 4.50.5 x 2.2Max 60 / 90 35 3.2 50 -40 to +125
FXCM4520F-151T 4.70.5 x 4.50.5 x 2.2Max 90 / 150 40 3.1 50
FXCM4520F-231T 4.70.5 x 4.50.5 x 2.2Max 180 / 230 45 3.0 50
FXCM4520F-301T 4.70.5 x 4.50.5 x 2.2Max 200 / 300 45 3.0 50
FXCM4520F-421T 4.70.5 x 4.50.5 x 2.2Max 300 / 420 50 2.5 50
FXCM4520F-701T 4.70.5 x 4.50.5 x 2.2Max 500 / 700 59 2.2 50
FXCM4520F-901T 4.70.5 x 4.50.5 x 2.2Max 650 / 900 68 2.1 50
FXCM4520F-102T 4.70.5 x 4.50.5 x 2.2Max 800 / 1000 68 2.1 50
FXCM4520F-122T 4.70.5 x 4.50.5 x 2.2Max 1000 / 1200 74 2.0 50
FXCM4520F-142T 4.70.5 x 4.50.5 x 2.2Max 1200 / 1400 81 1.9 50
FXCM7060F FXCM7060F-400T 7.00.5 x 6.00.5 x 3.8Max 40 / 70 5 15.0 125 -40 to +125
FXCM7060F-101T 7.00.5 x 6.00.5 x 3.8Max 100 / 140 10 9.0 125
FXCM7060F-301T 7.00.5 x 6.00.5 x 3.8Max 225 / 300 10 5.0 125
FXCM7060F-501T 7.00.5 x 6.00.5 x 3.8Max 275 / 450 10 5.0 125
FXCM7060F-601T 7.00.5 x 6.00.5 x 3.8Max 500 / 700 15 4.0 125
FXCM7060F-701T 7.00.5 x 6.00.5 x 3.8Max 500 / 700 15 4.0 125
FXCM7060F-102T 7.00.5 x 6.00.5 x 3.8Max 800 / 1020 17 3.0 125
FXCM7060F-132T 7.00.5 x 6.00.5 x 3.8Max 910 / 1300 21 2.5 125
FXCM7060F-272T 7.00.5 x 6.00.5 x 3.8Max 2000 / 2700 63 1.0 125
FXCM7060F-302T 7.00.5 x 6.00.5 x 3.8Max 2500 / 3000 75 0.9 125
FXCM9070F FXCM9070F-301T 9.00.5 x 7.00.5 x 4.8Max 225 / 300 6 6 80 -40 to +125
FXCM9070F-501T 9.00.5 x 7.00.5 x 4.8Max 450 / 600 8 5.5 80
FXCM9070F-701T 9.00.5 x 7.00.5 x 4.8Max 500 / 700 10 5.0 80
FXCM9070F-102T 9.00.5 x 7.00.5 x 4.8Max 750 / 1000 13 4.0 80
FXCM9070F-222T 9.00.5 x 7.00.5 x 4.8Max 1700 / 2200 50 3.0 80
FXCM9070F-272T 9.00.5 x 7.00.5 x 4.8Max 2000 / 2700 80 2.0 80
FXCM9070F-302T 9.00.5 x 7.00.5 x 4.8Max 2500 / 3000 80 2.0 80
FXCM9070F-301T 9.00.5 x 7.00.5 x 4.8Max 225 / 300 6 6 80
FXCM1211F FXCM1211F-800T 12.00.5 x 10.80.5 x 6.4Max 80 / 230 2.0 10.0 125 -40 to +125
FXCM1211F-301T 12.00.5 x 10.80.5 x 6.4Max 200 / 300 4.0 9.0 125
FXCM1211F-501T 12.00.5 x 10.80.5 x 6.4Max 300 / 500 5.5 8.0 125
FXCM1211F-701T 12.00.5 x 10.80.5 x 6.4Max 500 / 700 6.0 8.0 125
FXCM1211F-801T 12.00.5 x 10.80.5 x 6.4Max 600 / 800 8.0 8.0 125
FXCM1211F-102T 12.00.5 x 10.80.5 x 6.4Max 750 / 1000 14.0 6.0 125
FXCM1211F-222T 12.00.5 x 10.80.5 x 6.4Max 2200 / 2500 35.0 1.8 125
FXCM1211F-272T 12.00.5 x 10.80.5 x 6.4Max 2300 / 2700 50.0 1.5 125
FXCM1513CF FXCM1513CF-301T 15.00.5 x 13.00.5 x 6.6Max 250 / 300 5.0 5.0 80 -40 to +125
FXCM1513CF-551T 15.00.5 x 13.00.5 x 6.6Max 450 / 550 6.0 6.0 80
FXCM1513CF-601T 15.00.5 x 13.00.5 x 6.6Max 500 / 600 7.0 7.0 80
FXCM1513CF-701T 15.00.5 x 13.00.5 x 6.6Max 500 / 700 7.0 7.0 80
FXCM1513CF-102T 15.00.5 x 13.00.5 x 6.6Max 800 / 1000 12.0 10.0 80

Packaging Specifications

Series Reel Diameter (mm) Pieces per Reel Pieces per Inner Box Pieces per Outer Box
FXCM4520F 178 (7') 1000 4000 20000
FXCM7060F 330 (13') 1500 4500 22500
FXCM9070F 330 (13') 700 1400 7000
FXCM1211F 330 (13') 500 1000 5000
FXCM1513CF 330 (13') N/A N/A N/A

Tape Specifications: Tape width 24 mm, Distance 16 mm, Pull-of force 10~120g.


2410121730_cjiang-FXCM7060F-272T_C20624693.pdf
