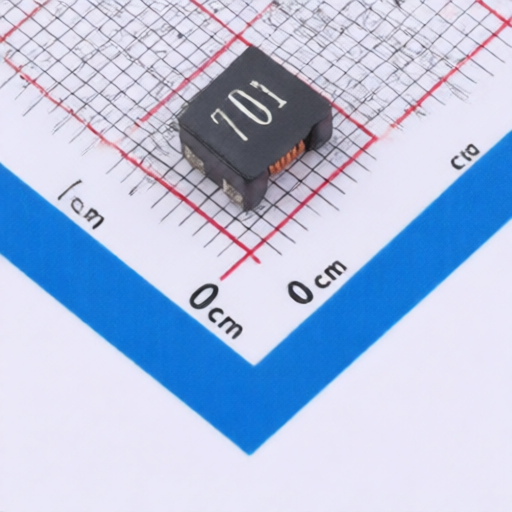

Electromagnetic interference suppression inductor KOHERelec SCM7060F-701Y with compact SMD packaging
Electromagnetic interference suppression inductor KOHERelec SCM7060F-701Y with compact SMD packaging
Specifications
Insulation Resistance(IR) :
10MΩ
Operating Temperature :
-55℃~+125℃
DC Resistance(DCR) :
15mΩ
Voltage Rating - DC :
80V
Number of Lines :
2
Description :
2Line Common Mode Choke Surface Mount 7.0x6.0x3.8mm 700Ω@100MHz 4A DCR 15mΩ
Mfr. Part # :
SCM7060F-701Y
Model Number :
SCM7060F-701Y
Package :
SMD-4P,7x6mm
Description

Product Overview

The KOHER Electronic SCM Series Common Mode Inductor is designed for effective common mode noise suppression. Featuring two coils with identical turns wound on the same magnetic core, it utilizes a compact SMD packaging process to save PCB space. This inductor operates within a wide temperature range of -55 to +125 and is ideal for EMI countermeasures in data lines, signal lines, and power lines. It is particularly suitable for suppressing electromagnetic interference in USB, CAN, IEEE194 (FireWire), HDMI, LVDS, and LAN circuits.

Product Attributes

  • Brand: KOHER Electronic
  • Origin: USA
  • Model Series: SCM Series
  • Package Type: SMD

Technical Specifications

Part No.Z TypZ MinIrAMax.(m)MinMMaxVTest Freq.
SCM7060F-141Y1401009101080100MHz
SCM7060F-301Y3002255101080100MHz
SCM7060F-351Y3502755101080100MHz
SCM7060F-601Y6005004151080100MHz
SCM7060F-701Y7005004151080100MHz
SCM7060F-102Y10008003171080100MHz
SCM7060F-132Y13009102.5211080100MHz

2410121519_KOHERelec-SCM7060F-701Y_C2762005.pdf
