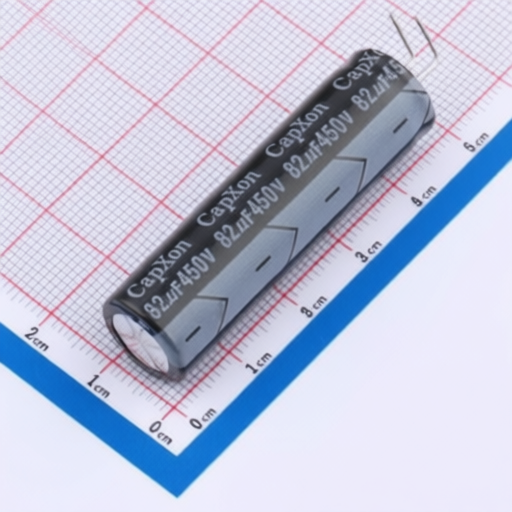

Slim aluminum electrolytic capacitor CapXon KY820M450I450ECLBV rated 450V DC with 105C temperature and THT mount
Slim aluminum electrolytic capacitor CapXon KY820M450I450ECLBV rated 450V DC with 105C temperature and THT mount
Specifications
Operating Temperature :
-40℃~+105℃
Capacitance :
82uF
Height - Seated (Max) :
45mm
Voltage Rating :
450V
Diameter :
13mm
Tolerance :
±20%
Description :
82uF 450V ±20% Through Hole,D13xL45mm Aluminum Electrolytic Capacitors RoHS
Mfr. Part # :
KY820M450I450ECLBV
Model Number :
KY820M450I450ECLBV
Package :
Through Hole,D13xL45mm
Description

Product Overview

The CapXon KY Series is a line of slim-size, 105C type aluminum electrolytic capacitors designed for THT (Through-Hole Technology) applications. These capacitors offer high reliability and are suitable for height-limited applications due to their slim design. They are available in high voltage versions and are rated for 2,000 hours of endurance at 105C.

Product Attributes

  • Brand: CapXon
  • Series: KY Series
  • Type: Aluminum Electrolytic Capacitor
  • Mounting Type: THT (Through-Hole Technology)
  • Temperature Rating: 105C
  • Endurance: 2,000 hours at 105C
  • Design: Slim size for height-limited applications
  • Key Features: High reliability, High voltage version

Technical Specifications

Specification Details
Operating Temperature Range -25 ~ +105C
Rated Voltage Range (VR) 250 ~ 450V DC
Surge Voltage (VS) (VR 315V): VS = 1.15VR; (VR > 315V): VS = 1.10VR
Capacitance Range (CR) 12 ~ 150F
Capacitance Tolerance (C) 20% (120Hz, 20C)
Leakage Current (ILEAK) 3 A (after 5 minutes at 20C with VR applied)
Dissipation Factor (tan) at 120Hz, 20C 15% (for 250-400V), 20% (for 420-450V)
Low Temperature Characteristics (Z-25C/Z+20C) at 120Hz 3 (for 250V), 8 (for 350-450V)
Shelf Life Test 1,000 hours at 105C (VR = 0)
Ripple Current Multiplier (Kf) vs. Frequency See table in source document for specific VR/Frequency values
Dimensions ( D x L) Refer to STANDARD RATINGS table for specific values per part number
Lead Diameter ( d) 0.5mm (for D=8mm), 0.6mm (for D=10mm, 13mm)
Lead Spacing (F) 3.5mm (for D=8mm), 5mm (for D=10mm, 13mm)
Lead Length (a) 2 1.5mm

Standard Ratings (Selected Examples)

Part Number VR (V DC) CR (F) D (mm) L (mm) IR Max. Ripple Current +105C, 120Hz (mA rms)
KY220M250F300A 250 22 8 30 200
KY151M250I400A 250 150 13 40 670
KY150M350F300A 350 15 8 30 145
KY101M350I450A 350 100 13 45 600
KY150M400F300A 400 15 8 30 170
KY101M400I450A 400 100 13 45 620
KY150M420F300A 420 15 8 30 150
KY101M420I500A 420 100 13 50 620
KY120M450F300A 450 12 8 30 135
KY820M450I450A 450 82 13 45 570

Precautions and Disclaimer

Unless otherwise agreed, products are subject to CapXon's "General Precautions and Guidelines" and "Packaging Information". All product-related data is subject to change without notice. Customers are responsible for validating product suitability for their intended applications and ensuring proper safeguards. Particular operating conditions and handling may affect performance and lifetime. Consult CapXon for lifetime estimation and failure mode considerations. For aerospace, military, life-saving, life-sustaining, safety-critical applications, or any application where failure may cause severe personal injury or death, consult CapXon before design-in. CapXon disclaims all warranties except for written expressed warranties.

For further information, visit www.capxongroup.com or contact CapXon directly.
