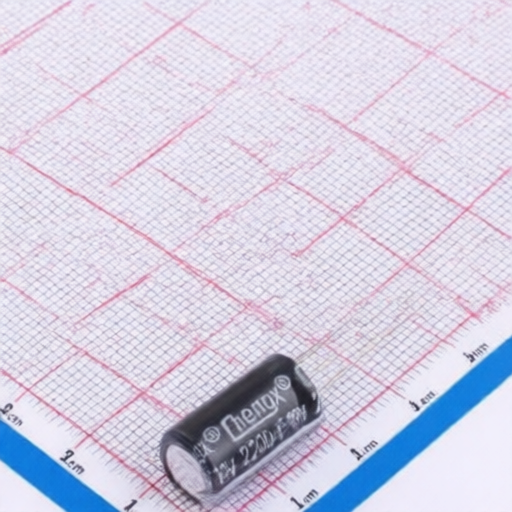

High Temperature Aluminum Electrolytic Capacitor Chengx KM228M010G17RR0VH2FP0 with 105 Degree Rating
High Temperature Aluminum Electrolytic Capacitor Chengx KM228M010G17RR0VH2FP0 with 105 Degree Rating
Specifications
Lifetime :
2000hrs@105℃
Capacitance :
2200uF
Height - Seated (Max) :
17mm
Pin Spacing :
5mm
Voltage Rating :
10V
Diameter :
10mm
Equivalent Series Resistance(ESR) :
-
Tolerance :
±20%
Ripple Current :
-
Description :
2200uF 10V Aluminum Electrolytic Capacitors Through Hole,D10xL17mm 2000hrs@105℃
Mfr. Part # :
KM228M010G17RR0VH2FP0
Model Number :
KM228M010G17RR0VH2FP0
Package :
Through Hole,D10xL17mm
Description

Aluminum Electrolytic Capacitors - KM Series

The KM Series Aluminum Electrolytic Capacitors are designed for reliable performance with a high-temperature rating of 105 and a life expectancy of 1000-2000 hours. These standard capacitors offer a wide operating temperature range from -40 to +105 and are suitable for various applications requiring stable electrical characteristics.

Product Attributes

  • Brand: Cheng Xing ()
  • Origin: Dongguan, China
  • Product Type: Aluminum Electrolytic Capacitor
  • Series: KM Series
  • Material: Aluminum

Technical Specifications

Item Performance Characteristics Details
Operating Temperature Range -40 ~ +105 -25 ~ +105
Rated Working Voltage Range 6.3 ~ 250V 350~ 450V
Nominal Capacitance Range 0.1 ~ 33000F
Capacitance Tolerance 20% (120Hz, +20)
Leakage Current L0.01CV or 3(A), l0.03cv+40(A) (Whichever is greater, measured after 2 minutes at rated voltage, +20)
tan (max) @ 120Hz, +20 0.26 (6.3V) to 0.08 (100V) 0.20 (160V) to 0.24 (450V)
Low Temperature Characteristics (120Hz) Z-25/Z+20: 5 (6.3V) to 2 (100V) Z-40/Z+20: 10 (6.3V) to 3 (100V)
Load Life 1000Hrs (D6.3), 2000Hrs (D8) at 105 Capacitance change within 20%, tan 200% of initial, LC initial specified value
Shelf Life 1000 Hrs at 105 (no load) Capacitance change within 20%, tan 200% of initial, LC initial specified value

Dimensions and Ripple Current

Voltage (Code) Capacitance (F) D x L (mm) Ripple Current (mA/rms @ 120Hz, 105)
6.3V4.75*1126
105*1135
225*1154
475*1165
1005*1195
16V4.75*1138
105*1157
225*1175
475*1184
1006.3*12159
50V105*1154
225*1179
476.3*12133
1008*12229
22010*17363
160V108*1260
2210*17110
4710*20185
10013*20330
22016*30480
400V16.3*1218
4.710*1752
1013*20105
2213*25140
4716*25215
