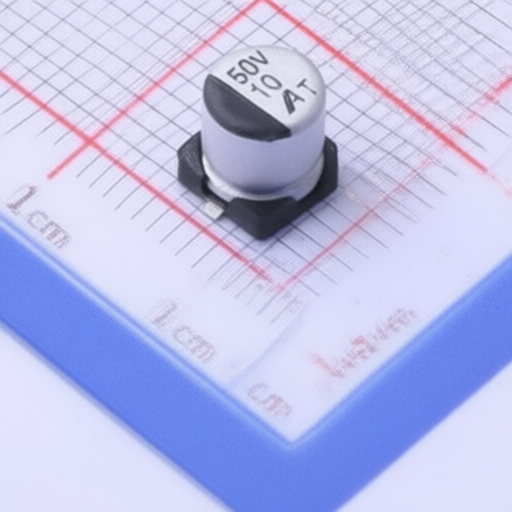

Surface Mount Aluminum Electrolytic Capacitor 10uF 50V HRK GVT1H106M0506CNVC High Reliability
Surface Mount Aluminum Electrolytic Capacitor 10uF 50V HRK GVT1H106M0506CNVC High Reliability
Specifications
Operating Temperature :
-55℃~+105℃
Lifetime :
2000hrs@105℃
Capacitance :
10uF
Height - Seated (Max) :
5.7mm
Voltage Rating :
50V
Diameter :
5mm
Tolerance :
±20%
Ripple Current :
18mA@120Hz
Description :
10uF ±20% 50V Aluminum Electrolytic Capacitors 2000hrs@105℃
Mfr. Part # :
GVT1H106M0506CNVC
Model Number :
GVT1H106M0506CNVC
Package :
SMD,D5xL5.7mm
Description

Product Overview

The GVT1H106M0506CNVC is an Aluminum Electrolytic Capacitor (Al-Ecap) designed for surface mounting on high-density PC boards. It offers a capacitance of 10uF at a rated voltage of 50V with a tolerance of 20%. This capacitor is built for demanding applications, featuring a wide operating temperature range of -55 to +105 and a long lifespan of 2,000 hours at 105. Its compact D5x5.7mm SMD package makes it suitable for space-constrained designs.

Product Attributes

  • Brand: GVT
  • Type: Al-Ecap
  • Compliance: RoHS, Halogen-free

Technical Specifications

Item Specification
Part Number GVT1H106M0506CNVC
Capacitance (CR) 10 uF (120Hz, 20)
Rated Voltage (VR) 50 VDC
Category Temperature Range -55 ~ +105
Capacitance Tolerance -20% ~ +20% (120Hz, 20)
Surge Voltage (VS) 57.5 VDC
Leakage Current (ILC) 5 uA (After 2 minutes)
Dissipation Factor (Tan) 0.14 (120Hz, 20)
Ripple Current (IRC, rms) 18 mA (120Hz, 105)
Endurance 2,000 Hrs at 105
Shelf Life Test 1,000 Hrs at 105
Capacitance Change (Endurance/Shelf Life) Within 20% of initial Value
Tan Change (Endurance/Shelf Life) Less than 200% of specified Value
Leakage Current Change (Endurance/Shelf Life) Within specified Value
Impedance ratio Z(-25)/ Z(+20) Max. 2
Impedance ratio Z(-55)/ Z(+20) Max. 3
Dimensions (DxH) 5x5.7 mm
Standards JIS C 5101-1, -18, IEC 60384-4
Publication Date 2022-02-15

2410121335_HRK-GVT1H106M0506CNVC_C2983376.pdf
