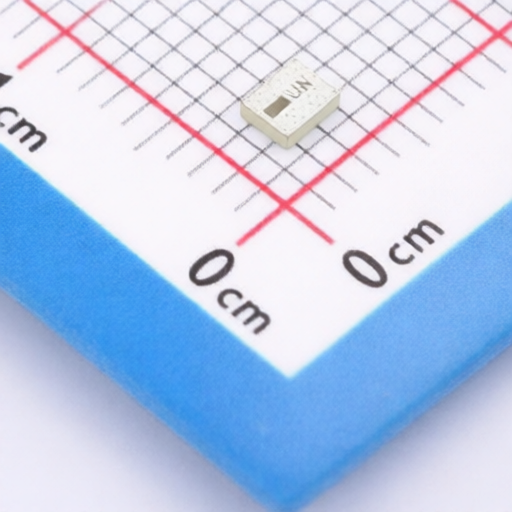

Mini-Circuits BFCQ-2702 LTCC Band Pass Filter with Shielded Construction and Low Typical Passband Loss
Mini-Circuits BFCQ-2702 LTCC Band Pass Filter with Shielded Construction and Low Typical Passband Loss
Specifications
Impedance :
50Ω
Insertion Loss :
1.5dB
Type of Filter :
Bandpass Filter
Bandwidth :
22000MHz~31000MHz
Frequency - Center :
26.1GHz
Description :
50Ω 1.5dB 22000MHz~31000MHz 26.1GHz SMD-3P,2.5x2mm Ceramic Filters RoHS
Mfr. Part # :
BFCQ-2702+
Model Number :
BFCQ-2702+
Package :
SMD-3P,2.5x2mm
Description

Product Overview

The BFCQ-2702+ is an LTCC Band Pass Filter designed for miniature size and high performance repeatability. It utilizes a proprietary LTCC material system and distributed filter topology, offering a typical passband loss as low as 1.5 dB across the 22.0 31.0 GHz range. The filter provides typical stopband rejections of 43 dB up to 48 GHz, handles up to 1W RF input power, and operates within a wide temperature range of -55 to +125C. This filter ensures repeatable performance on a lot-to-lot basis.

Key Features & Advantages

  • Cost effective due to scalable LTCC technology and ease of high-quantity production.
  • Small size (2.5mm x 2.0mm) enables high circuit board layout density and minimizes parasitic effects.
  • Surface mountable, suitable for high-volume automated assembly processes.
  • Standard small 1008 case style.
  • Low Insertion Loss: 1.5 dB typical mid-band.
  • Shielded construction prevents filter de-tuning.
  • Reduced footprint area using LGA (land grid array).
  • Pick and place standard case style.

Applications

  • Test and Measurement

Product Attributes

  • Brand: Mini-Circuits
  • Model: BFCQ-2702+
  • Material: Ceramic (LTCC)
  • Impedance: 50
  • Case Style: NL1008C-6
  • Origin: USA (implied by P.O. Box and phone number)

Technical Specifications

Parameter Frequency (GHz) Min. Typ. Max. Units Notes
Passband Center Frequency 22 31 26.1 GHz
Insertion Loss 22 31 1.5 2.75 dB Measured on Mini-Circuits Test Board TB-BFCQ-2702C+ with connectors and feedlines de-embedded.
Return Loss 22 31 11 dB
Stop Band, Lower Insertion Loss 0.1 14 32 42 dB
Stop Band, Lower Insertion Loss 14 17.1 20 27 dB
Stop Band, Upper Insertion Loss 35.7 38 20 43 dB
Stop Band, Upper Insertion Loss 38 - 48 33 43 dB
Operating temperature -55 +125 C
Storage temperature -55 +125 C
RF Power Input 1 W Maximum

2411011429_Mini-Circuits-BFCQ-2702-_C7086495.pdf
