Frequency Control SAW Resonator ABRACON ASR390E-T 390 MHz Single Port Compact SMD Package Device
Frequency Control SAW Resonator ABRACON ASR390E-T 390 MHz Single Port Compact SMD Package Device
Specifications
Description :
SMD5050-8P Resonators RoHS
Mfr. Part # :
ASR390E-T
Model Number :
ASR390E-T
Package :
SMD5050-8P
Description

Product Overview

The ASR390E is a 390 MHz SAW Resonator from Abracon, a company certified to ISO 9001 / QS 9000 standards. This single-port resonator is designed for applications requiring precise frequency control, featuring a compact 5 x 5 x 1.5mm SMD package. It is suitable for commercial and industrial applications.

Product Attributes

  • Brand: ABRACON
  • Certifications: ISO 9001 / QS 9000 Certified, ISO 9001:2008 Certified, RoHS Compliant
  • Product Type: SAW Resonator
  • Port Configuration: One Port
  • Frequency: 390 MHz
  • Package Type: SMD
  • Marking: 390R (Frequency), A ZYX (Date code and traceability code)
  • Electrostatic Sensitivity: Electrostatic Sensitive Device. Handle with precaution.
  • Application Suitability: Commercial, Industrial. Not designed for , Aviation, Aerospace, Life-dependent Medical applications or any application requiring high reliability where component failure could result in loss of life and/or property without written consent from Abracon Corporation.

Technical Specifications

Specification Value
Model Number ASR390E
Dimensions (L x W x H) 5 x 5 x 1.5mm (0.20 x 0.20 x 0.059 inches max.)

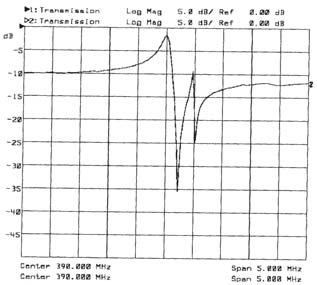

Center Frequency (Fo) 390.0 MHz
Tolerance from Fo 75 KHz
Insertion Loss (Max.) 1.0 dB
Quality Factor Unloaded 11,500
Quality Factor 50 loaded 1,800
Temperature Stability 25 ppm/C
Turnover Temperature Fo+7.7 C
Turnover Frequency 0.037 MHz
Freq. Temp. Coefficient 22 ppm/C
Frequency Aging (1 year) 83 ppm/year
DC Insulation Resistance (Min.) 100 M
RF Equivalent RLC Model Motional Resistance (R1) 3.0
RF Equivalent RLC Model Motional Inductance (L1) 0.037 H
RF Equivalent RLC Model Motional Capacitance (C1) 22 fF
RF Equivalent RLC Model Shunt Capacitance (C0) 83 fF
Operating Temperature -45C to +85C
Storage Temperature -45C to +85C
Max. Rating DC voltage 10 V
Max. Rating RF Power Dissipation 0 dBm
Pin Connections (Pin 1, 2, 7, 8) GND
Pin Connections (Pin 3, 5) Input
Pin Connections (Pin 4, 6) Output
Pin Connections (Case) GND
Data Measured With Source Impedance: Zs=50, Load Impedance: ZL=50, TA=25C
