Frequency Stabilization Component Qualcomm B39431R920H110 SAW Resonator with Lead Free Soldering Support
Frequency Stabilization Component Qualcomm B39431R920H110 SAW Resonator with Lead Free Soldering Support
Specifications
Frequency :
-
Static Capacitance :
-
Resonant Impedance :
-
Description :
Resonators RoHS
Mfr. Part # :
B39431R920H110
Model Number :
B39431R920H110
Description

SAW Resonator R920

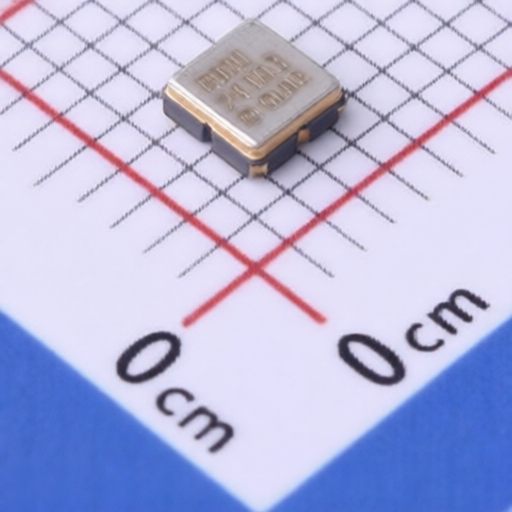

The SAW resonator R920 is a 1-port resonator designed for reliable, fundamental mode quartz frequency stabilization in applications such as transmitters or local oscillators. It features a compact 3.0 x 3.0 x 1.0 mm3 package suitable for Surface Mount Technology (SMT), with Ni, gold-plated terminals for lead-free soldering compatibility. This AEC-Q200 qualified component is also RoHS compatible and an Electrostatic Sensitive Device (ESD).

Product Attributes

  • Brand: EPCOS AG (a TDK Group Company)
  • Series/Type: R920
  • Ordering Code: B39431R 920H110
  • Package Code: DCC6E
  • Certifications: AEC-Q200 qualified
  • Material: Ni, gold-plated terminals
  • Compatibility: RoHS compatible, Lead free soldering compatible with J-STD20C
  • Weight: Approx. 0.037 g

Technical Specifications

CharacteristicReferenceMin.Typ.Max.Unit
Center frequency1)TA = 25 C, ZS = 50 , ZL = 50 433.845433.920433.995MHz
Minimum insertion attenuationTA = 25 C, ZS = 50 , ZL = 50 1.41.8dB
Unloaded quality factorTA = 25 C, ZS = 50 , ZL = 50 850012500
Ageing of fCTA = 25 C, ZS = 50 , ZL = 50 50/+50ppm
Motional capacitance C1TA = 25 C, ZS = 50 , ZL = 50 1.68fF
Motional inductance L1TA = 25 C, ZS = 50 , ZL = 50 79.86H
Motional resistance R1TA = 25 C, ZS = 50 , ZL = 50 1725
Parallel capacitance C02)TA = 25 C, ZS = 50 , ZL = 50 2.4pF
Temperature coefficient of frequency3)TA = 25 C, ZS = 50 , ZL = 50 0.032ppm/K2
Turnover temperature T0TA = 25 C, ZS = 50 , ZL = 50 1030C

Maximum Ratings

ParameterSymbolMin.Max.Unit
Operable temperature rangeT45+125C
Storage temperature rangeTstg45+125C
DC voltageVDC12V
Source powerPS0dBm

2504101957_Qualcomm-B39431R920H110_C2763956.pdf
