Rotary Potentiometer Sensor Sensata 9856R5KL2.0 Featuring Sealed Connector and Durable Construction
Rotary Potentiometer Sensor Sensata 9856R5KL2.0 Featuring Sealed Connector and Durable Construction
Rotary Potentiometer Sensor Sensata 9856R5KL2.0 Featuring Sealed Connector and Durable Construction
Rotary Potentiometer Sensor Sensata 9856R5KL2.0 Featuring Sealed Connector and Durable Construction
Rotary Potentiometer Sensor Sensata 9856R5KL2.0 Featuring Sealed Connector and Durable Construction
Rotary Potentiometer Sensor Sensata 9856R5KL2.0 Featuring Sealed Connector and Durable Construction
Specifications
Tolerance :
±20%
Power(Watts) :
150mW
Number of Turns :
1
Resistance :
5kΩ
Description :
5kΩ ±20% 150mW Potentiometers, Variable Resistors
Mfr. Part # :
9856R5KL2.0
Model Number :
9856R5KL2.0
Description

Product Overview

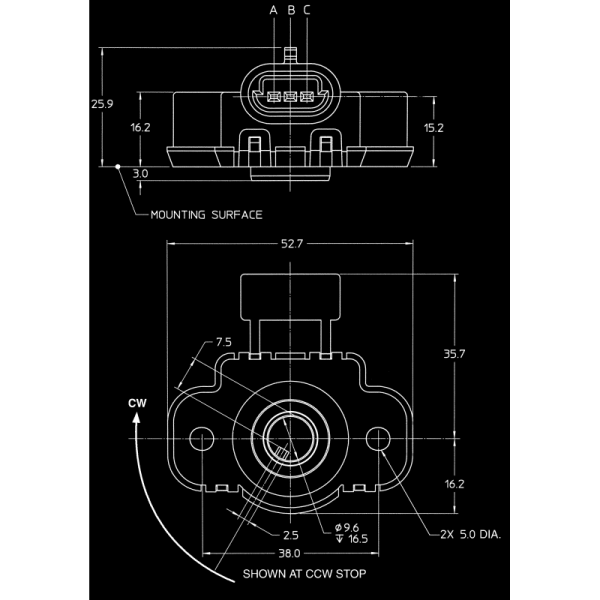

The 9850 Gen II Series is a highly reliable rotary potentiometer sensor module designed for easy integration into space-conscious applications. It offers installation simplicity, long service life, and repeatable accuracy. This series features a new, lower profile (15.2mm) and is designed to perform in demanding environments. Manufactured for cost-effectiveness, it provides durable design strengths that can lead to significant system cost savings. The sensor features plug-in simplicity and sealed connector contacts via an integral right-angle connector receptacle compatible with industry-standard Packard Electric METRI-Pack connectors, eliminating weak points and leaks in water exposure. Twelve standard models offer a choice of 180 or 120 mechanical rotation with round or slotted mounting holes for optimal installation alignment.

Product Attributes

  • Brand: Sensata
  • Product Line: 9850 Gen II Series
  • Connector Interface: Packard Electric METRI-Pack Series 150
  • Technology: Proprietary Thick Film Element & Precious Metal Contact Technology

Technical Specifications

ModelOutput TypeMechanical Rotation (Nominal)Active Electrical RotationRotation DirectionMounting HoleTotal ResistanceLinearity (Std.)Power Rating @ 70CMechanical LifeStop Strength (max)Torque (max)Mounting Torque (max)Temperature LimitsVibrationHumidityShock (max)
9851Single12085CWS5,000 ohms 20%2.0% (Independent)0.15 Watts1,000,000 full cycles / 5,000,000 dither cycles0.68 Nm0.11 Nm1.35 Nm-40C to +125C15 Gs, 50 to 1,000 Hz95% @ 40C50 Gs
9852Single12085CCWS
9853Single12085CWR
9854Single12085CCWR
9855Single180130CWS
9856Single180130CCWS
9857Single180130CWR
9858Single180130CCWR
9861Dual12085CWS5,000 ohms 20%0.5% (Independent)0.15 Watts1,000,000 full cycles / 5,000,000 dither cycles0.68 Nm0.11 Nm1.35 Nm-40C to +125C15 Gs, 50 to 1,000 Hz95% @ 40C50 Gs
9862Dual12085CCWS
9863Dual12085CWR
9864Dual12085CCWR

2411220430_Sensata-9856R5KL2-0_C6109087.pdf
