Product Overview

The P260/P261 Series Panel Potentiometers are 12.7mm (1/2) square rotary potentiometers featuring a metal shaft and bushing. They offer options for audio and linear resistance tapers, flatted and slotted shafts, and are suitable for applications such as electric guitars, amplifiers, mixers, drum machines, and synthesizers. Key features include a sealed/dust-proof design, 1,000,000 cycle life, and an optional rotary switch.

Product Attributes

  • Brand: TT electronics
  • Model Series: P260 / P261
  • Origin: USA (Implied by address)
  • Certifications: Meets MIL-PRF-94 requirements

Technical Specifications

CharacteristicSpecificationDetails
Resistance Range500 - 1M (for B taper)2K - 1M (for other tapers)
Standard Resistance Tolerance10%
Residual Resistance (Max)2
Resistance TaperAudio (A, C, D), Linear (B)See note 3
Maximum Operating Voltage350 Vac
Rated Power0.5W (B taper), 0.25W (other tapers)
Dielectric Strength1,500 Vacsea level
Nominal Electrical Travel265
Insulation Resistance1,000 M
Gang Error (Dual Unit)3dB(-40dB to 0dB)
Operating Temperature-55C to +125C

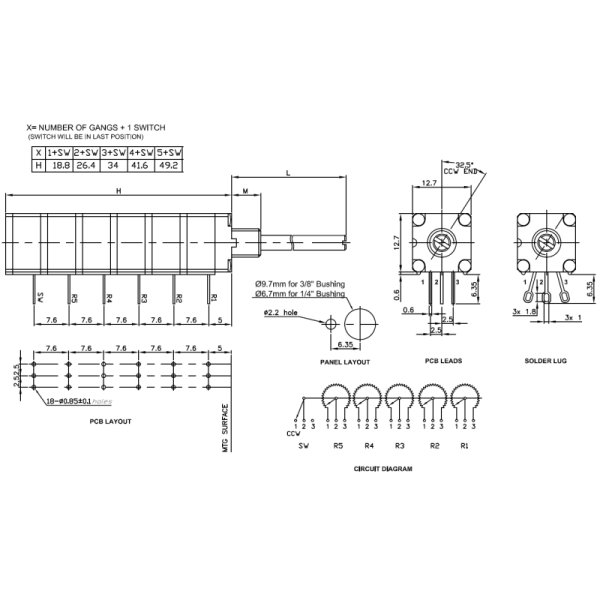

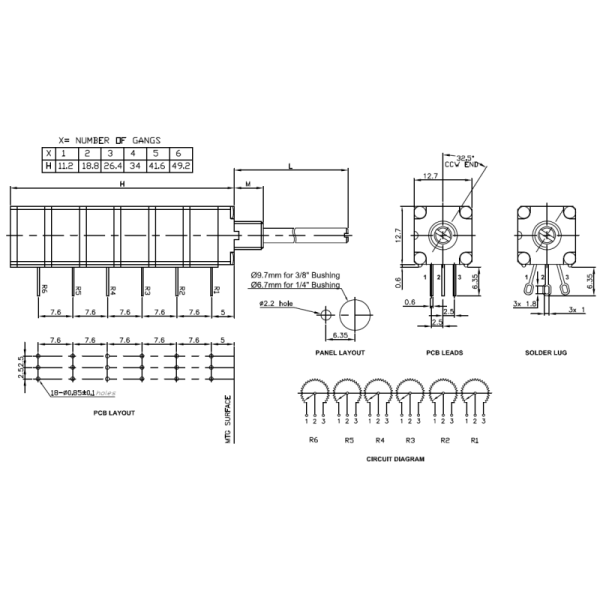

IP RatingSealed = IP66, Dust proof = IP50
Soldering ConditionWave Soldering: 260C max for 1-3 secHand Soldering: 300C max for 3 sec
RoHSRefer to TT Electronics Website
REACHRefer to TT Electronics Website
Mechanical Travel (Rotational angle)295 10
Rotational Torque (Max)108 gf.cm(36 gf.cm in each additional gang)
Rotational Stop Strength2,880 gf.cm
Detent Torque (Min)144 gf.cm
Nut Tightening Strength8 kgf.cm minimum
Rotational Life1,000,000 cycles
Switch Circuit (if applicable)SPDT
Contact Resistance (Max)150 m
Rated Power (Switch)0.5 A at 30 Vdc
Switch Life50,000 cycles
Hardware (Standard Packaging)A (3.2mm) Shaft: Lockwasher and Mounting NutB (6.35mm) Shaft: Flat Washer, Lockwasher, and Mounting Nut
Total Resistance Codes1K, 2K, 5K, 10K, 20K, 50K, 100K, 200K, 500K, 1MEG
Resistance Taper CodesA = Audio (15A), B = Linear (1B), C = Reverse Audio (15C), D = Audio (10A)(See Note 4)
Shaft Type CodesS = Slotted, F = Flatted(See Note 2)
Shaft Length CodeL(See Note 2)
Part FamilyP260, P261
Style OptionsP - Potentiometer, S - with Switch, D - with Detent Module, T - Top Adjust, L - with Lead Wires, R - with Ribbon Cable
Seal TypeS = Sealed, D = Dust Proof
Number of GangsUp to 6(2 max on T style, 5 max on S style)
Detent Options (D style only)No Detent, 1 = Center Detent, 2 = 11 Detents, 3 = 21 Detents
Bushing and Shaft SizeA = 3.2mm shaft, B = 6.35mm shaft(See Note 1)

2411220418_TT-Electronics-P260S-D1AS3CB5K_C17435949.pdf
