Specifications
Tolerance :
±20%
Power(Watts) :
100mW
Number of Turns :
1
Resistance :
100kΩ
Description :
100kΩ ±20% 100mW Potentiometers, Variable Resistors
Mfr. Part # :
P170S-FC15BR100K
Model Number :
P170S-FC15BR100K
Description

Product Overview

The P170 is a 17mm panel potentiometer designed for high-quality, long-lasting panel controls. It features a conductive plastic element, a 100,000 cycle life, and offers a switch option. Available with metal shafts and bushings, this RoHS-compliant potentiometer is customizable to serve both commercial applications and high-performance position sensing.

Product Attributes

  • Brand: TT electronics
  • Model: P170
  • Origin: Mexicali, B.C. Mexico
  • Element: Conductive plastic
  • Shaft/Bushing: Metal
  • Certifications: RoHS compliant

Technical Specifications

ModelDescriptionResistance Range (Ohms)Resistance TolerancePower Rating (Watts)Rotational Life (Potentiometer)Switch Option
P170NSide adjust, Solder lugs100-1M (B taper), 5K-1M (other tapers)20%0.1W (B taper), 0.05W (other tapers)100,000 cyclesNo
P170SSide adjust, Solder lugs with switch100-1M (B taper), 5K-1M (other tapers)20%0.1W (B taper), 0.05W (other tapers)100,000 cyclesYes
P170N2Side adjust, PCB pins100-1M (B taper), 5K-1M (other tapers)20%0.1W (B taper), 0.05W (other tapers)100,000 cyclesNo

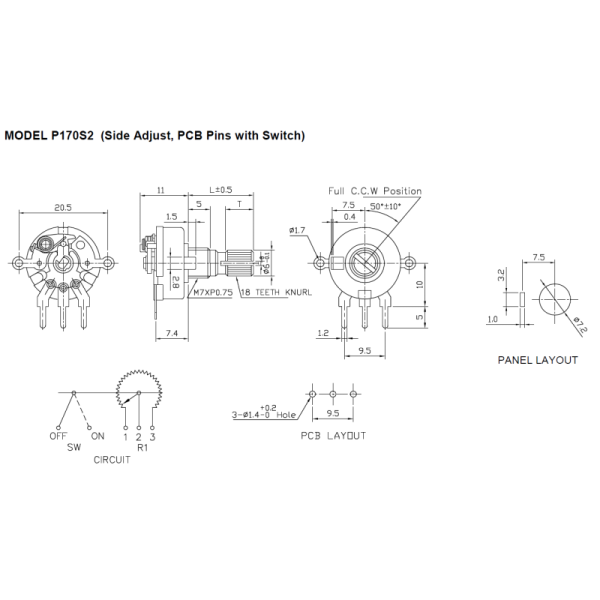

P170S2Side adjust, PCB pins with switch100-1M (B taper), 5K-1M (other tapers)20%0.1W (B taper), 0.05W (other tapers)100,000 cyclesYes
P170NP1Top adjust, PCB pins100-1M (B taper), 5K-1M (other tapers)20%0.1W (B taper), 0.05W (other tapers)100,000 cyclesNo

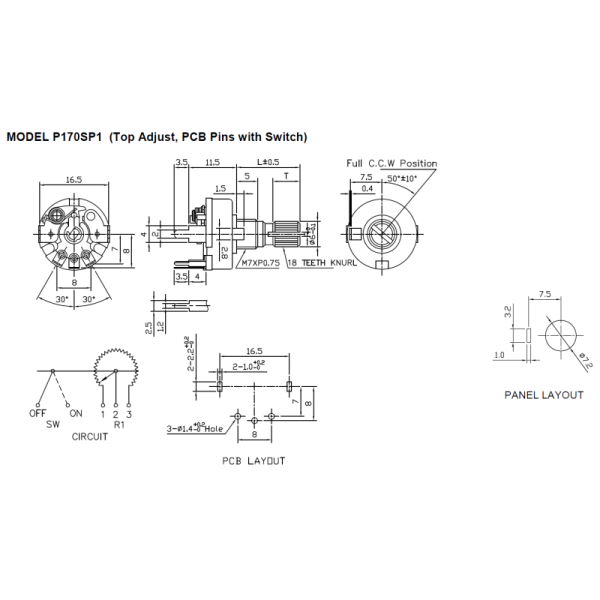

P170SP1Top adjust, PCB pins with switch100-1M (B taper), 5K-1M (other tapers)20%0.1W (B taper), 0.05W (other tapers)100,000 cyclesYes
P170NPDRear adjust, PCB pins100-1M (B taper), 5K-1M (other tapers)20%0.1W (B taper), 0.05W (other tapers)100,000 cyclesNo

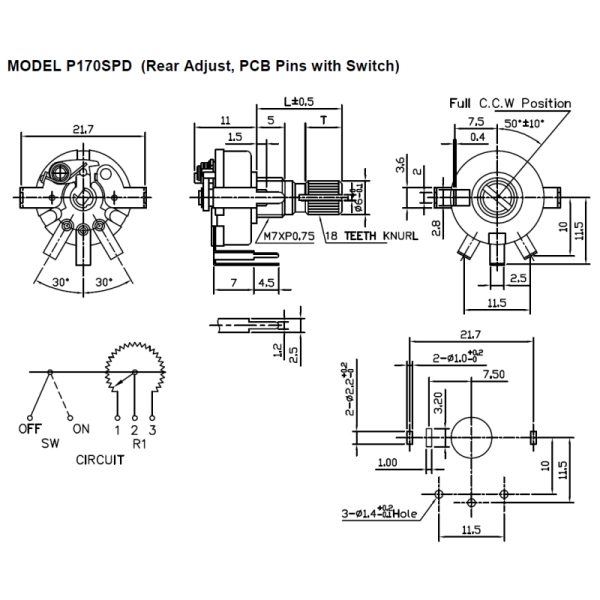

P170SPDRear adjust, PCB pins with switch100-1M (B taper), 5K-1M (other tapers)20%0.1W (B taper), 0.05W (other tapers)100,000 cyclesYes

2411220432_TT-Electronics-P170S-FC15BR100K_C17499666.pdf
