Metal shaft rotary potentiometer TT Electronics P260S-D1AS3CB10K sealed design ideal for mixers synthesizers and drum machine
Metal shaft rotary potentiometer TT Electronics P260S-D1AS3CB10K sealed design ideal for mixers synthesizers and drum machine
Metal shaft rotary potentiometer TT Electronics P260S-D1AS3CB10K sealed design ideal for mixers synthesizers and drum machine
Metal shaft rotary potentiometer TT Electronics P260S-D1AS3CB10K sealed design ideal for mixers synthesizers and drum machine
Metal shaft rotary potentiometer TT Electronics P260S-D1AS3CB10K sealed design ideal for mixers synthesizers and drum machine
Metal shaft rotary potentiometer TT Electronics P260S-D1AS3CB10K sealed design ideal for mixers synthesizers and drum machine
Specifications
Tolerance :
±10%
Power(Watts) :
500mW
Number of Turns :
1
Resistance :
10kΩ
Description :
10kΩ ±10% 500mW Potentiometers, Variable Resistors
Mfr. Part # :
P260S-D1AS3CB10K
Model Number :
P260S-D1AS3CB10K
Description

Product Overview

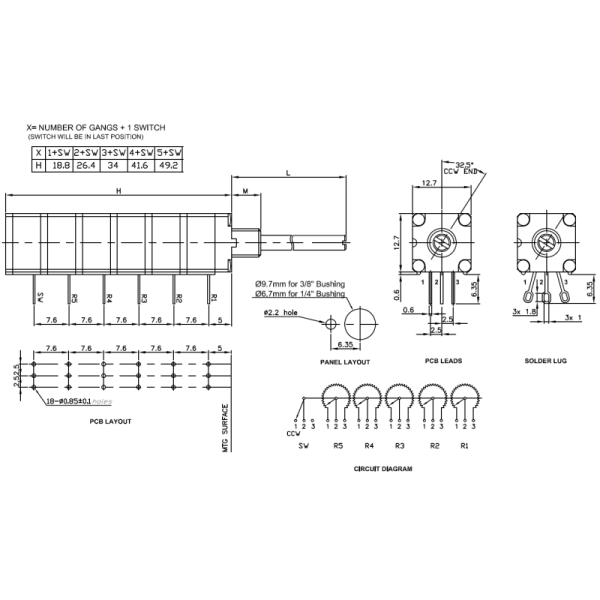

The P260/P261 Series panel potentiometers from TT Electronics are 12.7mm (1/2) square rotary potentiometers featuring metal shafts and bushings. They offer options for audio and linear resistance tapers, flatted and slotted shafts, and are suitable for applications such as electric guitars, amplifiers, mixers, drum machines, and synthesizers. Key features include a sealed/dust-proof design, a 1,000,000 cycle life, and an optional rotary switch.

Product Attributes

  • Brand: TT electronics
  • Series: P260 / P261
  • Origin: USA (Implied by address)
  • Material: Metal shaft and bushing
  • Certifications: MIL-PRF-94 requirements

Technical Specifications

CharacteristicSpecificationDetails
Electrical CharacteristicsResistance Range500-1M (for B taper), 2K-1M (for other tapers)
Standard Resistance Tolerance10%
Residual Resistance (Max)2
Resistance TaperAudio (A, C, D), Linear (B)
Rated Power0.5W (B taper), 0.25W (other tapers)
Insulation Resistance1,000 M
Mechanical CharacteristicsMechanical Travel (Rotational angle)295 10
Rotational Torque (Max)108 gf.cm (36 gf.cm in each additional gang)
Rotational Stop Strength2,880 gf.cm
Rotational Life1,000,000 cycles
Nut Tightening Strength8 kgf.cm minimum
Environmental CharacteristicsOperating Temperature-55C to +125C
IP RatingSealed = IP66, Dust proof = IP50
Soldering Condition (Wave)260C maximum for 1-3 seconds
Soldering Condition (Hand)300C maximum for 3 seconds
Switch Characteristics (Optional)Switch CircuitSPDT
Contact Resistance (Max)150 m
Rated Power0.5 A at 30 Vdc
Switch Life50,000 cycles
HardwareShaft Diameter3.2mm (A), 6.35mm (B)
Included Hardware (A)Lockwasher and Mounting Nut
Included Hardware (B)Flat Washer, Lockwasher, and Mounting Nut

2411220418_TT-Electronics-P260S-D1AS3CB10K_C17589474.pdf
