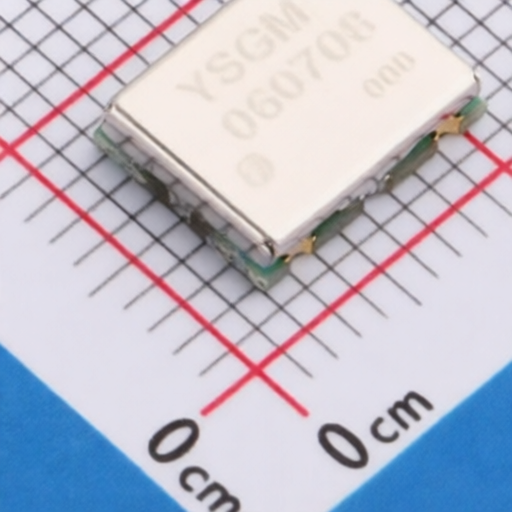

Voltage controlled oscillator INNOTION YSGM060708 with stable output power and compact SMT package design
Voltage controlled oscillator INNOTION YSGM060708 with stable output power and compact SMT package design
Specifications
Description :
SMD9070-8P VCOs (Voltage Controlled Oscillators) RoHS
Mfr. Part # :
YSGM060708
Model Number :
YSGM060708
Package :
SMD9070-8P
Description

Product Overview

The INNOTION YSGM060708 is a voltage-controlled oscillator (VCO) designed for high output power and superior isolation. It operates within a standard 5V supply, with a compatible range of 4.2V to 6V. The VCO features an extensive tuning voltage span of 0-5V for broadband frequency output. Integrated filter and impedance matching circuits minimize the need for external components, ensuring consistent output power stability. The device is housed in a compact 7mm9mm2mm SMT package, suitable for space-efficient integration.

Product Attributes

  • Brand: INNOTION
  • Model: YSGM060708
  • Origin: China (implied by .cn domain and contact details)

Technical Specifications

SpecificationValueUnitCondition
Frequency Range550-760MHz@VT=0V5V
Output Power8dBm@VCC=5V
Ripple (BW200MHz)1dB
Supply Voltage (VCC)4.2~6V
Supply Current18mA@VCC=5V
Harmonic Suppression (2nd)-20dBc
Harmonic Suppression (3rd)-40dBc
Load Impedance50
Package7mm9mm2mm SMT
Tune Voltage0~5V
Operating Ambient Temperature-40~+85C
Storage Temperature-40~+150C
Lower Frequency545-555MHzVT=0V
Upper Frequency755-765MHzVT=5V
Pushing (VCC)4MHz/VVT=5V
Pulling (VSWR)18MHz ppVSWR=3:1
Drift Rate0.03-0.07MHz/C

2510101615_INNOTION-YSGM060708_C52043339.pdf
