Description

Product Overview

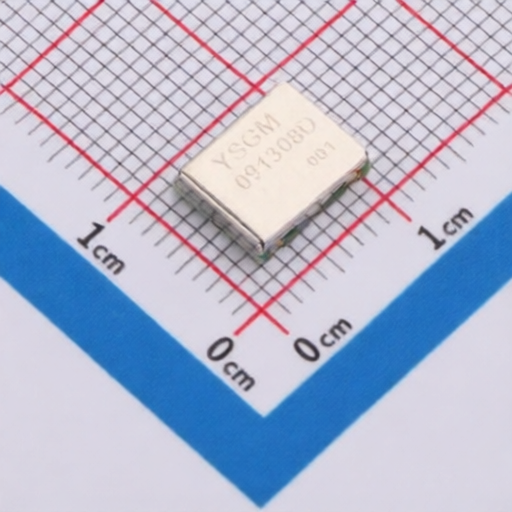

The INNOTION YSGM091308D is a voltage-controlled oscillator (VCO) designed for high output power and superior isolation. It operates within a standard 5V supply range (4.2V to 6V) and features an extensive tuning voltage span of 0-5V for broadband frequency output. With a built-in filter and impedance matching circuit, it minimizes the need for external components and ensures consistent output power stability. The oscillator is designed for easy integration into space-efficient applications, housed in a compact 7mm9mm2mm SMT package and readily connectable to a 50 load.

Product Attributes

  • Brand: INNOTION
  • Model: YSGM091308D
  • Origin: Innotion, Inc.
  • Package: 7mm9mm2mm SMT

Technical Specifications

SpecificationUnitConditionMin.Typ.Max.
Frequency RangeMHz@VT=0V5V8901280
Output PowerdBm@VCC=5V6
Ripple (BW200MHz)dB1.5
Supply VoltageV4.26
Supply CurrentmA@VCC=5V12
Harmonic Suppression (2nd)dBc-14
Harmonic Suppression (3rd)dBc-26
Load Impedance50
Tune VoltageV05
Lower FrequencyMHzVT=0V870890900
Upper FrequencyMHzVT=5V127012801290
Pushing (VCC)MHz/VVT=5V2
Pulling (VSWR)MHzVSWR=3:13
Drift RateMHz/C0.10.2
Storage TemperatureC-40+150
Operating Ambient TemperatureC-40+85
Supply Voltage (Absolute Max)V4.26
Tune Voltage (Absolute Max)V05

2510101615_INNOTION-YSGM091308D_C52043346.pdf
