Description

Product Overview

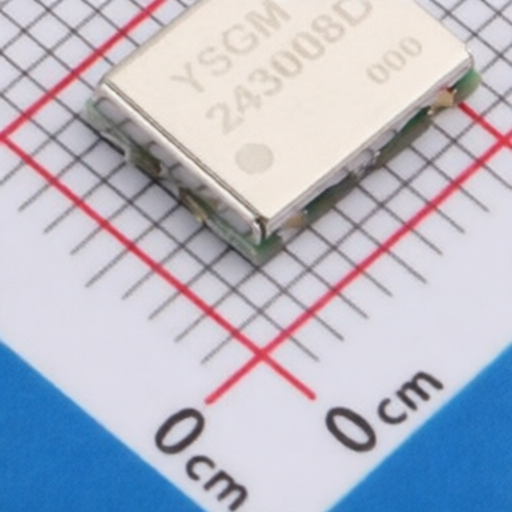

The INNOTION YSGM243008D is a voltage-controlled oscillator (VCO) designed for high-performance applications. It features a stable oscillation circuit, delivering high output power and superior isolation. With a standard 5V supply (compatible with 4.2-6V) and a broad tuning voltage span of 0-5V, it enables broadband frequency output. Integrated filter and impedance matching circuits minimize the need for external components, ensuring consistent output power stability. The VCO is designed for a 50 load and comes in a compact 7mm9mm2mm SMT package for ease of integration and space efficiency.

Product Attributes

  • Brand: INNOTION
  • Model: YSGM243008D
  • Type: Voltage-Controlled Oscillator (VCO)
  • Package: 7mm9mm2mm SMT
  • Origin: Innotion, Inc.

Technical Specifications

SpecificationUnitConditionMin.Typ.Max.
Frequency RangeMHz@VT=0V5V230310
Output PowerdBm@VCC=5V9
Ripple (BW200MHz)dB0.5
Supply Voltage (VCC)V4.26
Supply CurrentmA@VCC=5V16
Harmonic Suppression (2nd)dBc-20
Harmonic Suppression (3rd)dBc-20
Load Impedance50
Tune VoltageV05
Supply VoltageV4.26
Operating Ambient TemperatureC-40+85
Storage TemperatureC-40+150
Lower FrequencyMHzVT=0V230235
Upper FrequencyMHzVT=5V310
Power OutputdBmVCC=5V+9
Supply CurrentmA16
Open&Load Leakage Current(VT)AVT=5V10
PushingVCCMHz/VVT=5V0.50.7
PullingVSWRMHz ppVSWR=3:112
Drift RateMHz/C0.010.04
