MSTM MST8011AI-22-33N8.388608 Oscillator Featuring Halogen Free Design for Industrial and Medical Equipment
MSTM MST8011AI-22-33N8.388608 Oscillator Featuring Halogen Free Design for Industrial and Medical Equipment
MSTM MST8011AI-22-33N8.388608 Oscillator Featuring Halogen Free Design for Industrial and Medical Equipment
MSTM MST8011AI-22-33N8.388608 Oscillator Featuring Halogen Free Design for Industrial and Medical Equipment
MSTM MST8011AI-22-33N8.388608 Oscillator Featuring Halogen Free Design for Industrial and Medical Equipment
MSTM MST8011AI-22-33N8.388608 Oscillator Featuring Halogen Free Design for Industrial and Medical Equipment
Specifications
Frequency Stability :
±25ppm
Output Type :
LVCMOS;HCMOS
Voltage - Supply :
3.3V
Frequency :
8.388608MHz
Description :
±25ppm 3.3V 8.388608MHz SMD3225-4P Programmable Oscillators RoHS
Mfr. Part # :
MST8011AI-22-33N8.388608
Model Number :
MST8011AI-22-33N8.388608

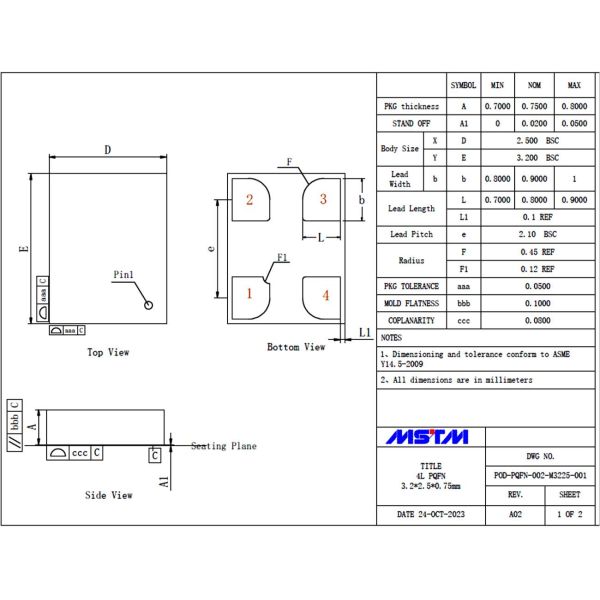

Package :
SMD3225-4P
Description

MST8011 Low Power Programmable Oscillator

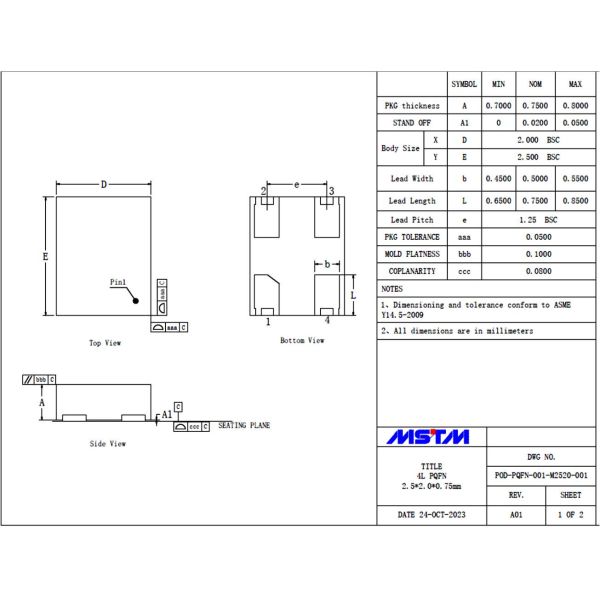

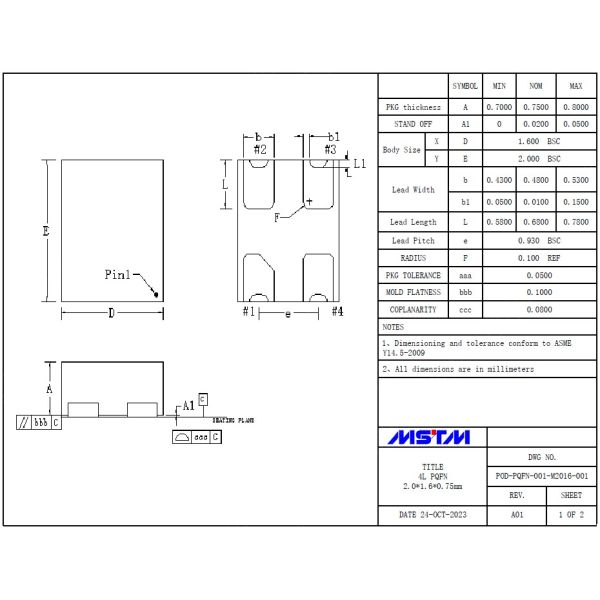

The MST8011 is a low-power programmable oscillator offering precise frequency selection from 1 MHz to 156.25 MHz with 1Hz accuracy. It is 100% pin-compatible with and a direct replacement for quartz oscillators, providing excellent total frequency stability as low as 20 ppm. Designed for low power consumption (4.2 mA typical at 1.8V), it operates within a wide VDD range (1.62V to 3.63V) and boasts high shock resistance (>60,000 g) and vibration resistance (>70g). Features include a standby mode for extended battery life, a fast 5 ms startup time, LVCMOS/HCMOS compatible output, and industry-standard package sizes (2.0x1.6, 2.5x2.0, 3.2x2.5 mm). The MST8011 is RoHS, REACH, Pb-free, and Halogen-free compliant.

Applications:

  • DVRs
  • IP High-Definition Cameras
  • Tablets
  • Solid State Drives (SSDs)
  • Data Centers
  • Servers
  • PLCs
  • Industrial Control
  • Power Equipment
  • New Energy
  • Medical Equipment

Product Attributes:

  • Brand: MST Microelectronics (Shenzhen) Co., Ltd.
  • Origin: Shenzhen, China
  • Certifications: RoHS, REACH, Pb-free, Halogen-free

Technical Specifications:

Parameter Symbol Min Typical Max Unit Conditions
Electrical Characteristics
Output Frequency Range F 1 - 156.25 MHz -
Frequency Stability F_stab -20 - 20 ppm Includes initial tolerance at 25C, 1st year aging at 25C, and variations in operating temperature, nominal supply voltage, and load
Operating Temperature Range T_use -20 - 70 Commercial Grade
Power Supply Voltage VDD_1.8 1.62 1.8 1.98 V -
Power Supply Voltage VDD_3.3 2.97 3.3 3.63 V -
Current Consumption Idd - 4.2 - mA No load, F=20 MHz, VDD=1.8V
Standby Current I_std - 0.6 - A ST=GND, VDD=1.8V, Output weak pull-down
Duty Cycle DC 45 50 55 % Full voltage range
Output Low Voltage VOL - - VDD0.1 V IOL = 2 mA (VDD_1.8)
Output High Voltage VOH VDD0.9 - - V IOL = -2 mA (VDD_1.8)
Rise/Fall Time Tr, Tf - 2.2 - ns VDD=1.8V, 20% to 80%
Input Low Voltage VIL - - VDD0.3 V Pin 1, OE or ST
Input High Voltage VIH VDD0.7 - - V Pin 1, OE or ST
Startup Time T_start - 5.0 - ms Measured from the time VDD reaches its nominal minimum
Enable/Disable Time T_oe - - 130 ns F=180 MHz. Other frequencies, Toe = 100 ns + 3cycles
Resume Time T_resume - 5.0 - ms Measured from ST pin exceeding 50% threshold
RMS Period Jitter T_jitt - 2.8 - ps F=75 MHz, VDD=1.8V
Peak-to-peak Period Jitter T_pk - 28.5 - ps F=75 MHz, VDD=1.8V
RMS Random Jitter T_phj - 1.3 2 ps F=75 MHz, integration bandwidth = 12 kHz to 20 MHz
Environmental Compliance
Shock Resistance - - >60,000 g MIL-STD-883F, Method 2002
Vibration Resistance - >70 - g MIL-STD-883F, Method 2007
Moisture Sensitivity Level (MSL) - - MSL1 - @ 260C
