Specifications
Frequency Stability :
±25ppm
Output Type :
LVCMOS;HCMOS
Voltage - Supply :
1.62V~3.63V
Frequency :
24MHz
Description :
±25ppm 1.62V~3.63V 24MHz SMD3225-4P Programmable Oscillators RoHS
Mfr. Part # :
MST8011AI-22-YYE24.000000
Model Number :
MST8011AI-22-YYE24.000000
Package :

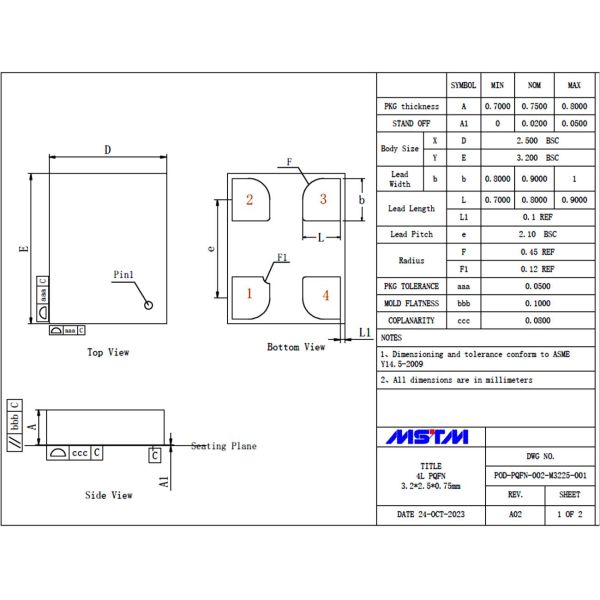

SMD3225-4P
Description

Product Overview

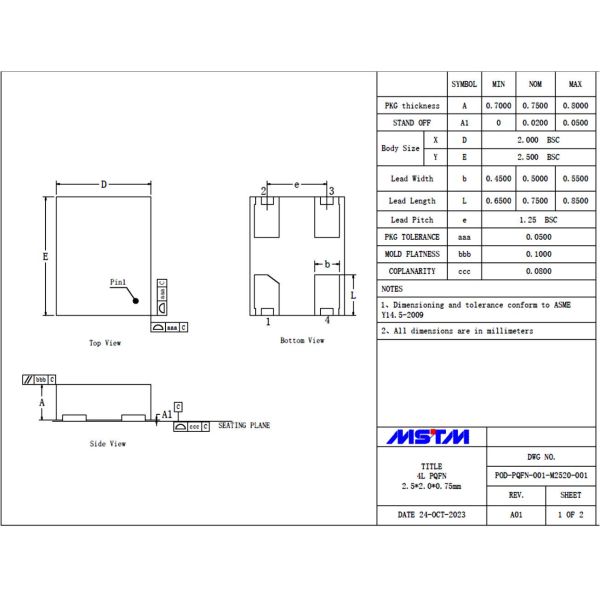

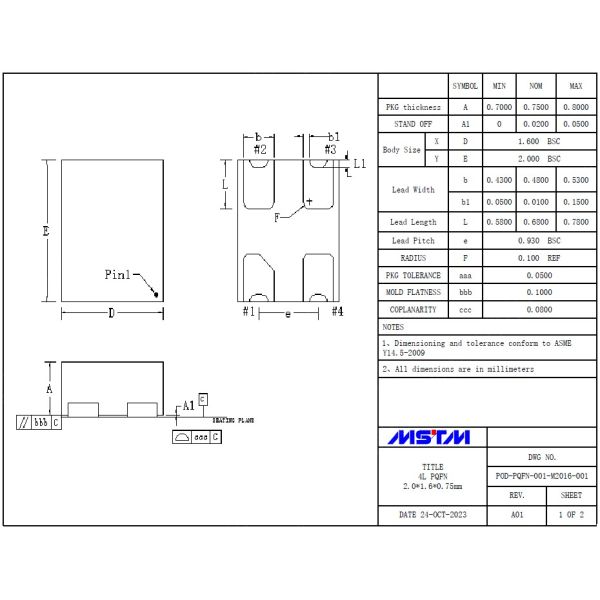

The MST 8011 is a low-power programmable oscillator offering precise frequency control from 1 MHz to 156.25 MHz with 1 Hz accuracy. It is 100% pin-compatible with quartz oscillators and boasts excellent total frequency stability down to 20 ppm. Designed for low power consumption (4.2 mA typical at 1.8V), it operates across a wide VDD range (1.62V to 3.63V) and offers high resistance to shock (>60,000 g) and vibration (>70g). Features include a standby mode for extended battery life, a fast 5 ms startup time, and LVCMOS/HCMOS compatible outputs. Available in industry-standard packages (2.0x1.6, 2.5x2.0, 3.2x2.5 mm), it complies with RoHS, REACH, Pb-free, and Halogen-free standards. Applications include DVRs, IP high-definition cameras, tablets, SSDs, data centers, servers, PLCs, industrial control, power equipment, and new energy and medical devices.

Product Attributes

  • Brand: MST Microelectronics (Shenzhen) Co., Ltd.
  • Origin: Shenzhen, China
  • Certifications: RoHS, REACH, Pb-free, Halogen-free

Technical Specifications

ParameterSymbolMinTypicalMaxUnitConditions
Output Frequency RangeF1-156.25MHz
Frequency StabilityF_stab-20-20ppmIncludes initial tolerance, 1st year aging, operating temp, supply voltage, and load variations
Operating Temperature RangeT_use-20-70Commercial Grade
-40-85Industrial Grade
Power Supply VoltageVDD_1.81.621.81.98V
VDD_3.32.973.33.63V
VDD_XX2.25-3.63V
Current ConsumptionIdd-4.24.9mANo load, F=20 MHz, VDD=1.8V
Standby CurrentI_std-0.61.5AST=GND, VDD=1.8V, weak pull-down
Duty CycleDC455055%Full voltage range
Output Low VoltageVOL--VDD0.1VIOL=2 mA (VDD_1.8)
Output High VoltageVOHVDD0.9--VIOL=-2 mA (VDD_1.8)
Rise/Fall TimeTr, Tf-1.7-nsVDD=2.5V-3.3V, 20%-80%
-2.2-nsVDD=1.8V, 20%-80%
Input Low VoltageVIL--VDD0.3VPin 1, OE or ST
Input High VoltageVIHVDD0.7--VPin 1, OE or ST
Startup TimeT_start-5.0-msFrom VDD min.
Enable/Disable TimeT_oe--130nsF=180 MHz
Resume TimeT_resume-5.0-msFrom ST pin threshold
RMS Period JitterT_jitt-2.2-psF=75 MHz, VDD=1.8V
Peak-to-peak Period JitterT_pk-28.5-psF=75 MHz, VDD=1.8V
RMS Random JitterT_phj-1.32psF=75 MHz, BW=12 kHz-20 MHz

2509171410_MSTM-MST8011AI-22-YYE24-000000_C51933767.pdf
