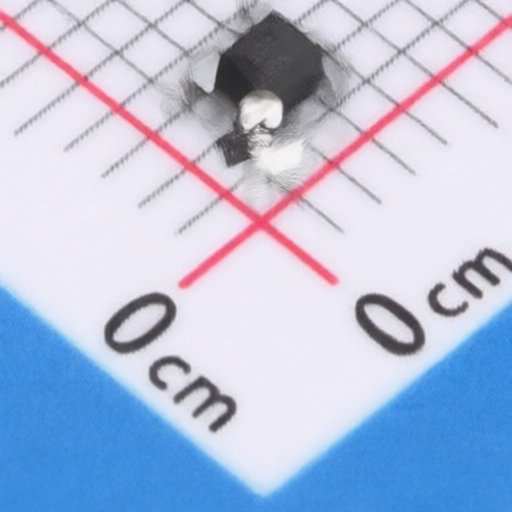

Programmable Oscillator MST8011AI 12 YYE33.333000 Suitable for Industrial Control and Medical Devices
Programmable Oscillator MST8011AI 12 YYE33.333000 Suitable for Industrial Control and Medical Devices
Specifications
Frequency Stability :
±25ppm
Output Type :
LVCMOS;HCMOS
Voltage - Supply :
1.62V~3.63V
Frequency :
33.333MHz
Description :
±25ppm 1.62V~3.63V 33.333MHz SMD2520-4P Programmable Oscillators RoHS
Mfr. Part # :
MST8011AI-12-YYE33.333000
Model Number :
MST8011AI-12-YYE33.333000
Package :
SMD2520-4P
Description

MST8011 Low Power Programmable Oscillator

The MST8011 is a low-power, programmable oscillator offering precise frequency selection from 1 MHz to 180 MHz with 1 Hz resolution. It provides a 100% pin-compatible replacement for traditional quartz oscillators, delivering excellent total frequency stability as low as 20 ppm. Designed for low power consumption (4.2 mA typical at 1.8V), it supports a wide VDD range (1.62V to 3.63V) and features high shock resistance (>60,000 g) and vibration resistance (>70g). Its G-sensitivity is <0.1 ppb/g. The device includes a standby mode for extended battery life and a fast 5 ms startup time. It offers LVCMOS/HCMOS compatible outputs and is available in industry-standard packages (2.0x1.6, 2.5x2.0, 3.2x2.5 mm). The MST8011 complies with RoHS, REACH, Pb-free, and Halogen-free standards. Applications include DVRs, IP high-definition cameras, tablets, SSDs, data centers, servers, PLCs, industrial control, power equipment, new energy, and medical devices.

Product Attributes

  • Brand: MST Microelectronics (Shenzhen) Co., Ltd.
  • Origin: Shenzhen
  • Certifications: RoHS, REACH, Pb-free, Halogen-free

Technical Specifications

Parameter Symbol Min Typical Max Unit Conditions
Output Frequency Range F 1 - 180 MHz -
Frequency Stability F_stab -20 - 20 ppm Includes initial tolerance at 25C, first year aging at 25C, variations in operating temperature, rated supply voltage, and load. Other stability options: 25 ppm, 30 ppm, 50 ppm.
Operating Temperature Range T_use -20 - 70 Commercial Grade. Industrial Grade: -40 to 85C. Extended Industrial Grade: -40 to 105C. Automotive Grade: -55 to 125C.
Supply Voltage VDD 1.62 - 3.63 V See specific VDD options (e.g., 1.8V, 2.5V, 3.3V).
Current Consumption Idd - 4.2 4.9 mA No load, F=20 MHz, VDD=1.8V. Other conditions apply for different VDD.
Standby Current Consumption I_std - 0.6 1.5 A ST=GND, VDD=1.8V, weak pull-down output. Other conditions apply for different VDD.
Duty Cycle DC 45 50 55 % Full voltage range.
Output Low Voltage VOL - - 0.1 * VDD V IOL = 2 mA (VDD=1.8V). Other IOL values for different VDD.
Output High Voltage VOH 0.9 * VDD - - V IOL = -2 mA (VDD=1.8V). Other IOL values for different VDD.
Rise and Fall Time Tr, Tf - 1.7 2.2 ns VDD=1.8V, 20% to 80%. Other conditions apply for different VDD.
Input Low Voltage VIL - - 0.3 * VDD V Pin 1, OE or ST.
Input High Voltage VIH 0.7 * VDD - - V Pin 1, OE or ST.
Startup Time T_start - 5.0 - ms Measured from VDD reaching its rated minimum.
Enable/Disable Time T_oe - - 130 ns F=180 MHz. Other frequencies: 100 ns + 3cycles.
Resume Time T_resume - 5.0 - ms Measured from ST pin exceeding 50% threshold.
RMS Period Jitter T_jitt - 2.2 2.8 ps F=75 MHz, VDD=1.8V. Other VDD options apply.
Peak-to-peak Period Jitter T_pk - 23.3 28.5 ps F=75 MHz, VDD=1.8V. Other VDD options apply.
RMS Random Jitter T_phj - 0.5 2 ps F=75 MHz, integration bandwidth = 12 kHz to 20 MHz.
Shock Resistance - 60000 - - g MIL-STD-883F, Method 2002.
Vibration Resistance - 70 - - g MIL-STD-883F, Method 2007.
G-sensitivity - - 0.1 - ppb/g -
