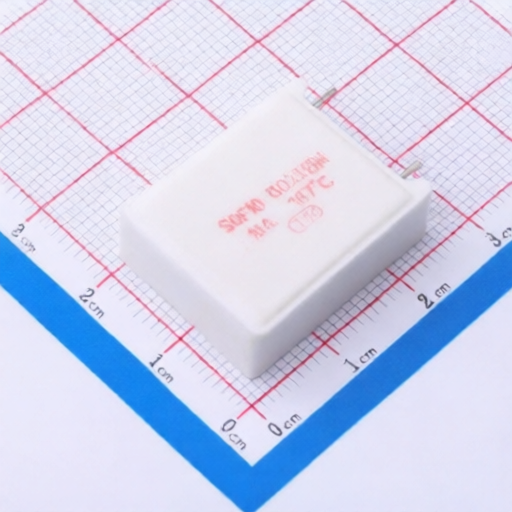

Thermal fuse cement resistor TyoHM SQF10 8R2 J B 187 10A N designed for performance in electronic protection
Thermal fuse cement resistor TyoHM SQF10 8R2 J B 187 10A N designed for performance in electronic protection
Specifications
Type :
Cement Resistor
Resistance :
8.2Ω
Voltage-Supply(Max) :
250V
Power(Watts) :
10W
Temperature Coefficient :
±600ppm/℃
Tolerance :
±5%
Operating Temperature :
-25℃~+130℃
Description :
Cement Resistor 8.2Ω 10W ±600ppm/℃ ±5% Through Hole,P=12.5mm Through Hole Resistors RoHS
Mfr. Part # :
SQF10 8R2 J B 187 10A N
Model Number :
SQF10 8R2 J B 187 10A N
Package :
Through Hole,P=12.5mm
Description

Product Overview

Thermal Fuse Incorporated Cement Resistors offer rapid response to overloading and external overheating due to their integrated thermal fuses. They provide excellent surge protection, making them ideal for preventing inrush current in switching regulators. These resistors are designed for reliability and safety in various electronic applications.

Product Attributes

  • Brand: TY-OHM (Maker's trade mark)
  • Certifications: RoHS Compliant (Indicated by 'N')

Technical Specifications

TypeNominal Resistance Range ()ToleranceFuse Type (C)Rated Wattage (W)Max Working Voltage (V)Max Working Current (A)Operating Temperature Range (C)Dimensions (mm) (W x H x d1 x d2)Terminal Tensile Load (kg)Twist Withstand CyclesResistance Temperature Coefficient (ppm/C)Temperature Cycle Resistance Change (%)Short Time Overload Resistance Change (%)Insulation Resistance (M)Voltage Withstanding (AC V/min)Load Life Resistance Change (%)Moisture-proof Load Life Resistance Change (%)Solder-ability Coverage (%)Resistance to Soldering Heat Resistance Change (%)NonflammabilitySurge Withstanding Cycles
SQF100.1~300J: 5%187 (182+1/-3)4.2 (Continuous), 10 (Momentary)25010-2513020max. x 25max. x 0.8 x 0.84.52 (clockwise & counterclockwise)300 (600 for <1)12>10001000/155>95%1Shall not get flame (16x rated wattage for 5 min)100000

2410121447_TyoHM-SQF10-8R2-J-B-187-10A-N_C3039461.pdf
