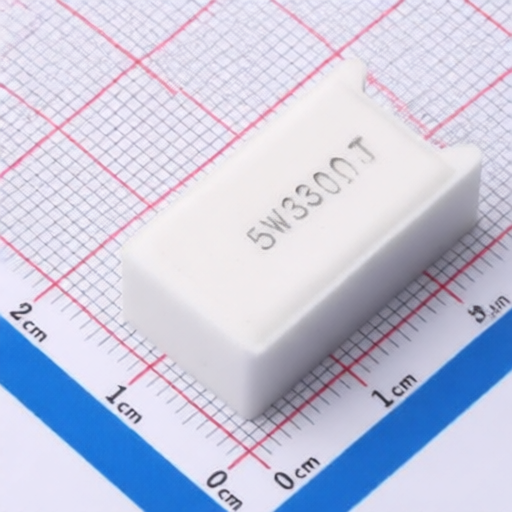

cement resistor TyoHM SQM 5W 330R J P1 for stable performance in home appliances and computer systems
cement resistor TyoHM SQM 5W 330R J P1 for stable performance in home appliances and computer systems
Specifications
Type :
Cement Resistor
Resistance :
330Ω
Power(Watts) :
5W
Temperature Coefficient :
±300ppm/℃
Tolerance :
±5%
Operating Temperature :
-55℃~+155℃
Description :
Cement Resistor 330Ω 5W ±300ppm/℃ ±5% Through Hole,P=5mm Through Hole Resistors RoHS
Mfr. Part # :
SQM 5W 330R J P1
Model Number :
SQM 5W 330R J P1
Package :
Through Hole,P=5mm
Description

Product Overview

This specification defines cement type resistors for home appliances, computers, and information equipment. These resistors are designed to meet various electrical and mechanical performance requirements, ensuring reliability in their intended applications. They are RoHS compliant.

Product Attributes

  • Product Name Format: SQ [Type] [Power] [Resistance] [Tolerance] (e.g., SQ M 5W 10 J)
  • Type Designations: SQ
  • Terminal Types: P, M, Z, S, H
  • Tolerance Codes: F (1%), G (2%), J (5%), K (10%)
  • Certifications: RoHS compliant

Technical Specifications

TypeRated Power (W)Dimensions (mm) (Wx, Hx, Lx, dx, etc.)Resistance Range ()Max Working Voltage (V)
SQP2WW1, H1, L1.5, d0.10.1~100 (Wirewound), 101~10K (Power Film)150V
SQP3WW1, H1, L1.5, d0.10.1~150 (Wirewound), 151~33K (Power Film)350V
SQP5WW1, H1, L1.5, d0.10.1~150 (Wirewound), 151~50K (Power Film)350V
SQP7WW1, H1, L1.5, d0.10.1~430 (Wirewound), 431~50K (Power Film)500V
SQP10WW1, H1, L1.5, d0.10.1~470 (Wirewound), 471~50K (Power Film)750V
SQP15WW1, H1, L1.5, d0.10.5~600 (Wirewound), 601~150K (Power Film)1000V
SQP20W, 25WW1, H1, L1.5, d0.10.5~1K (Wirewound), 1.1K~150K (Power Film)1000V
SQM1WH1.5, W1, S1, d0.10.1~47 (Wirewound), 48~10K (Power Film)
SQM2WH1.5, W1, S1, d0.10.1~82 (Wirewound), 83~10K (Power Film)
SQM3WH1.5, W1, S1, d0.10.1~150 (Wirewound), 151~50K (Power Film)
SQM5WH1.5, W1, S1, d0.10.1~150 (Wirewound), 151~50K (Power Film)
SQM7WH1.5, W1, S1, d0.10.1~430 (Wirewound), 431~50K (Power Film)
SQM10WSH1.5, W1, S1, d0.10.1~300 (Wirewound), 301~100K (Power Film)
SQM10WH1.5, W1, S1, d0.10.1~470 (Wirewound), 471~75K (Power Film)
SQZ5WSL1.5, W1, H1, P1.5, P1, P2, P3, P4, H11, H210.1~130 (Wirewound), 131~50K (Power Film)
SQZ5WL1.5, W1, H1, P1.5, P1, P2, P3, P4, H11, H210.1~130 (Wirewound), 131~50K (Power Film)
SQZ7WL1.5, W1, H1, P1.5, P1, P2, P3, P4, H11, H210.1~430 (Wirewound), 431~50K (Power Film)
SQZ10WL1.5, W1, H1, P1.5, P1, P2, P3, P4, H11, H210.2~470 (Wirewound), 471~50K (Power Film)
SQZ15WL1.5, W1, H1, P1.5, P1, P2, P3, P4, H11, H211~600 (Wirewound), 601~150K (Power Film)
SQZ20W, 25WL1.5, W1, H1, P1.5, P1, P2, P3, P4, H11, H211~1K (Wirewound), 1.1K~150K (Power Film)
SPS7WA0.5, C0.05, D0.5, E0.5, F0.5, G0.2, H0.3, I0.05, J0.05, K0.5, L1.5, M0.05, N0.05, O0.5, P0.5, h0.50.1~430(Wirewound), 431~50K(Power Film)
SPS10WA0.5, C0.05, D0.5, E0.5, F0.5, G0.2, H0.3, I0.05, J0.05, K0.5, L1.5, M0.05, N0.05, O0.5, P0.5, h0.50.1~470(Wirewound), 471~50K(Power Film)
SQH10WW1, H1, L1.5, P, H11, D0.5, P10.2, P20.20.5~600 (Wirewound), 601~50K (Power Film)
SQH15WW1, H1, L1.5, P, H11, D0.5, P10.2, P20.21~600 (Wirewound), 601~150K (Power Film)
SQH20WW1, H1, L1.5, P, H11, D0.5, P10.2, P20.21~1K (Wirewound), 1.1K~150K (Power Film)
SQH30WW1, H1, L1.5, P, H11, D0.5, P10.2, P20.21~2K (Wirewound)
SQH40WW1, H1, L1.5, P, H11, D0.5, P10.2, P20.21~2K (Wirewound)
SQHG10WA0.5, B0.5, C0.5, G0.2
SQHG15W, 20WA0.5, B0.5, C0.5, G0.2
SQHG30W, 40WA0.5, B0.5, C0.5, G0.2

2210311530_TyoHM-SQM-5W-330R-J-P1_C5200526.pdf
