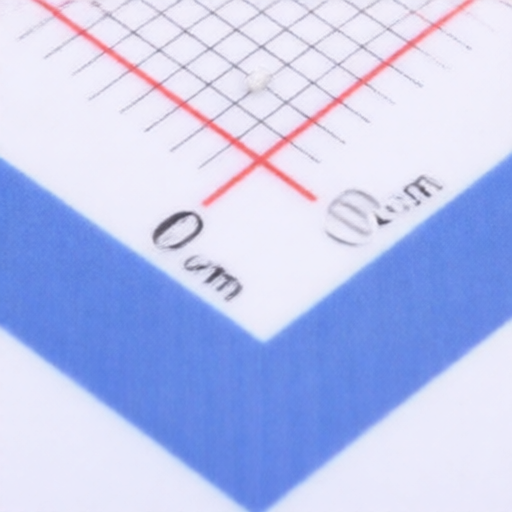

Common Mode Noise Filter muRata NFG0QHB372HS2D Optimized for Differential Signal Electronics Systems
Common Mode Noise Filter muRata NFG0QHB372HS2D Optimized for Differential Signal Electronics Systems
Specifications
Insulation Resistance(IR) :
100MΩ
Operating Temperature :
-40℃~+85℃
DC Resistance(DCR) :
2.375Ω
Voltage Rating - DC :
5V
Number of Lines :
2
Voltage Withstand :
12.5V
Description :
2Line Common Mode Choke Surface Mount-4P 0.5x0.5mm 9Ω@100MHz 100mA DCR 2.375Ω
Mfr. Part # :
NFG0QHB372HS2D
Model Number :
NFG0QHB372HS2D
Package :
SMD-4P,0.5x0.5mm
Description

Common Mode Noise Filter NFG0QHBHS2 Series

This reference specification applies to the Common Mode Noise Filter NFG0QHBHS2 Series, designed for differential signal interfaces in electronic applications. These filters are engineered to suppress common mode noise, ensuring signal integrity in various electronic systems.

Product Attributes

  • Brand: MURATA MFG.CO., LTD
  • Product ID: NFG0QHBHS2
  • Type: Common Mode Noise Filter
  • Application: Differential signal interface in Electronics
  • Packaging: D: taping, B: bulk

Technical Specifications

MURATA Part Number Common Mode Impedance (100MHz Typ.) () Rated Voltage (VDC) Rated Current (mA) DC Resistance () Insulation Resistance (M min.) Common Mode Insertion Loss (dB Typ.) @ 2.4 GHz Common Mode Insertion Loss (dB Typ.) @ 3.7 GHz Common Mode Insertion Loss (dB Typ.) @ 5.4 GHz Cut off Frequency (GHz Typ.)
NFG0QHB242HS2D 15 5 100 2.525% 100 33 - - 2.4 GHz
NFG0QHB372HS2D 9 5 100 1.925% 100 - 30 - 3.7 GHz
NFG0QHB542HS2D 5 5 100 1.325% 100 - - 27 5.4 GHz

Operating Conditions

Parameter Specification
Operating temperature range -40C to +85C
Storage temperature range -40C to +85C

2410121526_muRata-NFG0QHB372HS2D_C1881368.pdf
