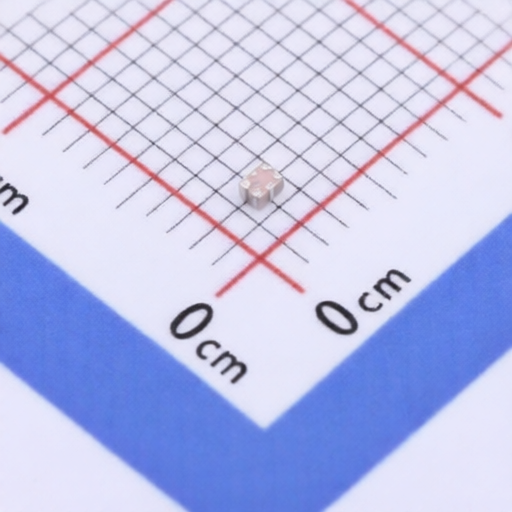

Compact esd protection component muRata LXES11DAA2-135 designed for high speed electronic interfaces
Compact esd protection component muRata LXES11DAA2-135 designed for high speed electronic interfaces
Specifications
Operating Temperature :
-40℃~+85℃
DC Resistance(DCR) :
3Ω
Voltage Rating - DC :
5V
Number of Lines :
2
Description :
3Ω 2 SMD,1.25x1x0.75mm Common Mode Chokes RoHS
Mfr. Part # :
LXES11DAA2-135
Model Number :
LXES11DAA2-135
Package :
SMD,1.25x1x0.75mm
Description

Product Overview

The LXES series ESD Protection Devices are common mode ESD filters designed to protect electronic circuits from electrostatic discharge. They offer reliable ESD protection and are suitable for various high-speed data interfaces.

Product Attributes

  • Brand: MURATA
  • Certifications: RoHS Compliant, Halogen free
  • Packaging: T/R only

Technical Specifications

Part NumberDimension CodeDimension (L x W) [mm]Common Mode Impedance @100MHz []DC Resistance []Capacitance @1MHz, Vbias=0V [pF]ESD Protection (IEC 61000-4-2 Air/Contact) [kV]Product Weight [mg]
LXES11DAA2-135111.25 x 1.06030.4153.0
LXES21DAA4-136212.0 x 1.256030.4157.1
LXES11DAA2-137111.25 x 1.03520.4153.0
LXES21DAA4-138212.0 x 1.253520.4157.1
LXES21DAA4-140212.0 x 1.259040.4157.1
LXES18DAA4-167181.6 x 0.89050.4152.3
LXES0NDAA2-1720N0.87 x 0.677550.4151.0
LXES18DAA4-182181.6 x 0.82540.4152.3
LXES0NDAA2-1830N0.87 x 0.672540.4151.0
LXES18DAA4-184181.6 x 0.85050.4152.3
LXES0NDAA2-1850N0.87 x 0.675050.4151.0

2411220058_muRata-LXES11DAA2-135_C2986288.pdf
