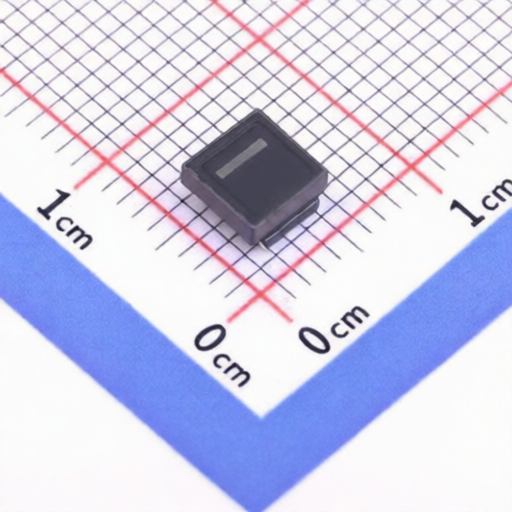

Compact Wire Wound Chip Common Mode Choke Coil muRata DLW5BTM142TQ2L for Noise Suppression Applications
Compact Wire Wound Chip Common Mode Choke Coil muRata DLW5BTM142TQ2L for Noise Suppression Applications
Specifications
Insulation Resistance(IR) :
10MΩ
Operating Temperature :
-40℃~+105℃
DC Resistance(DCR) :
56mΩ
Voltage Rating - DC :
100V
Number of Lines :
2
Voltage Withstand :
250V
Description :
2Line Common Mode Choke Surface Mount-4P 5x5mm 1.4kΩ@100MHz 2A DCR 56mΩ
Mfr. Part # :
DLW5BTM142TQ2L
Model Number :
DLW5BTM142TQ2L
Package :
SMD-4P,5x5mm
Description

Wire Wound Chip Common Mode Choke Coil

The DLW5BTM series is a Wire Wound Chip Common Mode Choke Coil designed for noise suppression. Its compact chip form factor and wire-wound construction provide effective common mode noise filtering in various electronic applications. This product is suitable for reflow soldering.

Product Attributes

  • Brand: MURATA MFG CO.,LTD.
  • Product Type: Wire Wound Chip Common Mode Choke Coil
  • Marking Type: Laser Marking Type
  • Polarity: No polarity
  • Packaging: Taping (180mm/reel or 330mm/reel) or Bulk

Technical Specifications

MURATA Part Number Impedance at 10MHz ( min.) Impedance at 100MHz ( Typ.) Rated Voltage V(DC) Rated Current (A) DC Resistance (Rdc) ( max.) Insulation Resistance (M min.) Operating Temperature (C) Storage Temperature (C)
DLW5BTM101TQ2L 10 100 100 6 0.013 10 -40 to +105 -40 to +105
DLW5BTM101TQ2K 10 100 100 6 0.013 10 -40 to +105 -40 to +105
DLW5BTM101TQ2B 10 100 100 6 0.013 10 -40 to +105 -40 to +105
DLW5BTM251TQ2L 20 250 100 5 0.020 10 -40 to +105 -40 to +105
DLW5BTM251TQ2K 20 250 100 5 0.020 10 -40 to +105 -40 to +105
DLW5BTM251TQ2B 20 250 100 5 0.020 10 -40 to +105 -40 to +105
DLW5BTM501TQ2L 30 500 100 4 0.027 10 -40 to +105 -40 to +105
DLW5BTM501TQ2K 30 500 100 4 0.027 10 -40 to +105 -40 to +105
DLW5BTM501TQ2B 30 500 100 4 0.027 10 -40 to +105 -40 to +105
DLW5BTM102TQ2L 60 1000 100 2.5 0.034 10 -40 to +105 -40 to +105
DLW5BTM102TQ2K 60 1000 100 2.5 0.034 10 -40 to +105 -40 to +105
DLW5BTM102TQ2B 60 1000 100 2.5 0.034 10 -40 to +105 -40 to +105
DLW5BTM142TQ2L 100 1400 100 2 0.056 10 -40 to +105 -40 to +105
DLW5BTM142TQ2K 100 1400 100 2 0.056 10 -40 to +105 -40 to +105
DLW5BTM142TQ2B 100 1400 100 2 0.056 10 -40 to +105 -40 to +105

Dimensions

Dimensions (LW): 5.00.3 mm 5.00.3 mm

Unit Mass (Typical): 0.21g

Application Scenarios

This product is suitable for applications requiring high reliability and noise suppression. Specific applications requiring especially high reliability for the prevention of defects which might directly cause damage to the third partys life, body or property include: Aircraft equipment, Aerospace equipment, Undersea equipment, Power plant control equipment, Medical equipment, Transportation equipment (automobiles, trains, ships, etc.), Traffic signal equipment, Disaster prevention / crime prevention equipment, Data-processing equipment, and applications of similar complexity or with reliability requirements comparable to the applications listed.

Caution

Mount products in the correct direction. Mounting in a direction rotated by 90 from the correct direction can cause not only open or short circuits but also flames or other serious trouble.

Notice

Products can only be soldered with reflow. This product is designed for solder mounting. Please consult us in advance for applying other mounting methods such as conductive adhesive.


2410121642_muRata-DLW5BTM142TQ2L_C341531.pdf
