SODIMM 262 PIN DDR5 Test Socket Industrial Grade For Automated Testing
SODIMM 262 PIN DDR5 Test Socket Industrial Grade For Automated Testing
Specifications
Brand Name :
Sireda
Model Number :
Open Top
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
Get Quote
Installation :
Screw-mounting
Conductor Type :
Terminal pin
Description

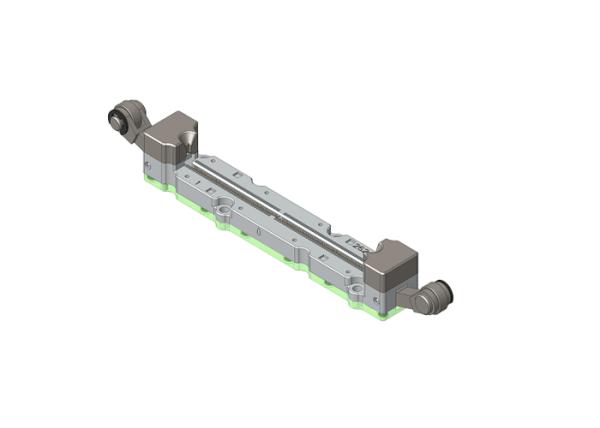

SODIMM 262-PIN DDR5 Test Socket - Industrial-Grade for Automated Testing

Upgrade your DDR5 SODIMM memory testing with our industrial-grade 262-PIN test socket, designed for automated equipment and longevity (50,000+ cycles). Unlike cheaper consumer sockets, our precision-engineered model features micro-pitch gold-plated contacts for reliable small-pad DIMM connections. Ideal for semiconductor manufacturers, SMTRAM testers, and high-volume production lines requiring repeated, consistent validation. Supports DDR5-4800 to DDR5-6400+ speeds with minimal signal loss--reduce downtime and replacement costs.

SODIMM 262 PIN DDR5 Test Socket Industrial Grade For Automated Testing
Product Specifications
P/N Product Name Description
701-0000487 Test Socket DIMM288 0.85mm DDR4
701-0000495 Test Socket U-DIMM288 0.85mm DDR5
701-0000496 Test Socket R-DIMM288 0.85mm DDR5
701-0000544 Test Socket B SO-DIMM262 0.5mm DDR5
Features
Feature Specification
Available DDR3 / DDR4 / DDR5 DIMM (288-pin, 1.2V-1.5V)
Lifespan 50,000+ insertion cycles
Contact Material BeCu (Beryllium Copper) with 1µm gold plating
Insertion Force <1.0N per pin (Low-Insertion-Force design)
Signal Integrity High-speed validation (DDR5-6400+) with minimal signal loss
Design Cantilever mechanism for stable contact pressure
Automation Support Compatible with pick-and-place machines & test racks
Temperature Range -40°C to +125°C (Burn-in capable)
Applications:
  • Burn-in testing (high-temp up to 125 °C)
  • Memory module functional validation
  • High-frequency signal testing (DDR5-6400+)
  • Automated production testing
Gold Finger Damage Test
SODIMM 262 PIN DDR5 Test Socket Industrial Grade For Automated Testing
