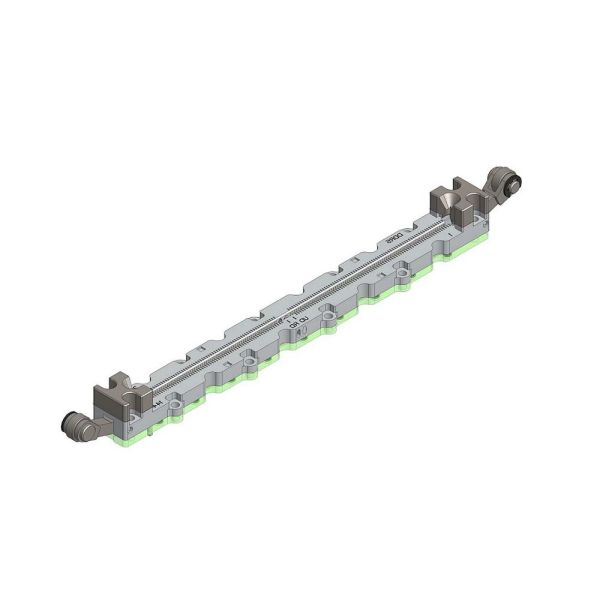

High Frequency DIMM Test Socket Memory Module Socket BeCu Gold Plated
High Frequency DIMM Test Socket Memory Module Socket BeCu Gold Plated
Specifications
Brand Name :
Sireda
Model Number :
Open Top
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
Get Quote
Installation :
Screw-mounting
Conductor Type :
Terminal pin
Description
DDR DIMM Test Socket - High-Performance Memory Module Testing Solution

The DDR DIMM Test Socket is specifically designed for testing DDR3, DDR4, and DDR5 memory modules with high durability and precision. It features low insertion force (LIF), protecting the memory module's gold fingers from damage during frequent testing cycles. Ideal for use with automated test equipment (ATE) and test racks, this socket ensures reliable performance in burn-in, functional testing, and high-frequency validation.

High Frequency DIMM Test Socket Memory Module Socket BeCu Gold Plated
Features
Feature Specification
Available DDR3 / DDR4 / DDR5 DIMM (288-pin, 1.2V-1.5V)
Lifespan 50,000+ insertion cycles
Contact Material BeCu (Beryllium Copper) with 1µm gold plating
Insertion Force <1.0N per pin (Low-Insertion-Force design)
Signal Integrity High-speed validation (DDR5-6400+) with minimal signal loss
Design Cantilever mechanism for stable contact pressure
Automation Support Compatible with pick-and-place machines & test racks
Temperature Range -40°C to +125°C (Burn-in capable)
Applications:
  • Burn-in testing (high-temp up to 125 °C)
  • Memory module functional validation
  • High-frequency signal testing (DDR5-6400+)
  • Automated production testing

    Gold Finger Damage Test

    High Frequency DIMM Test Socket Memory Module Socket BeCu Gold Plated
