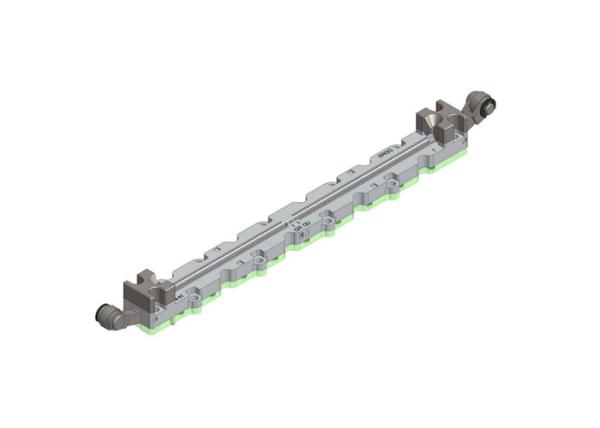

U-DIMM 288-PIN DDR5 Test Socket High Cycle Automated DIMM Validation
U-DIMM 288-PIN DDR5 Test Socket High Cycle Automated DIMM Validation
Specifications
Brand Name :
Sireda
Model Number :
Open Top
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
Get Quote
Installation :
Screw-mounting
Conductor Type :
Terminal pin
Description

U-DIMM 288-PIN DDR5 Test Socket – High-Cycle Automated DIMM Validation

Maximize uptime in DDR5 U-DIMM production & testing with our ultra-durable 288-PIN test socket, rated for 50,000+ cycles. Designed for automated pick-and-place systems and SMTRAM testers, its high-precision contacts accommodate small DIMM gold fingers without damage. Perfect for OEMs, memory module makers, and QC labs, it ensures repeatable accuracy at DDR5-4800 to DDR5-6400 speeds. No more brittle plastic sockets—industrial-grade metal housing resists warping under continuous use.

U-DIMM 288-PIN DDR5 Test Socket High Cycle Automated DIMM Validation
Product List
P/N Product Name Description
701-0000487 Test Socket DIMM288 0.85mm DDR4
701-0000495 Test Socket U-DIMM288 0.85mm DDR5
701-0000496 Test Socket R-DIMM288 0.85mm DDR5
701-0000544 Test Socket B SO-DIMM262 0.5mm DDR5
Features
Feature Specification
Available DDR3 / DDR4 / DDR5 DIMM (288-pin, 1.2V-1.5V)
Lifespan 50,000+ insertion cycles
Contact Material BeCu (Beryllium Copper) with 1µm gold plating
Insertion Force <1.0N per pin (Low-Insertion-Force design)
Signal Integrity High-speed validation (DDR5-6400+) with minimal signal loss
Design Cantilever mechanism for stable contact pressure
Automation Support Compatible with pick-and-place machines & test racks
Temperature Range -40°C to +125°C (Burn-in capable)
Applications:
  • Burn-in testing (high-temp up to 125 °C)
  • Memory module functional validation
  • High-frequency signal testing (DDR5-6400+)
  • Automated production testing
Gold Finger Damage Test
