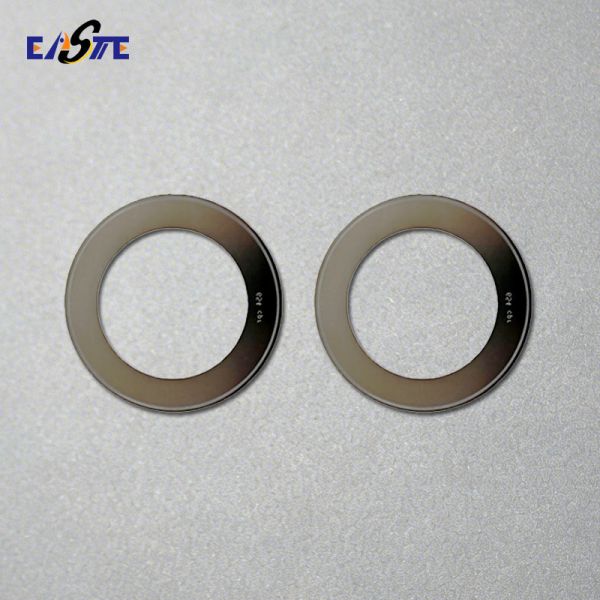

Metal Coder Wheels Precision Etched Components Via Chemical Etching Processing
Metal Coder Wheels Precision Etched Components Via Chemical Etching Processing
Metal Coder Wheels Precision Etched Components Via Chemical Etching Processing
Metal Coder Wheels Precision Etched Components Via Chemical Etching Processing
Metal Coder Wheels Precision Etched Components Via Chemical Etching Processing
Metal Coder Wheels Precision Etched Components Via Chemical Etching Processing
Specifications
Shape :
as you like
Feature :
Eco-Friendly
Payment Terms :
T/T
Delivery Time :
7-10 days
Packaging Details :
Paper, PE Bag, Box
Place of Origin :
Guangdong, China
Model Number :
XHS
Brand Name :
xinhaisen
Certification :
ISO 9001, ISO 14001, IATF 16949
MOQ :
500 pieces
Price :
CN¥0.9333-12.93/pieces
Type :
Etching / Chemical Machining
Tolerance :
+/- 0.01mm
MOQ :
500pcs
Thickness :
0.03-1.5mm
Lead time :
within a week
Material Capabilities :
Stainless Steel
Micro Machining or Not :
Micro Machining
Design :
custom design
Size :
customized
CNC Machining or Not :
Not CNC Machining
Finish :
polishing ,plating
Description

Metal Coder Wheels Precision Etched Components Via Chemical Etching Processing



Metal Coder Wheels: Definition

Precision-engineered rotating discs that transfer variable data (lot numbers, dates, barcodes) onto products through mechanical contact or laser projection.


Metal Coder Wheels: Key Industrial Applications

• Food/Beverage Packaging Date Stamping
• Pharmaceutical Batch Tracking
• Electronic Component Traceability


Metal Coder Wheels: Types & Specifications

Classification by Function

Type Characteristics Accuracy Speed Range

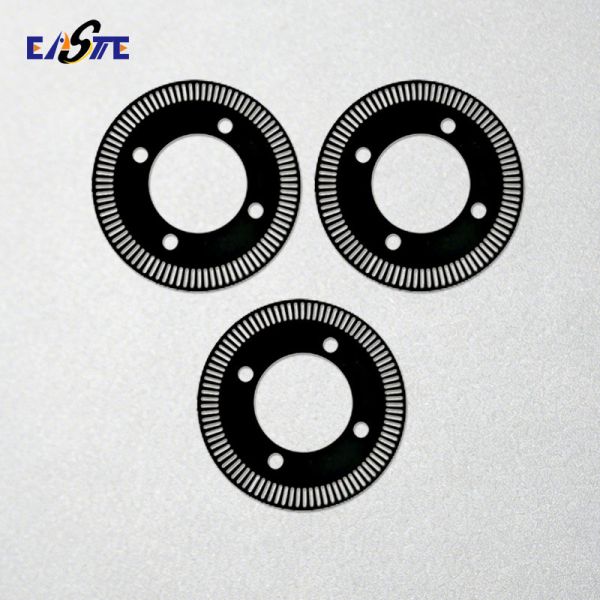

Rotary Encoder Wheels Radial grooves for position sensing ±0.01° 0-10,000 RPM
Ink Transfer Wheels Micro-cavity surface for ink retention ±15μm 10-200 m/min
Laser Coding Wheels Optical-grade mirror finish λ/10 flatness >50 kHz pulse



Material Selection Guide

Material Hardness (HV) Thermal Range Corrosion Resistance Best For
304 Stainless Steel 200-250 -50~400℃ ★★★★☆ Food/pharma environments
D2 Tool Steel 550-650 -20~300℃ ★★☆☆☆ High-wear industrial coding
Ti6Al4V Titanium 340-380 -100~550℃ ★★★★★ Aerospace/Chemical sectors


Metal Coder Wheels: Advanced Manufacturing Capabilities

✅ 8 Dedicated Etching Lines
• Minimum feature size: 10μm
• Batch consistency: CpK≥1.67


✅ Surface Engineering Expertise

Process Technical Parameters
DLC Coating 0.5-3μm thickness, friction coefficient <0.1
PTFE Coating FDA-compliant non-stick surface
Pressure-Sensitive Adhesive 0.2-1.5N/cm² tack strength

Metal Coder Wheels: Etching Process Steps:

  1. Material Prep: Clean and degrease metal sheets.
  2. Photoresist Coating: Apply UV-sensitive resist.
  3. Exposure: Transfer flow field design via photomask.
  4. Development: Remove unexposed resist to reveal etching areas.
  5. Etching: Immerse in etchant to dissolve unprotected metal.
  6. Strip & Clean: Remove residual resist and polish.
  7. QC Inspection: Validate dimensions, conductivity, and surface finish.

Metal Coder Wheels Precision Etched Components Via Chemical Etching Processing



The material ,thickness and size we can produce as following

Material Thickness Size
STEEL AND STAINLESS STEELS 0.01mm – 1.5mm 650mm x 1800mm
NICKEL AND NICKEL ALLOYS 0.01mm – 1.5mm 600mm x 1500mm
COPPER AND COPPER ALLOYS 0.01mm – 1.5mm 600mm x 1500mm
ALUMINIUM 0.01mm – 1.5mm 600mm x 1500mm
TITANIUM AND TITANIUM ALLOYS 0.01mm – 1mm

600mm x 550mm


Metal Coder Wheels: How to customize from us.


  1. Please send us your design.We accept the following file formats: DWG, DXF, PDF, Step, Gerber, IGES, CorelDraw and AI.
  2. Samples making lead time:3-10days
  3. Express:By DHL,Fedex,TNT,around 3-7days


Why Choose Us?


✅ 13+ Years Expertise: Trusted by global clients in automotive, energy, and aerospace.

✅ ISO 9001/14001 & IATF 16949 Certified: Guaranteed quality and sustainability.
✅ Prototype Delivery time: 3-7days.
✅ Mass Production: 2-3Weeks

✅Competitive Pricing: Optimized processes for cost efficiency.
