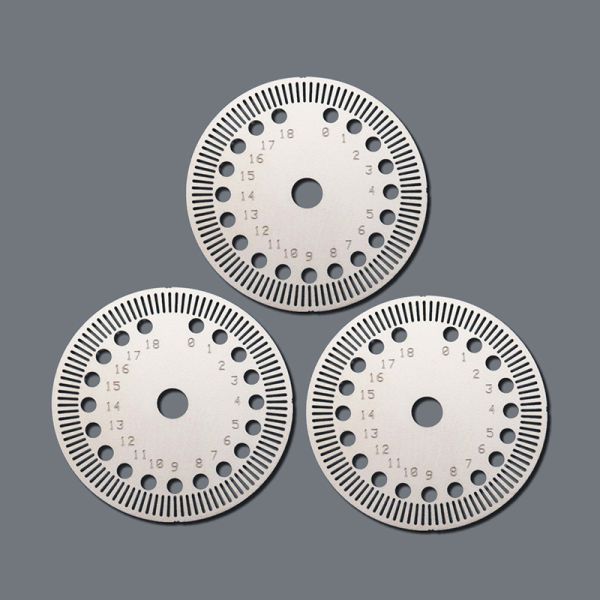

Precision Metal Encoder Disc Chemical Etched Stainless Steel Code Disc

Precision Etched Encoder Discs Manufacturer

Xinhaisen manufactures high-precision etched encoder discs using advanced Photo Chemical Machining (PCM) technology. Compared with traditional stamping or laser cutting, chemical etching creates burr-free, stress-free metal encoder discs with extremely fine line patterns and excellent dimensional accuracy. Our etched encoder discs are widely used in optical encoders, rotary encoders, servo motors, robotics, industrial automation, semiconductor equipment and precision positioning systems where reliable signal accuracy is essential.

Photo chemical etching allows the production of ultra-fine encoder patterns without burrs or mechanical stress, making it ideal for high-resolution encoder applications requiring excellent dimensional accuracy.

Compared with laser cutting or stamping, photo etching provides cleaner edges, tighter tolerances and better pattern consistency, especially for thin metal encoder discs.

We manufacture custom encoder discs according to customer drawings, CAD files or sample parts.

Encoder Discs Specifications

Applications

Optical encoder discs are commonly used in:

Optical encoder manufacturers

Industrial automation

Motion control

Servo motor manufacturers

Robotics

Medical devices

Factory automation

Linear motion systems

Semiconductor equipment

Laboratory instruments

Precision measuring equipment

CNC equipment

Why Choose Xinhaisen?

• Unmatched Speed: We offer rapid response and fast turnaround times, from prototyping to bulk orders.

• High-Quality Standards: Rigorous quality control ensures every batch meets your exact specifications.

• Volume Flexibility: We are equipped to handle both urgent small batches and massive production runs efficiently.

• Technical Expertise: Deep knowledge of etching various metals to achieve the perfect balance of sharpness, flexibility, and corrosion resistance.

Welcome to contact us at any time!
