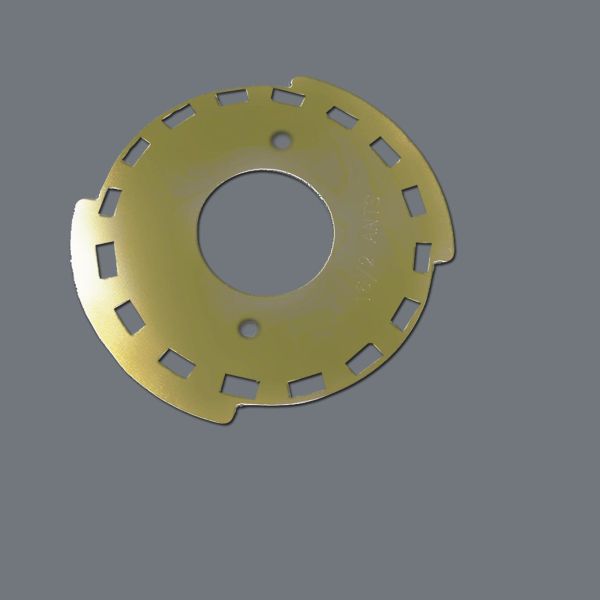

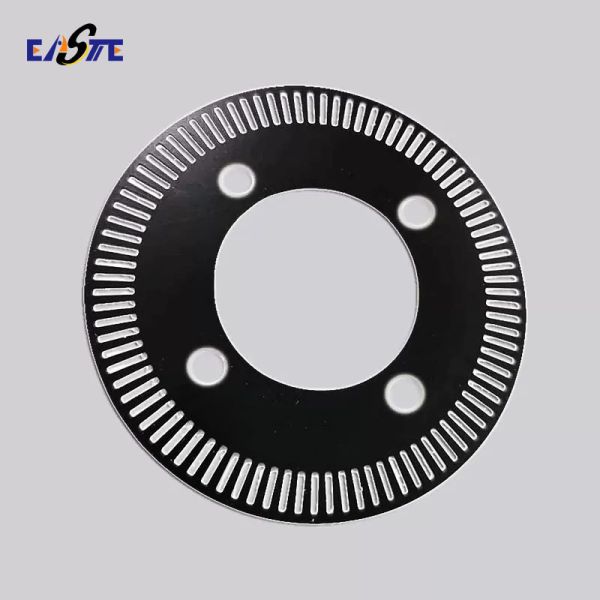

Photo Chemical Etching Encoder Discs Customized for Measurement
Photo Chemical Etching Encoder Discs Customized for Measurement
Photo Chemical Etching Encoder Discs Customized for Measurement
Photo Chemical Etching Encoder Discs Customized for Measurement
Photo Chemical Etching Encoder Discs Customized for Measurement
Photo Chemical Etching Encoder Discs Customized for Measurement
Specifications
Brand Name :
CUSTOM
Certification :
ISO 9001, ISO 14001, IATF 16949
Place of Origin :
CHINA
MOQ :
10
Price :
50-100USD
Delivery Time :
5-10work days
Model Number :
CUSTOM
Payment Terms :
T/T
Supply Ability :
10000-100000PCD / week
Packaging Details :
PE bags and Carton
Material :
Stainless steel,copper or customized
Application :
For measurement
Technique :
Chemical etching
Tolerance :
+/-0.01mm
OEM :
Support
Service :
24hours
Thickness :
0.02mm - 1.5mm
MOQ :
Can be negotiated
Description

Photo Chemical Etching Encoder Discs Customized for Measurement

Encoder Discs Overview

Xinhaisen's chemically etched stainless steel encoder discs deliver unmatched precision for position and speed measurement applications. Utilizing advanced photochemical machining technology, we produce encoder discs with micron-level accuracy, perfect for demanding industrial automation, robotics, and motion control systems.

Encoder Discs Features

  • Ultra-High Precision: Achieves extremely fine lines and slots for accurate signal generation.

  • Excellent Edge Quality: Clean, vertical, burr-free edges ensure consistent optical/magnetic properties.

  • Low Inertia: Thin, lightweight construction minimizes rotational mass.

  • Customizable Patterns: Radial lines, concentric circles, or unique codes (e.g., Gray code) available.

  • Material Versatility: Suitable for optical (opaque/transparent patterns) and magnetic applications.

  • High Durability: Metal construction resists wear, temperature variation, and humidity better than film discs.

Encoder Discs Specifications

Parameter

Specification

Thickness

0.05mm - 0.4mm

Tolerance

+/-0.01mm

Surface Treatments

Ni plating, passivation, black oxide

Materials

 Stainless steel, brass, copper, nickel, aluminum,etc.

Aspect Ratio

 Up to 1:1 (slot width vs. material thickness)

Encoder Discs Applications

  • Industrial Automation: Servo motors, CNC machines, robotics.

  • Medical Devices: Surgical instruments, imaging equipment, pumps.

  • Aerospace & Defense: Guidance systems, actuators, avionics.

  • Consumer Electronics: Printers, scanners, high-fidelity audio equipment.

  • Automotive: Steering angle sensors, throttle position sensors, motor encoders.

  • Scientific Instruments: Telescopes, spectrometers, precision stages.

 Photo Chemical Etching Encoder Discs Customized for Measurement

FAQ

1.How can we guarantee quality?

  • Always a pre-production sample before mass production;
  • Always final Inspection before shipment.

2.What can you buy from us?

  • Photo chemical etching
  • Micro-channel plate etching
  • Precision filter mesh
  • Metal encoder discs
  • Precision metal shims

3. Why should you buy from us not from other suppliers?

Xinhaisen is established to specialized in the production of high-quality, finite and micro-size photo chemical etching metal products.Our seventy professional staff specialized in research and development , manufacturing and marketing service.

4. What services can we provide?

  • Accepted Delivery Terms: FOB,CFR,CIF,EXW；
  • Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,CNY;
  • Accepted Payment Type: T/T,Paypal,etc.
