Precision Chemical Etching Optical Metal Encoder Discs Customized

Encoder Discs Overview

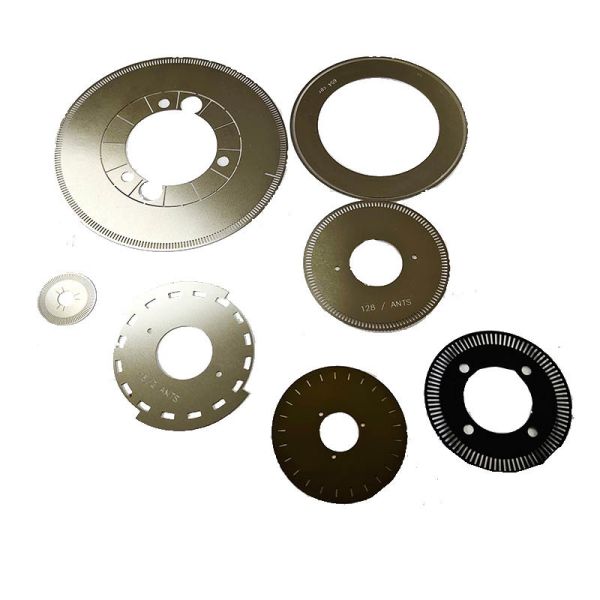

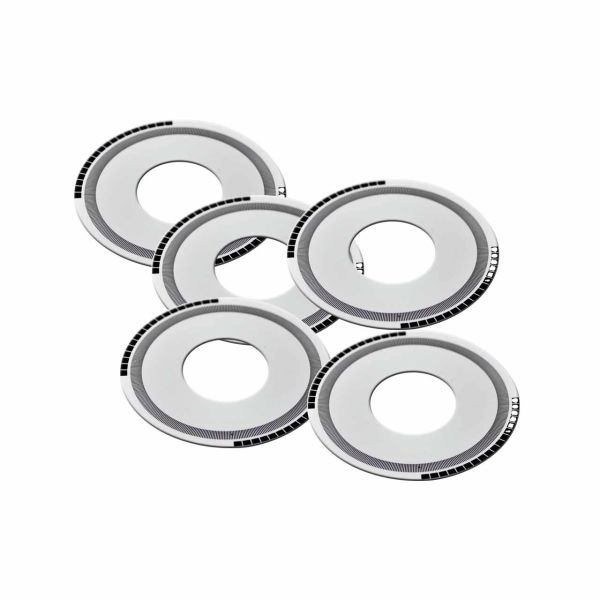

Xinhaisen Technology specializes in manufacturing high-accuracy chemically etched encoder discs for motion control systems. Our precision etching technology produces code wheels with exceptional pattern accuracy and dimensional stability, ideal for optical and magnetic encoders in industrial, automotive, and aerospace applications.

Encoder Discs Features

• Ultra-High Precision: Achieves extremely fine slit widths and positional accuracy for high-resolution feedback.

• Burr-Free & Stress-Free: Etching produces clean edges without mechanical stresses that could cause warping or signal noise.

• Complex Patterns: Capable of producing absolute or incremental code patterns, including complex multi-track designs on a single disc.

• Excellent Consistency: Digital tooling ensures every disc in a batch is identical, guaranteeing uniform performance.

• Material Versatility: Available in various metals to suit optical (requiring opaque/transparent contrasts) or magnetic encoder needs.

• Lightweight & Thin: Ideal for high-speed applications due to low inertia.

Encoder Discs Specification

Encoder Discs Applications

• Industrial Automation: Servo motors, robotics, CNC machines, and precision actuators.

• Medical Devices: Imaging equipment, surgical robots, pumps, and analyzers.

• Optical & Scientific Instruments: Encoders in telescopes, spectrometers, and lab equipment.

• Aerospace & Defense: Guidance systems, actuators, and navigation instruments.

• Consumer Electronics: High-end printers, scanners, and precision instruments.

Our Advantages

• Speed for Prototypes & Production: Unmatched rapid turnaround from design to finished parts, ideal for R&D and urgent orders.

• True High-Precision Capability: Expertise in achieving the demanding tolerances (<0.03mm) required for high-resolution encoders.

• No Tool Wear, Consistent Results: Photochemical etching uses digital tooling, eliminating variability and ensuring batch-to-batch consistency.

• Handles Complex Designs Easily: Intricate, multi-track patterns are as straightforward as simple ones, with no added cost for complexity.

• Material Sourcing & Expertise: Reliable access to various specialty metals and experience in selecting the optimal material for your application.

• Volume Flexibility: Efficiently handles both low-volume prototype requests and very high-volume production runs.

Easy to order! Welcome to Contact us at any time!
