Custom Precision Etched Encoder Disc for Optical Rotary Encoders
Custom Precision Etched Encoder Disc for Optical Rotary Encoders
Custom Precision Etched Encoder Disc for Optical Rotary Encoders
Custom Precision Etched Encoder Disc for Optical Rotary Encoders
Specifications
Product Name :
Optical Encoder Disc
Etching Method :
Photo Chemical Etching
MOQ :
10
Delivery Time :
5-10 work days
Materials :
Stainless steel or customized
Model Number :
Customize Metal
Application :
Servo / CNC / Robotics
Supply Ability :
10000-100000PCD / week
Shape :
As client's request
Brand Name :
XHS/Customize
Resolution :
Custom PPR
Payment Terms :
T/T
Tolerance :
±0.01mm
Price :
50-100USD
OEM :
available
Certification :
ISO 9001, ISO 14001, IATF 16949
Lead Time :
1-2 weeks
Place of Origin :
Customize
Industry :
Motion Control
Packaging Details :
PE bags and Carton
Description

Custom Precision Etched Encoder Disc for Optical Rotary Encoders



Precision Etched Encoder Discs Manufacturer

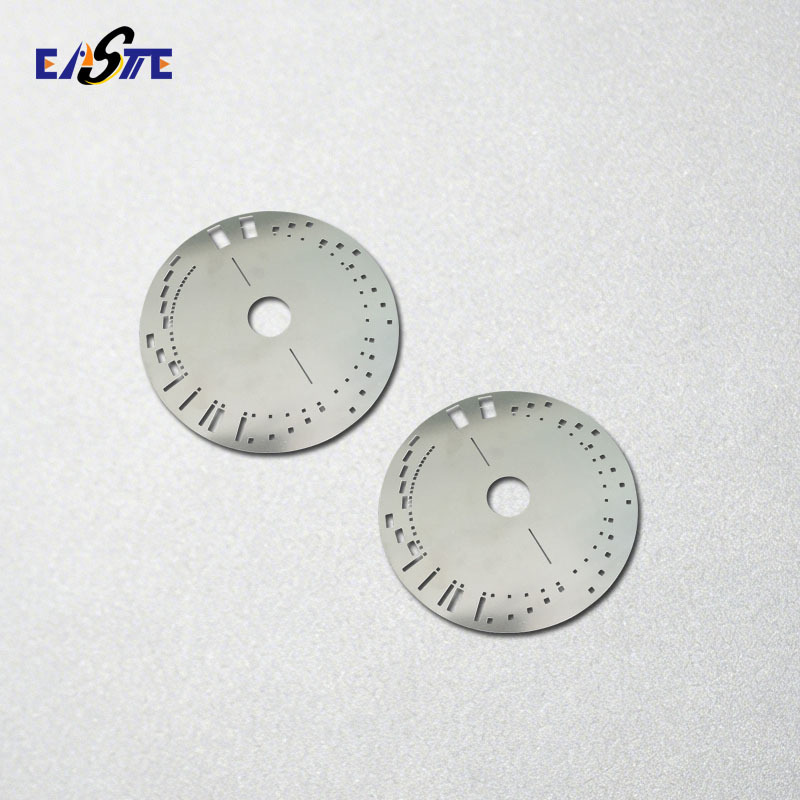

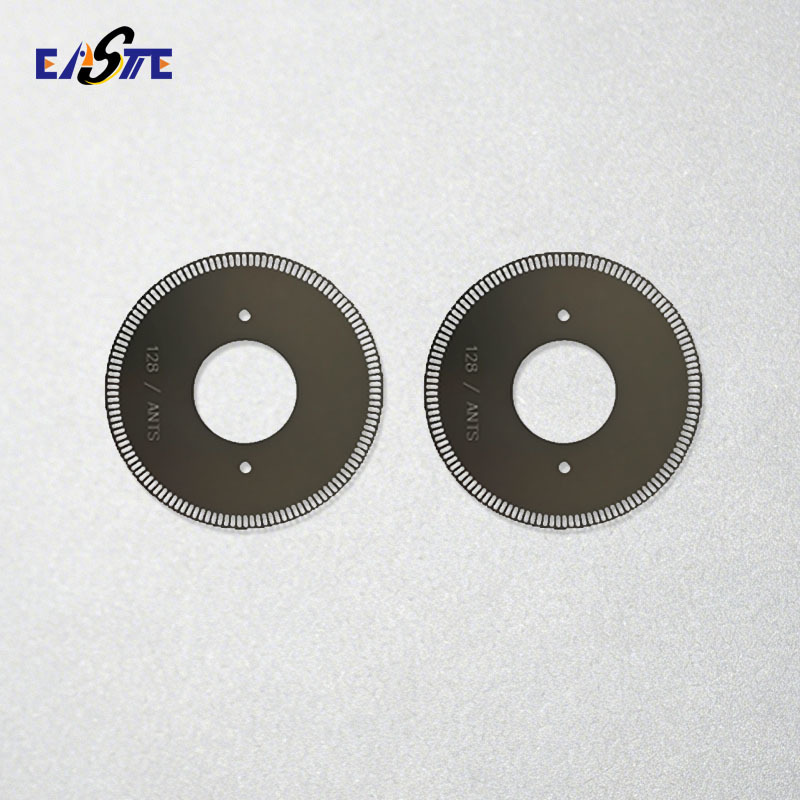

Xinhaisen manufactures high-precision etched encoder discs using advanced photo chemical etching technology. Our encoder discs feature extremely fine slot patterns, smooth edges, and excellent dimensional consistency, making them ideal for optical encoders, rotary encoders, motion control systems, and industrial automation equipment.

Unlike stamping or laser cutting, chemical etching produces burr-free and stress-free encoder discs without affecting material properties, ensuring reliable optical signal transmission and long-term performance.


Precision Etched Encoder Discs are critical components used in optical encoder systems to provide accurate position, speed and angle feedback. Manufactured using advanced Photo Chemical Etching (PCM) technology, these encoder discs feature burr-free edges, ultra-fine line patterns and exceptional dimensional accuracy without thermal distortion.


These precision metal encoder discs are widely used in industrial automation, robotics, CNC equipment, servo motors, semiconductor manufacturing equipment, medical devices, aerospace systems and high-precision motion control applications.


Encoder Discs Overview
Xinhaisen Technology specializes in manufacturing high-accuracy chemically etched encoder discs for motion control systems. Our precision etching technology produces code wheels with exceptional pattern accuracy and dimensional stability, ideal for optical and magnetic encoders in industrial, automotive, and aerospace applications.

Encoder Discs Features
1.Ultra-High Precision: Capable of producing extremely fine lines and micro-holes.
2.Burr-Free & Stress-Free: The etching process eliminates mechanical stresses and burrs, ensuring smooth edges and accurate performance.
3.No Material Hardness Change: Unlike stamping or laser cutting, etching does not affect the base metal's temper or magnetic properties.
4.Rapid Prototyping & Production: Fast turnaround from design to mass production.
5.Material Versatility: Can be etched from various alloys.
  • Photo Chemical Etched Encoder Disc
  • Burr-Free Precision Manufacturing
  • Ultra Fine Line Patterns
  • No Heat Affected Zone
  • High Dimensional Accuracy
  • Stress-Free Processing
  • Excellent Flatness
  • Custom Diameters and Code Patterns
  • OEM & ODM Manufacturing
  • Prototype and Mass Production Available


Encoder Discs Specifications

Product Name optical encoder disc
Material Stainless Steel 304 / 316 / Nickel
Thickness 0.02-1.0 mm
Tolerance ±0.005 mm
Min Line Width 0.01 mm
Application Rotary Encoder
Process Photo Chemical Etching
OEM Available


Custom Precision Etched Encoder Disc for Optical Rotary Encoders

Custom Precision Etched Encoder Disc for Optical Rotary Encoders

Applications

Optical encoder discs are commonly used in:

Industrial Automation

Robotics

Medical Devices

Semiconductor Equipment

Precision Positioning Systems


Why Choose Xinhaisen?

  • Unmatched Speed: We offer rapid response and fast turnaround times, from prototyping to bulk orders.

  • High-Quality Standards: Rigorous quality control ensures every batch meets your exact specifications.

  • Volume Flexibility: We are equipped to handle both urgent small batches and massive production runs efficiently.

  • Technical Expertise: Deep knowledge of etching various metals to achieve the perfect balance of sharpness, flexibility, and corrosion resistance.

Custom Precision Etched Encoder Disc for Optical Rotary Encoders

Custom Precision Etched Encoder Disc for Optical Rotary Encoders


Welcome to contact us at any time!


Send your message to this supplier
Send Now

Custom Precision Etched Encoder Disc for Optical Rotary Encoders

Ask Latest Price
Watch Video
Product Detail
Product Name :
Optical Encoder Disc
Etching Method :
Photo Chemical Etching
MOQ :
10
Delivery Time :
5-10 work days
Materials :
Stainless steel or customized
Model Number :
Customize Metal
Contact Supplier
video
Custom Precision Etched Encoder Disc for Optical Rotary Encoders
Custom Precision Etched Encoder Disc for Optical Rotary Encoders

Shenzhen Xinhaisen Technology Limited

Verified Supplier
2 Years
guangdong, shenzhen
Since 2012
Business Type :
Manufacturer, Exporter
Main Products :
Photo Chemical Machining, Metal Chemical Etching, Metal Etching Service
Total Annual :
4000000-6000000
Employee Number :
260~300
Certification Level :
Verified Supplier
