Specifications
Place of Origin :
Jiangsu, China
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
2 years
Core Components :
PLC, Engine, Bearing, Motor, Gear
Brand Name :
Geekung
Machine Type :
Rubber Injection Machine
Voltage :
220V/380V/415V/440V/480V
Dimension(L*W*H) :
2275X1705 X2900
Weight :
8000
Warranty :
1 Year
Key Selling Points :
Famous brand PLC
Showroom Location :
Turkey
Applicable Industries :
Manufacturing Plant
Press :
silicone rubber injection molding machine
Power(W) :
5.5kw
After-sales Service Provided :
Field installation, commissioning and training
After Warranty Service :
Video technical support
Certification :
CE,ISO
Marketing Type :
New Product 2020
Packaging Details :
plastic film packed in container
Port :
Shanghai
Supply Ability :
10 Set/Sets per Month
Price :
$25,000.00/sets >=1 sets
Payment Terms :
T/T
Description

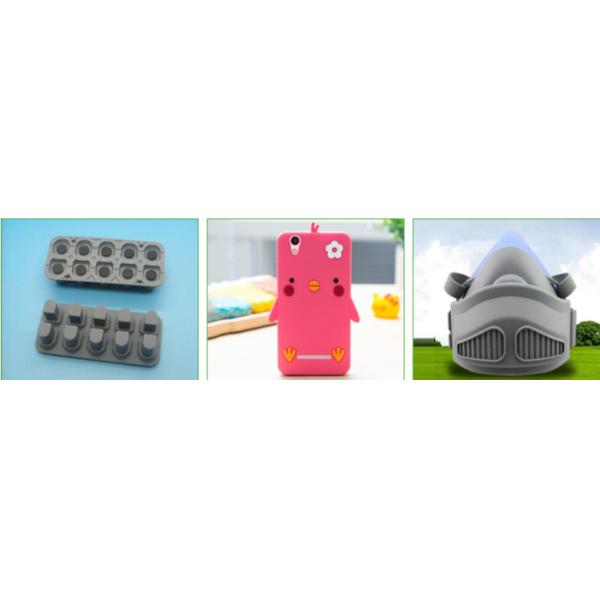

Used in producing below products....

Video Technical Support for Liquid Silicone Rubber Injection Molding Machine AfterMachine detail discription:Video Technical Support for Liquid Silicone Rubber Injection Molding Machine After

Specification

Specification:
Model
JC-RH50-250CC
JC-RH65-250CC
JC-RH200-1000CC(A)
JC-RH200-1000CC(B)
JC-RH260-1500CC
JC-RH300(A)
JC-RH300(B)
Shot Voolume
C.C
300
300
(1000)~1500
(1000)~1500
(1500)~2000
(2000)~3000
(2000)~3000
Injection pressure
Kg/cm2
1700-1800
1700-1800
1700-1800
1700-1800
1700-1800
1700-1800
1700-1800
Lnjection Hydraulic
pressure
Kg/cm2
150
150
150-160
150-160
150-160
150-160
150-160
Screw Diameter
mm
32
32
45
45
45
50
50
Screw Speed
Rpm/min
0-120
0-120
0-120
0-120
0-120
0-120
0-120
Material Size
mm
10×30
10×30
12×50
12×50
12×50
15×60
15×60
Clamping Force
TON
60
60
200
200
260
300
300
Piston Stroke
mm
360
370
460
460
580
510
510
Plate Size
mm
350×380
290×320
480×500
550×620
520×580
650×730
550×650
Space Between
Tie Bar
mm
445
390
575
675
645
790
690
Piston Diameter
mm
180
200
356
356
406
430
430
Motor
kw
5.5
5.5
11
11
15
18.5
18.5
Heating Capacity
kw
7.2
7.2
13.6
13.6
16
19
18
Thermal Oil Pump
hp
1/2×1
1/2×1
1/2×2
1/2×2
1/2×2
1/2×2
1/2×2
System Pressure
Kg/cm2
210
210
210
210
210
210
210
Machine Dimensions
mm
2275×1705
×2900
2135×1240
×2870
3610×2000
×3730
2275×2095
×3715
2750×2130
×3780
2900×2355
×4400
3000×2345
×4470
Machine Weight
kg
2300
2200
5800
6500
6800
8500
7500
Notes: the form only list out the normal standard model, more special models can be customized to order.
